___________________________________RAH / PAH Ka_________________________________

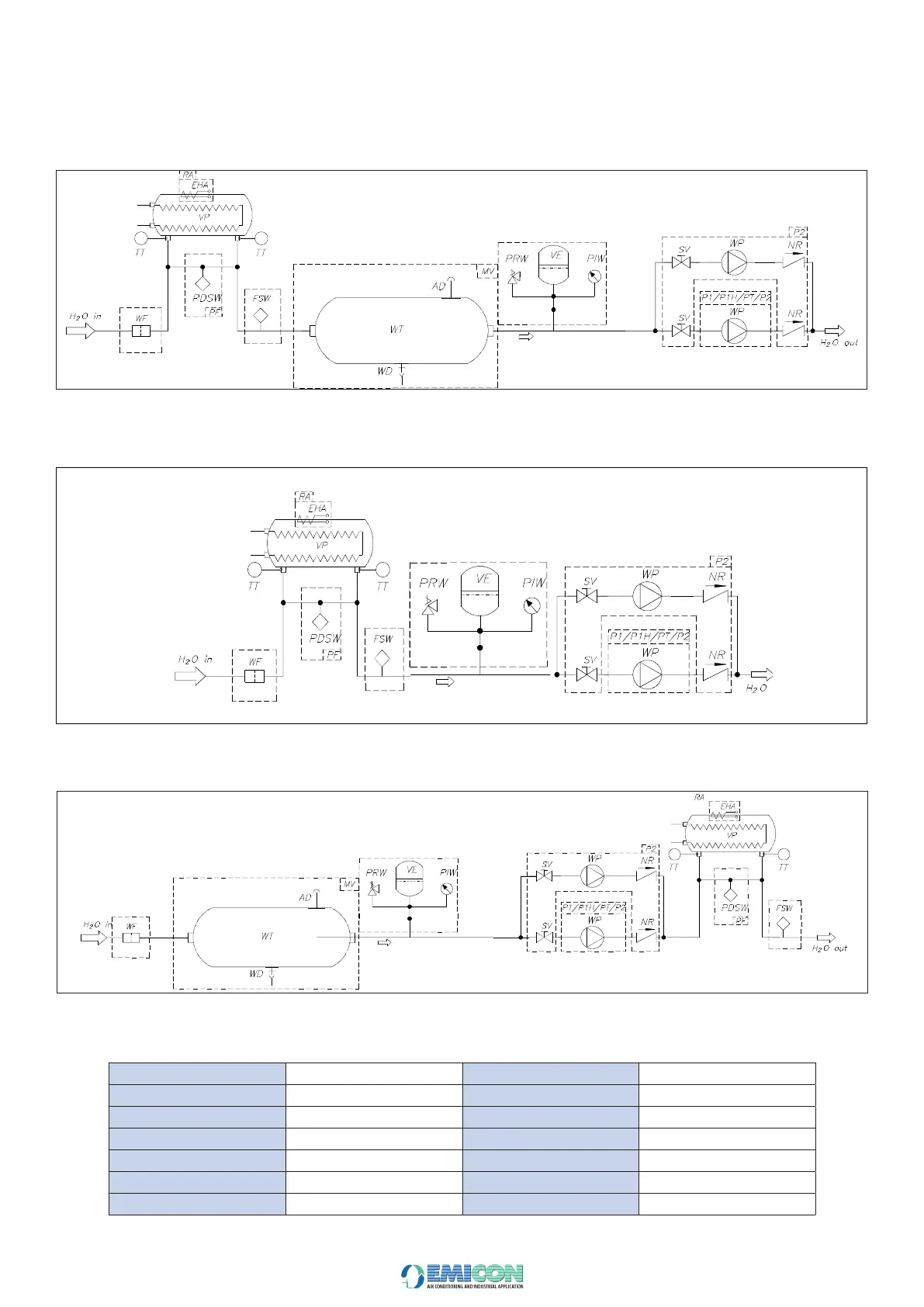

AVAILABLECONFIGURATIONSOFTHEONBOARDHYDRAULICKIT
HYDRONIC CIRCUIT WITH SINGLE PUMP OR PUMPS IN PARALLEL DOWNSTREAM THE BUFFERTANK AND GAS/WATER EXCHANGER (OPTION)
HYDRONIC CIRCUIT WITH SINGLE PUMP OR PUMPS IN PARALLEL DOWNSTREAM WATER/GAS EXCHANGER (OPTION)
HYDRONIC CIRCUIT WITH GAS/WATER EXCHANGER DOWNSTREAM SINGLE PUMP GROUP OR PUMPS IN PARALLEL AND BUFFER TANK (OPTION)
LEGEND
EHA  PDSW 
WF  FSW 
TT  WT 
WD  AD 
PRW  VE 
PTW  SV 
WP  NR 
