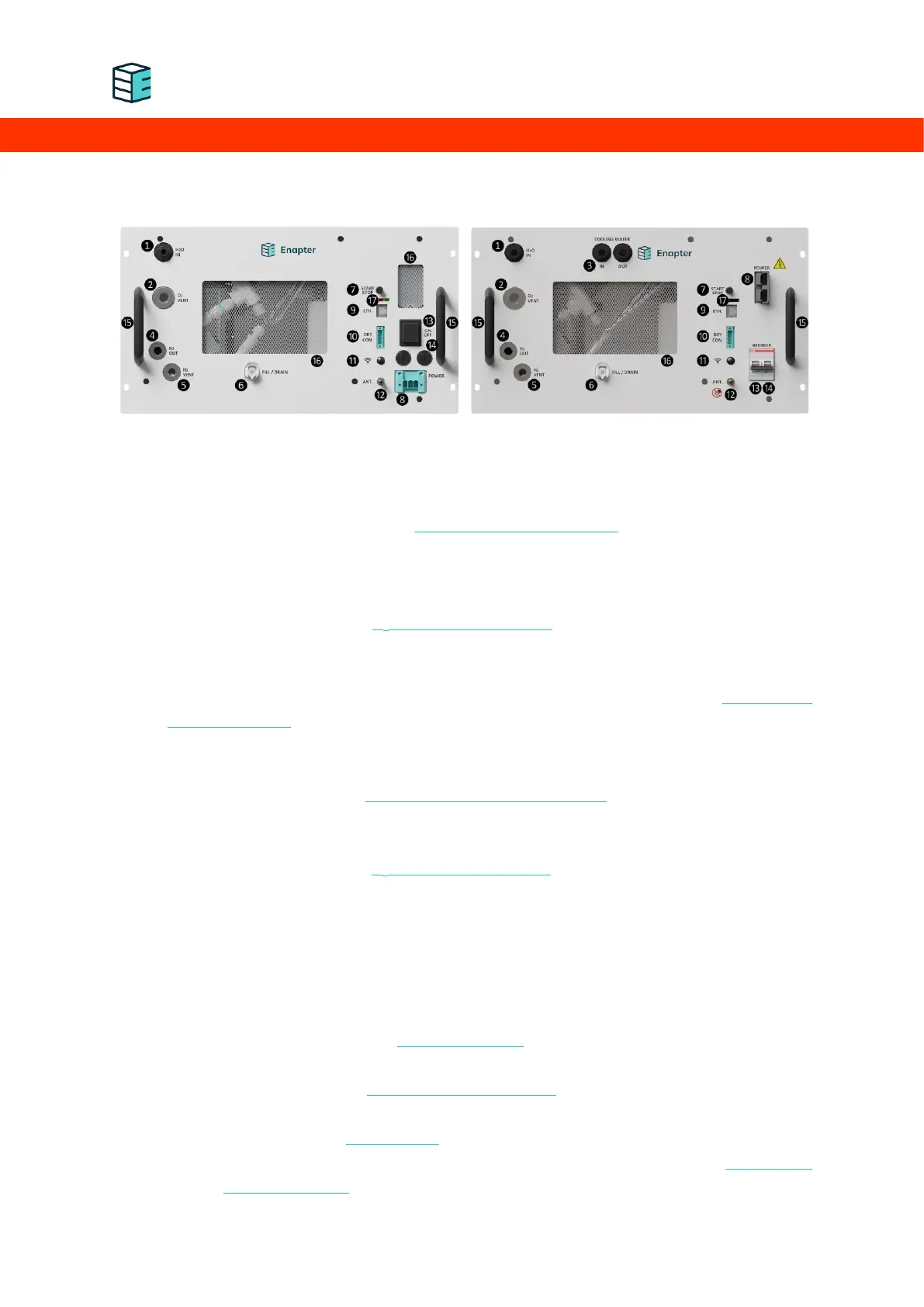

1.2 FRONT PANEL
EL4.0 AC air cooled front side
EL4.0 DC liquid cooled front side
The front panel of the electrolyser includes all physical connections of the device.
1. H
2
O IN – please refer to the section Water Inlet Connection Guide
 Push-fit female bulkhead connector (10 mm outer diameter pipes)
 Input: Filtered water input with a conductivity < 20 µS/cm at 25°C, input pressure
between 1 and 4 bar
2. O
2
VENT – please refer to the O
2
Vent Connection Guide
 ⅜" bspp female port
 Output: O
2
with water vapour (H
2
O) and traces of H
2
3. COOLING WATER IN/OUT – (only liquid cooled electrolysers) please refer to the Cooling Loop
Connection Guide
 Push-fit female bulkhead connector (10mm outer diameter pipes)
 Input/Output: cooling water to cool down the device
4. H
2
OUT – please refer to the Hydrogen Outlet Connection Guide
 ¼" bspp female port
 Output: 500 NL/hr of H
2
, up to 35 barg, 99,9% purity
5. H
2
VENT – please refer to the H
2
Vent Connection Guide
 ¼" bspp female port
 Output: Periodical vent of up to 20 NL (H
2
and water) every 12 hours
6. FILL / DRAIN
 CPC quick connector 10 mm
 During maintenance routine for filling the electrolyte into the device or for draining
and preparing it for transport.
7. START STOP – please refer to the Manual Start/Stop section below
 Manual start and stop button to start and stop the device
8. POWER – please refer to the Electrical Connection Guide
 Manual power button to switch device on and off
9. ETH. – please refer to the Ethernet Port section below
 Interface to access external Modbus control features of the electrolyser. Find more in
the chapter below.
