Ender 3 Neo - Circuit Wiring Diagram

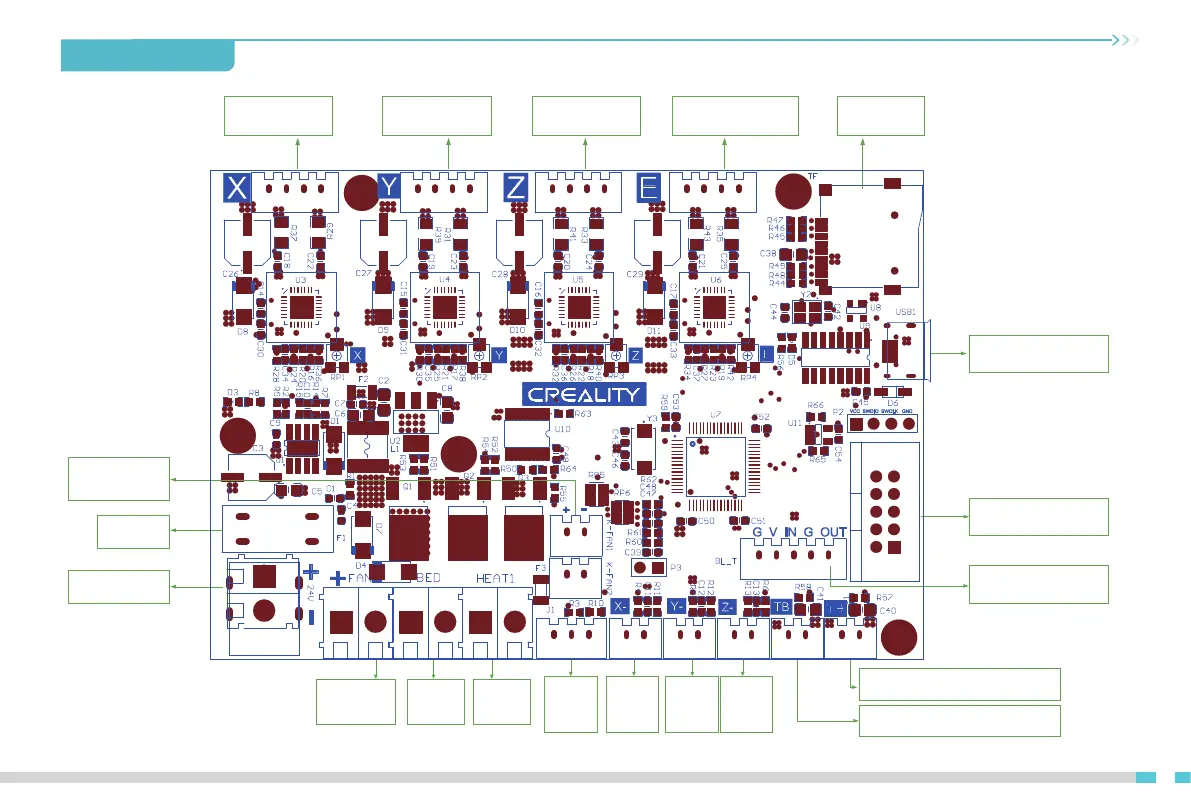

10.Circuit Wiring
21
X-Axis Motor Port
Controllable
fan port
Fuse
Power input jack
NO fan port
Cable port
for heated
Cable port
Filament
detection
port
X-axis
Limit
Y-axis
Limit
Z-axis
Limit
Y-Axis Motor Port Z-Axis Motor Port
Extrusion Motor
Port
TF card slot
Micro USB interface
Display port
CR-touch port
Printhead thermistor interface
Heated bed thermistor interface
