Cerabar M Analog Wiring
Endress+Hauser 23
4.2 Connecting the measuring unit
4.2.1 Supply voltage
Taking 4 to 20 mA test signal
A 4 to 20 mA test signal may be measured via the test terminals without interrupting the
measurement. To keep the corresponding measured error below 0.1 %, the current measuring
device should exhibit an internal resistance of < 0.7 .
4.2.2 Cable specification
• Endress+Hauser recommends using twisted, shielded two-wire cables.
• Terminals for wire cross-sections 0.5 to 2.5 mm
2
(20 to 14 AWG)
• Cable outer diameter: 5 to 9 mm (0.2 to 0.35 in) depends on the used cable gland (see technical
information)

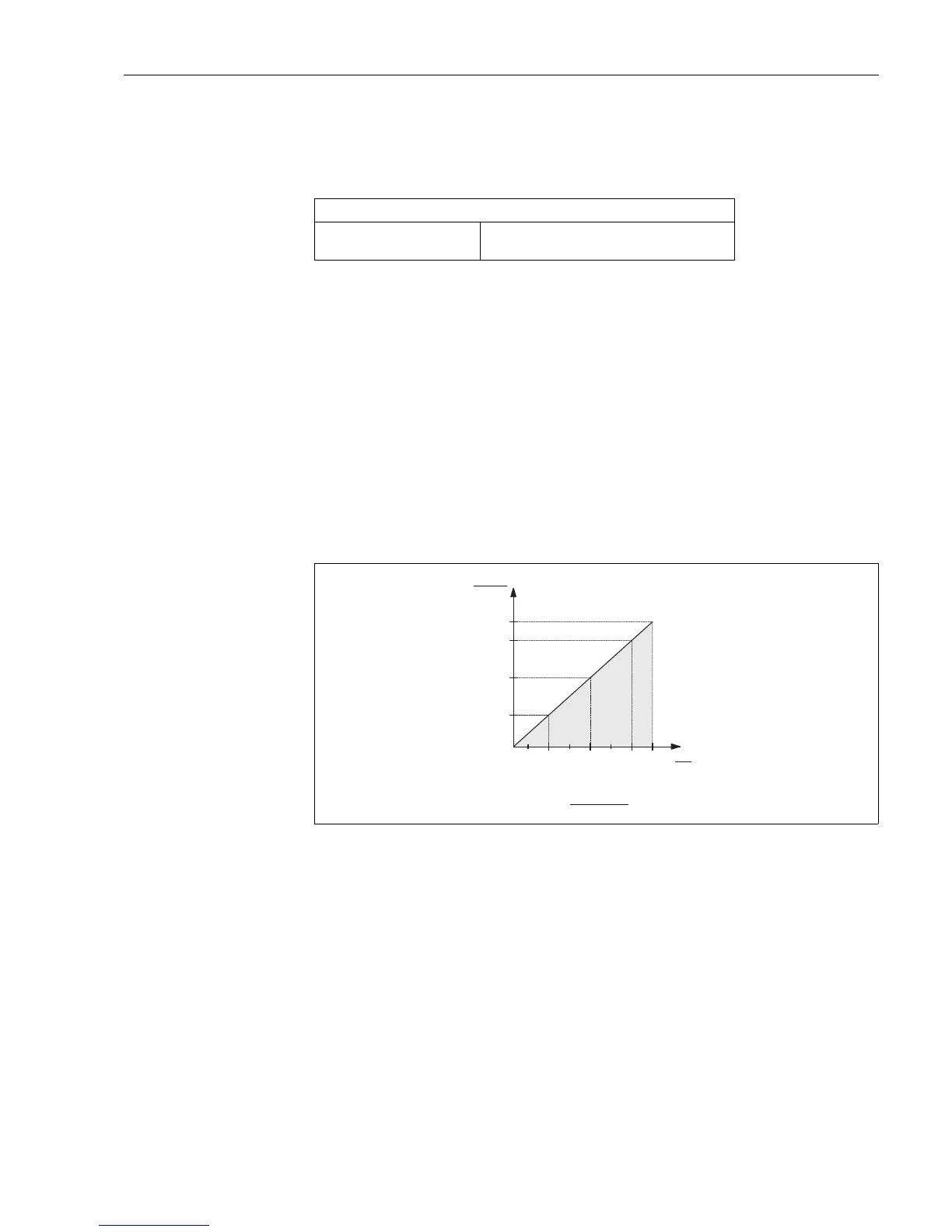

4.2.3 Load
P01-xxxxxxxx-05-xx-xx-xx-003
Load diagram
Power supply 11.5 to 45 V DC (versions with plug connectors: 35 V DC) for other types of protection and for uncertified
device versions
R
Lmax
Maximum load resistance
U Supply voltage
4.2.4 Shielding/potential equalization
You achieve optimum shielding against disturbances if the shielding is connected on both sides (in
the cabinet and on the device). If potential equalization currents are expected in the plant, only
ground shielding on one side, preferably at the transmitter.
4.3 Potential equalization
Observe the applicable regulations.
Electronic version
4 to 20 mA 11.5 to 45 V DC
(Versions with plug-in connectors: 35 V DC)
30
20
11.5
U
[V]
40 45
1239
1456
804
369
[]W
R
L
max
U – 11.5 V
R
L
max
0.023A
£

Endress+Hauser Cerabar M PMC51? Cerabar M PMP51 Specifications

General

Type	Cerabar M PMC51 / PMP51
Measuring Principle	Piezoresistive
Measured Variable	Pressure
Output Signal	4...20 mA HART, PROFIBUS PA, Foundation Fieldbus
Power Supply	10.5 to 45 V DC (HART), 9 to 32 V DC (PROFIBUS PA, FOUNDATION Fieldbus)
Process Temperature	-40 to +85 °C (-40 to +185 °F)
Ambient Temperature	-40 to +85 °C (-40 to +185 °F)
Housing Material	Aluminum, stainless steel
Diaphragm Material	Stainless steel
Process Connection	Threaded, flanged, sanitary
Protection Class	IP66
Material	Diaphragm: 316L
Approvals	ATEX, IECEx, SIL, FM, CSA
Communication	HART, PROFIBUS PA, Foundation Fieldbus
