Endress+Hauser Cerabar M PMC51? Cerabar M PMP51 User Manual

Operation Cerabar M Analog
26 Endress+Hauser
5Operation
5.1 Position of operating elements
The operating keys and DIP switch are located on the electronic insert in the device.
5.1.1 Function of the DIP switch
P01-Mxxxxxxx-19-xx-xx-xx-010

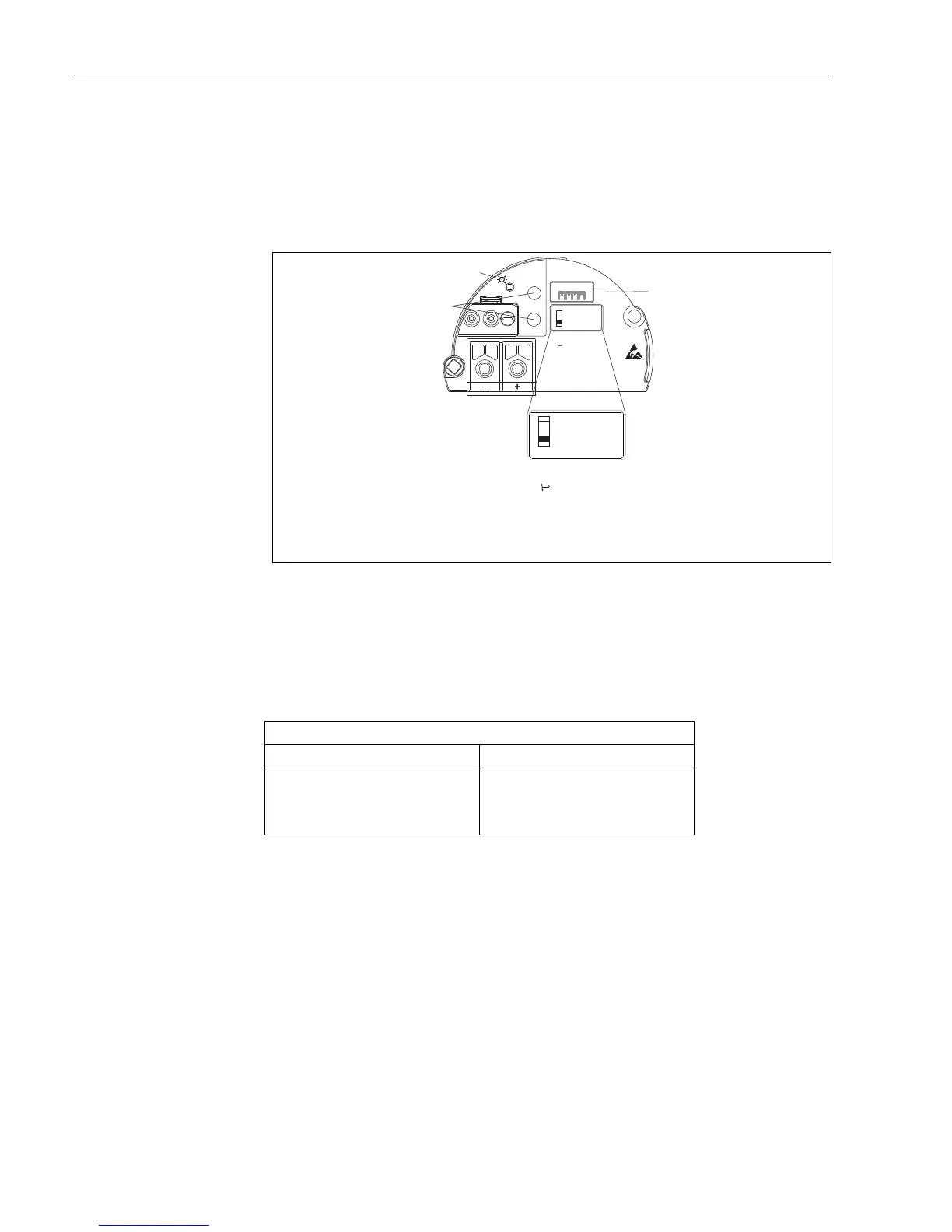

Fig. 18: Electronic insert
1 Operating keys for lower range value (zero) and upper range value (span)
2 Green LED to indicate successful operation
3 Slot for optional local display
4 DIP switch for switching damping on/off
Switch position
"off" "on"
Damping is switched off.
The output signal follows measured value
changes without any delay.
Damping is switched on.
The output signal follows measured value
changes with the delay time Factory
setting: = 2 s or as per order specifications).
➂
➁
on
off
damping
1
➃
➀
on
off
Display
Zero
Span
damping

Endress+Hauser Cerabar M PMC51? Cerabar M PMP51 Specifications

General

Type	Cerabar M PMC51 / PMP51
Measuring Principle	Piezoresistive
Measured Variable	Pressure
Output Signal	4...20 mA HART, PROFIBUS PA, Foundation Fieldbus
Power Supply	10.5 to 45 V DC (HART), 9 to 32 V DC (PROFIBUS PA, FOUNDATION Fieldbus)
Process Temperature	-40 to +85 °C (-40 to +185 °F)
Ambient Temperature	-40 to +85 °C (-40 to +185 °F)
Housing Material	Aluminum, stainless steel
Diaphragm Material	Stainless steel
Process Connection	Threaded, flanged, sanitary
Protection Class	IP66
Material	Diaphragm: 316L
Approvals	ATEX, IECEx, SIL, FM, CSA
Communication	HART, PROFIBUS PA, Foundation Fieldbus
