Parameter description (Local operation and FieldCare) Cerabar S/Deltabar S/Deltapilot S FOUNDATION Fieldbus
178 Endress+Hauser
P01-xMx7xxxx-19-xx-xx-en-010

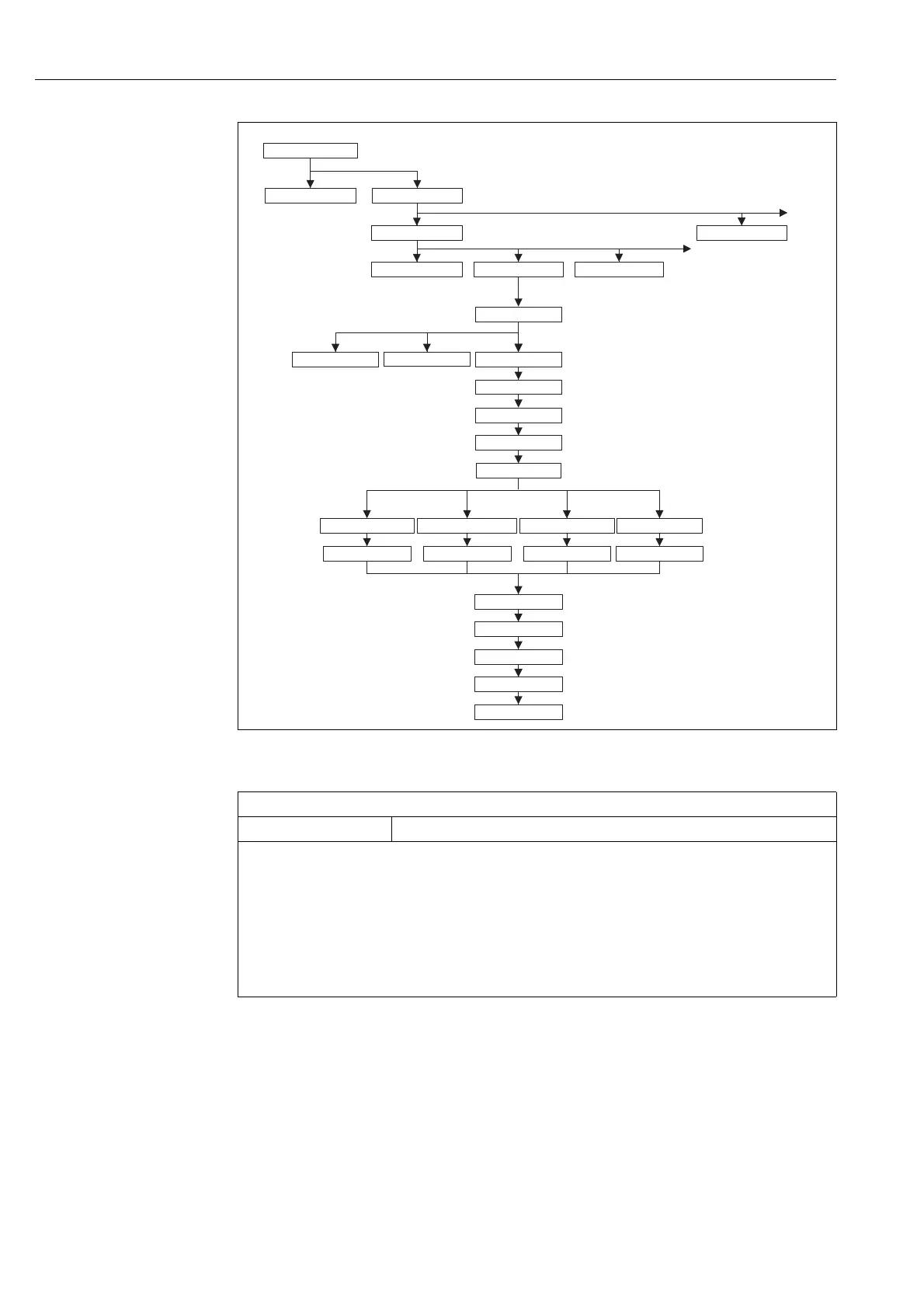

Fig. 50: BASIC SETUP function group for the "Flow" measuring mode
*
*
*
*
*
Vol. std. cond.
Volume p. cond.
Vol. norm cond.Mass
DAMPING VALUE
MAXFLOW
MAX. PRESS.FLOW
CUST. UNIT. FACT. F
CUSTOMER UNIT F.
UNIT FLOW NORM FLOW UNIT STD.FLOW UNIT MASS FLOW UNIT
Parameters marked with an asterisk "*"
are not always displayed.Thedisplay
depends on the settings of other parameters,
see the following Table.
Flow
Pressure
Level
PRESS. ENG. UNIT
CUSTOMER UNIT P
CUST. UNIT FACT. P
LEVEL MODE
MEASURING MODE
MEASURED VALUE
QUICK SETUP
BASICSETUP
DISPLAYSETTINGS
POSITION ADJUSTMENT
OPERATING MENU
EXTENDED SETUP
Table 14: OPERATING MENU → SETTINGS → BASIC SETUP "Flow"
Parameter name Description
Prerequisite:
• MEASURING MODE = Flow
Note:
See also
– → ä 140, Table 5: QUICK SETUP "Flow"
– → ä 185, Table 17: OPERATING MENU → SETTINGS → EXTENDED SETUP "Flow"
– → ä 192, Table 20: OPERATING MENU → SETTINGS → TOTALIZER SETUP
– → ä 202, Table 29: OPERATING MENU → PROCESSINFO → PROCESS VALUES "Flow"
– → ä 129 ff, Section 10 "Flow measurement (via local operation and FieldCare)".
