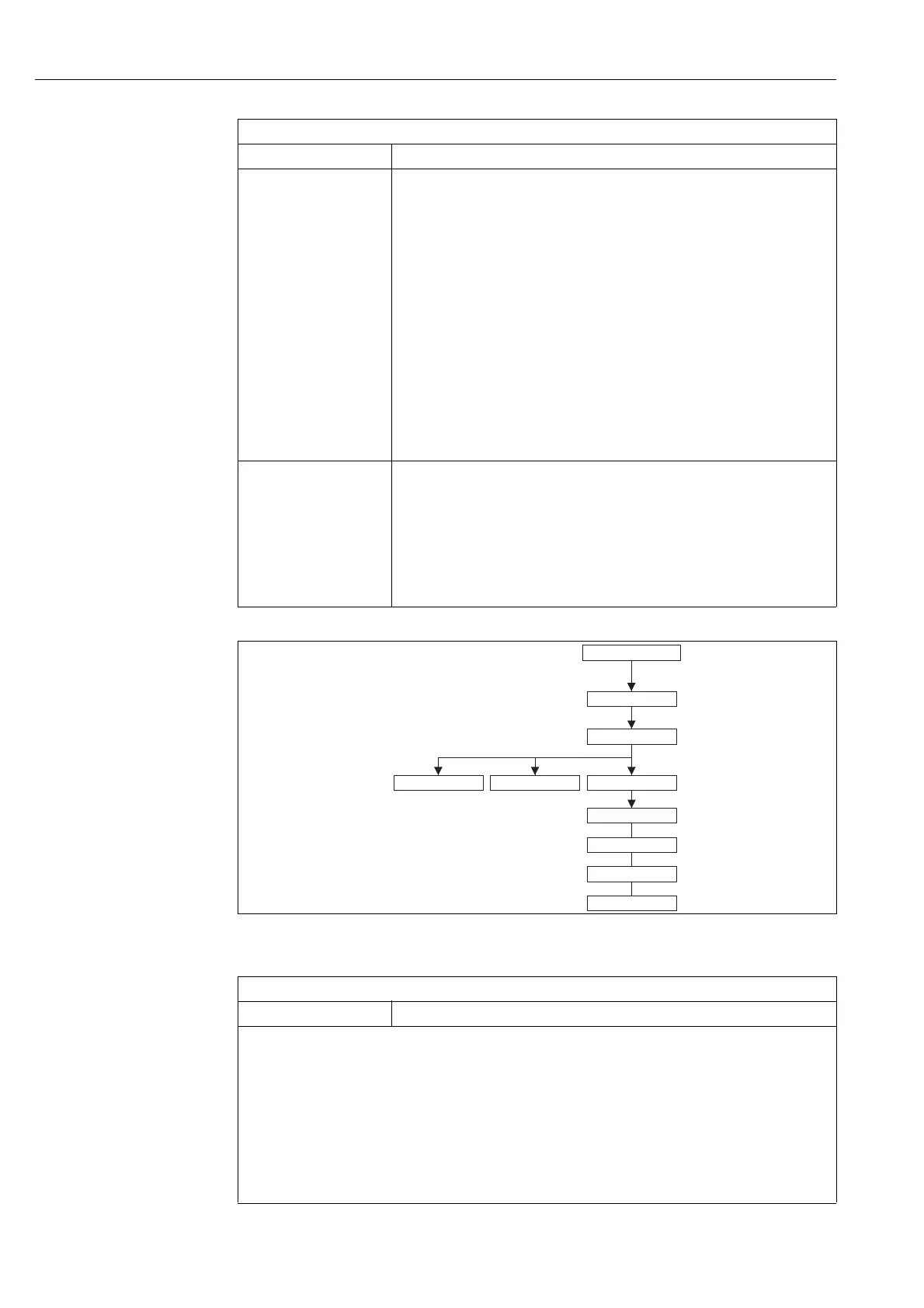

Fig. 39: Quick Setup menu, "Flow" measuring mode (differential pressure transmitter Deltabar S only)
FULL CALIB. (315)/(004)
Entry
Enter the level value for the upper calibration point (container full).
The container is either completely or almost full. By entering a value for this parameter,
you are assigning a level value to the pressure present at the device.
Prerequisite:
• LEVEL SELECTION = Level easy pressure (→ ä 135),
CALIBRATION MODE = Wet (→ ä 148)
• LEVEL SELECTION = Level standard (→ ä 135),
LEVEL MODE= Linear (→ ä 156),
CALIBRATION MODE = Wet (→ ä 161)
!
Note!
For this parameter, the local operation shows the level value to be entered and the
pressure present at the device. In order for the level value to be saved together with the
pressure present at the device, the entry field for the level value must first be activated
using the "+"- or "–" key before confirming with the "E" key. This applies also if the level
value is to remain unchanged.
Factory setting:
100.0
DAMPING VALUE (247)
Entry
Enter damping time (time constant τ).
The damping affects the speed at which all subsequent elements, such as the local
operation, measured value and OUT value of the Analog Input Block react to a change in
the pressure.
Input range:
0.0 to 999.0 s
Factory setting:
2.0 s or as per order specifications
Table 4: QUICK SETUP "Level"
Parameter name Description
MAXFLOW
MAX. PRESS.FLOW
POS. ZERO ADJUST
DAMPING VALUE
Flow
Pressure
Level
MEASURED VALUE
QUICK SETUP
MEASURING MODE
Table 5: QUICK SETUP "Flow"
Parameter name Description
This menu displays the most important parameters for the "Flow" measuring mode.
Prerequisite:
• Deltabar S differential pressure transmitter
• MEASURING MODE = Flow
Note:
See also
– → ä 178 ff, Table 14: OPERATING MENU → SETTINGS → BASIC SETUP "Flow"
– → ä 185 ff, Table 17: OPERATING MENU → SETTINGS → EXTENDED SETUP "Flow"
– → ä 192 ff, Table 20: OPERATING MENU → SETTINGS → TOTALIZER SETUP
– → ä 129 ff, Section 10 "Flow measurement (via local operation and FieldCare)".
