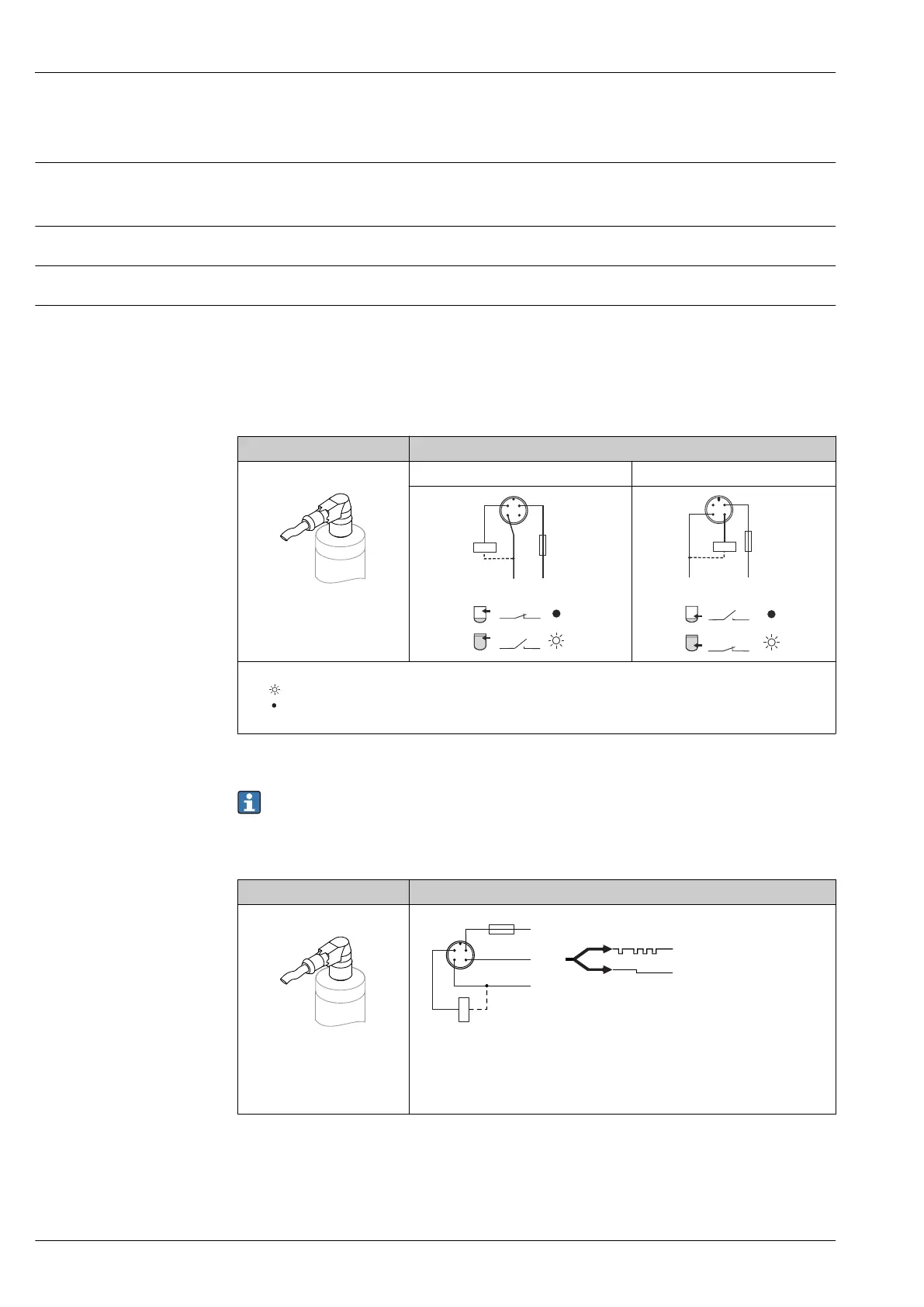

Power supply
Supply voltage
12 to 30 V DC
IO-Link communication is guaranteed only if the supply voltage is at least 18 V.
Power consumption
< 1.2 W (at max. load:200 mA)
Current consumption
< 20 mA
Electrical connection
Voltage source: Non-hazardous contact voltage or Class 2 circuit (North America). The device must
be operated with a fine-wire fuse 500 mA (slow-blow).
Depending on the evaluation of the switch outputs, the device works in the MAX (maximum point
level detection) or MIN (minimum point level detection) modes.
M12 plug
Electrical connection Mode of operation
M12 plug MAX MIN
0.5A
L– L+
2
1
3
4
K
0.5A
L–
L+
2
1
3
4
K
1
21
2
1
41
4
Symbols
K
Description
Yellow LED (ye) lit
Yellow LED (ye) not lit
External load
Devices with IO-Link
• IO-Link: Communication on C/Q1; switch mode on Q2.
• SIO mode: If there is no communication, the device switches to the SIO mode = standard IO
mode.
The factory-set functions for the MAX and MIN modes can be changed via IO-Link.
Electrical connection IO-Link with one switch output
1)
M12 plug
L–
L+
C/Q1
2
1
3
4
SIO
IO-Link
0.5 A
K1
Q2
A0034411
1 Supply voltage +
2 DC-PNP (Q2)
3 Supply voltage -
4 C/Q1 (IO-Link communication or SIO mode)
1) Product Configurator, order code for "Power supply; output", option 7
