Nivector FTI26
Endress+Hauser 13

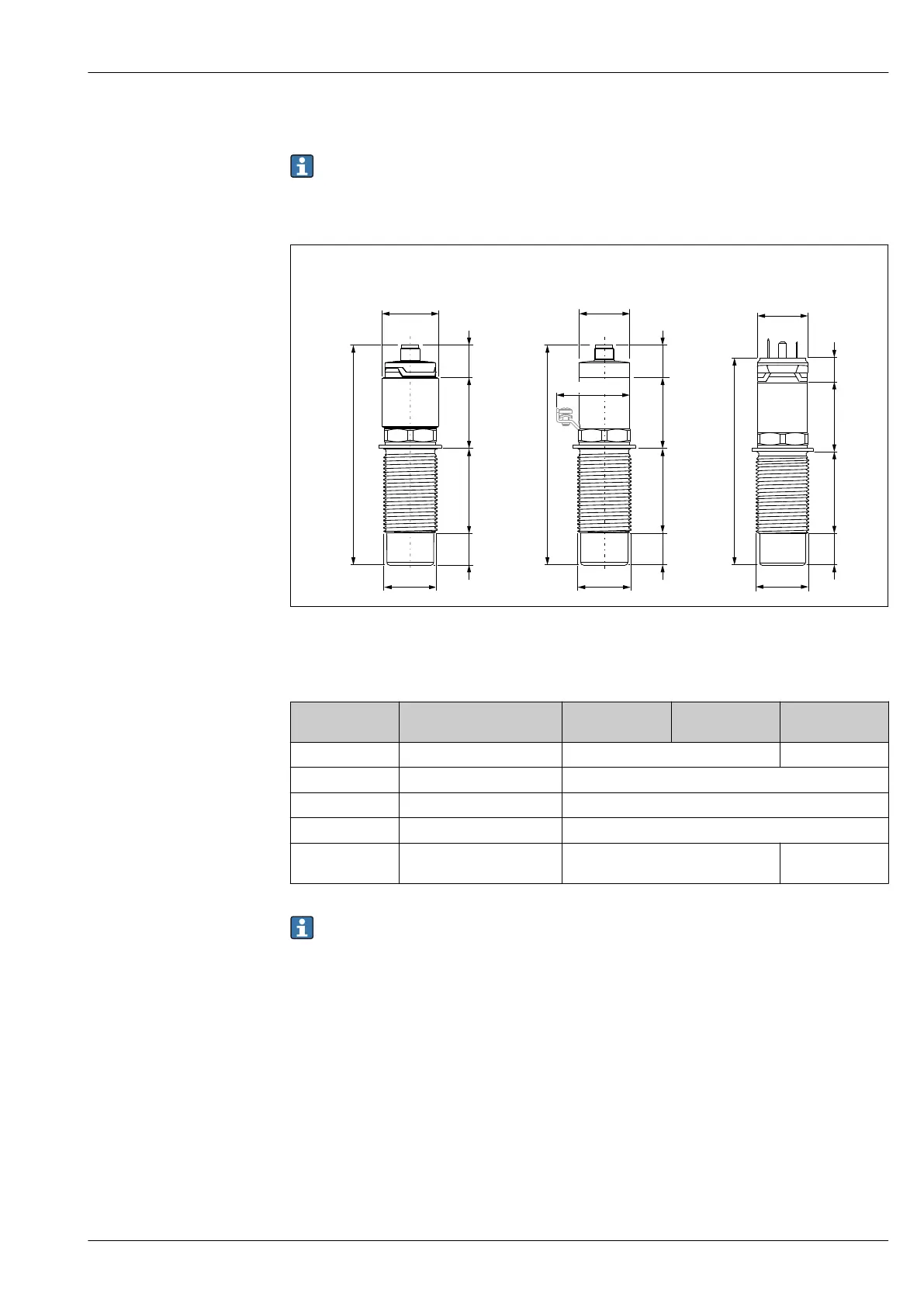

Mechanical construction
Exact dimensions are available in the Product Configurator on the Endress+Hauser website:
www.endress.com → Product finder → On the product page, click the "Configure" button to the
right of the product photo.
Engineering unit mm (in)
A
B C
H1
H2
H3
H4
H5
!35
(1.38)
G1"G1"
H5
H1
H2
H3
H4
H1
H2
H3
H4
G1"
H5
!31.5
(1.24)
!31.5
(1.24)
42.5 (1.7)
A0036387
A Nivector FTI26 plastic with M12 plug
B Nivector FTI26 stainless steel with M12 plug, with optional ground terminal
C Nivector FTI26 stainless steel with valve plug
Height
measurement
Designation A B C
H1 Housing cover 20.5 (0.81) 16 (0.36)
H2 Housing 43.6 (1.72)
H3 Process connection 52 (2.05)
H4 Sensor 20 (0.79)
H5 Nivector FTI26 overall
dimensions
136 (5.35) 131.2 (5.17)
Additional accessories for hygiene sector and hazardous areas: weld-in adapter G 1", Tri-Clamp
2", protection cover→ 19
