Nivector FTI26
Endress+Hauser 9
Installation
Mounting location
Lateral mounting in bulk solids silos, indoors or outdoors, e. g. in silo
For installation in metallic or non-metallic bulk solids silos, follow the EMC
guidelines→  11.

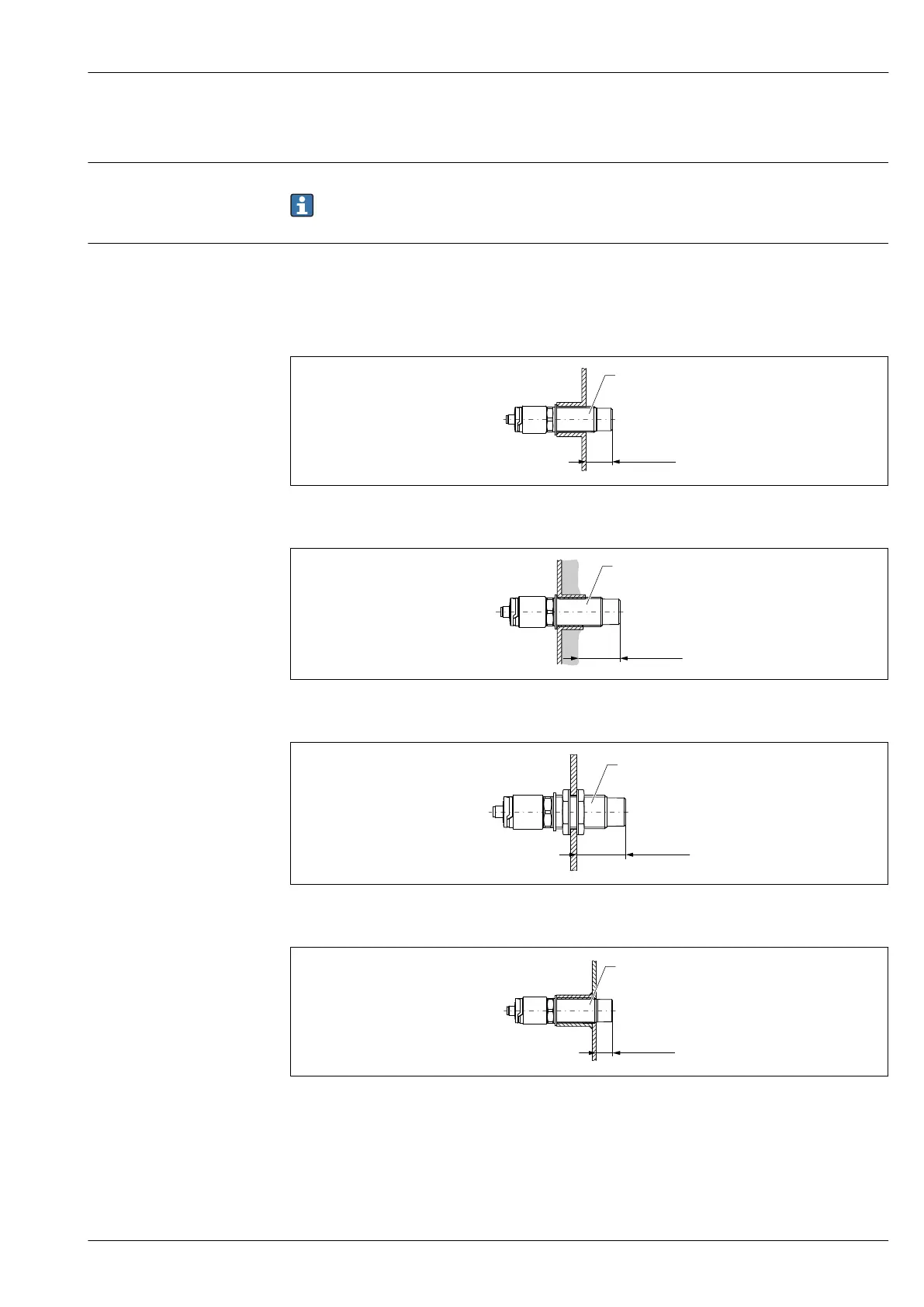

Installation instructions
• Engineering unit mm (in)
• Sensor surface ≥ 20 mm (0.79 in) projecting into silo (when installing with weld-in adapter
20 mm (0.79 in)
• Silo wall thickness < 35 mm (1.38 in) or welding socket G 1" < 50 mm (1.97)
Examples
≥20 (0.8)
G 1"
A0035881
 2 Standard installation with external G 1" threaded adapter
≥20 (0.8)
G 1"
A0036360
 3 Where buildup occurs on the silo wall with internal G 1" threaded adapter
≥20 (0.8)
G 1"
A0036359
 4 Bore hole in silo wall with lock nuts, can be ordered as an accessory →  19
14 (0.55)
G 1"
A0036362
 5 Installation with weld-in adapter, can be ordered as an accessory →  19
