Proservo NMS81
Endress+Hauser 15
Measuring system
• From single tank level measurement to the largest oil refinery applications, Endress+Hauser tank
gauging devices are an integral part of tank farm management solutions. A wide variety of data
output protocols are available for seamless integration into many commonly used systems.
• A primary example is Tankvision from Endress+Hauser. Tankvision is a scalable system offering
local tank management for multiple loops via Modbus or V1 protocols. Accumulated data is
available to DCS and other plant management systems via a Host Link.
NXA820
NXA820
NXA820
NXA820
8
9
10
12
7
1
2
23 3 5 2 3
4 6
8
13
11
15
14
A0027700

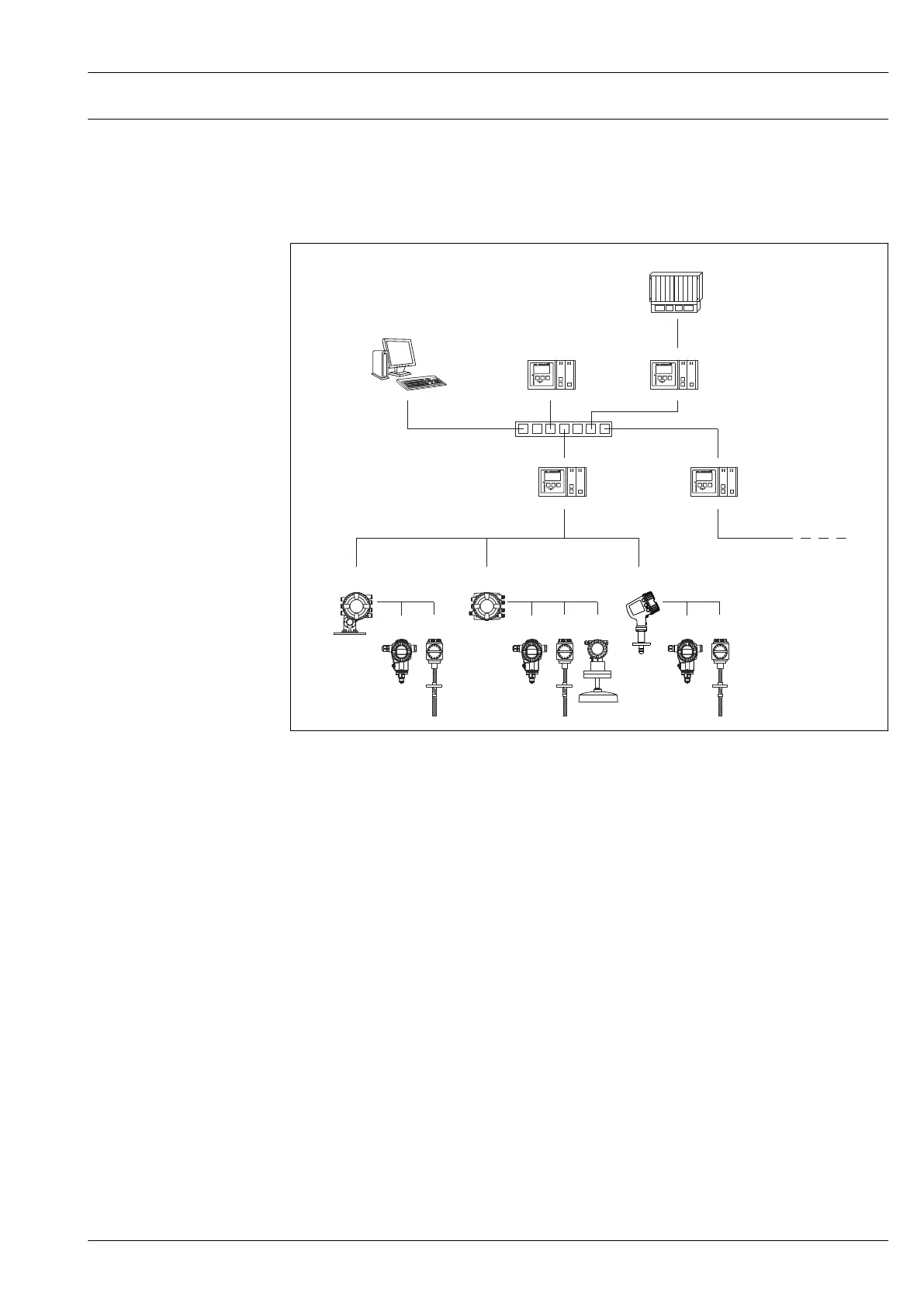

6 Integration of tank gauging devices into an inventory management system (typical example)
1 Proservo NMS8x
2 Pressure transmitter (e.g. Cerabar)
3 Temperature transmitter (e.g. Prothermo)
4 Tankside Monitor NRF81
5 Micropilot S FMR5xx
6 Micropilot NMR8x
7 Field protocol (e.g. Modbus, V1)
8 Tankvision Tank Scanner NXA820
9 Ethernet
10 Ethernet switch
11 Internet Browser
12 Tankvision Data Concentrator NXA821
13 Tankvision Host Link NXA822
14 Modbus
15 DCS or PLC
