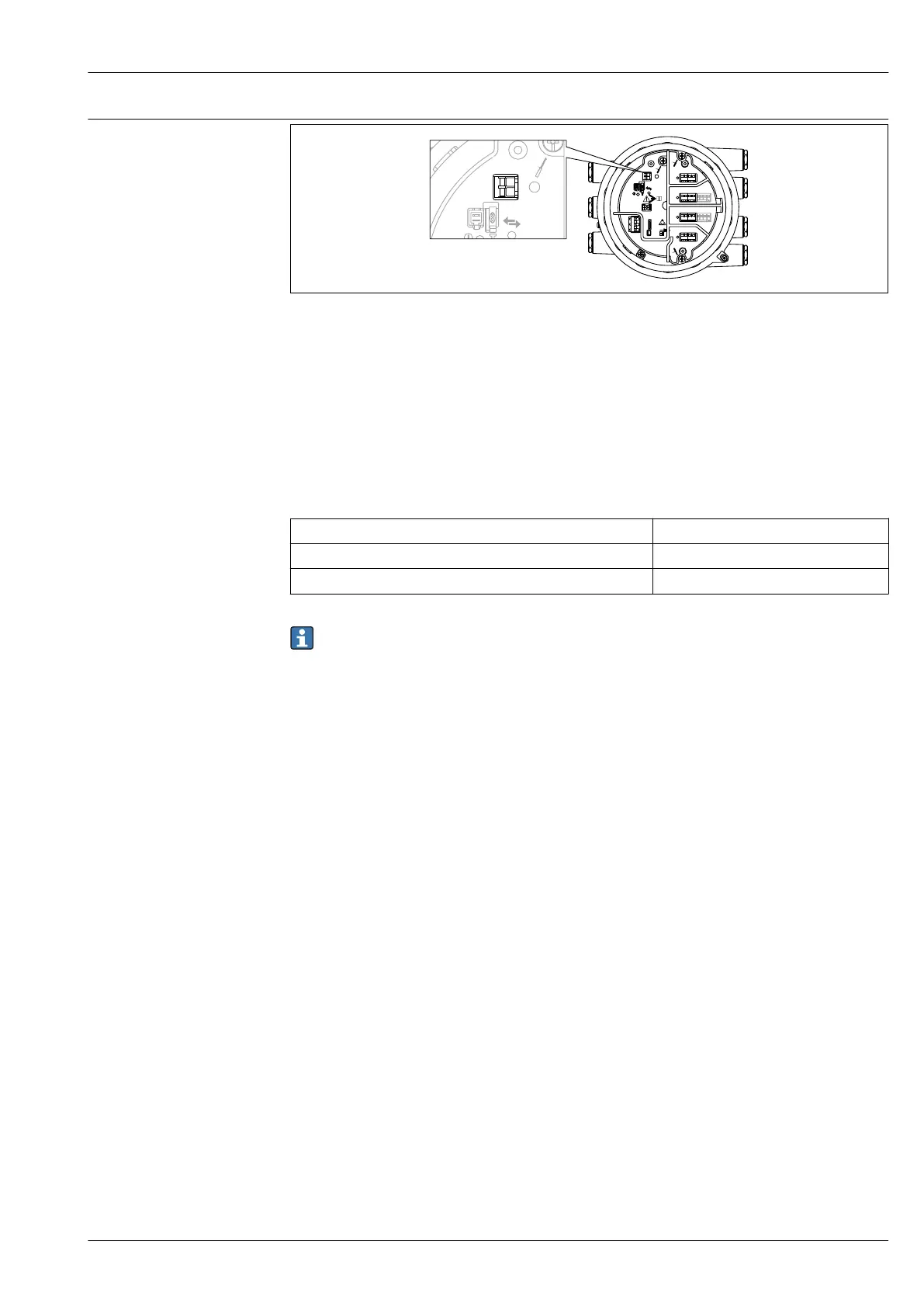

 7 HART Ex ia/IS active input
E1 HART +
E2 HART -
The device has a HART Ex ia/IS active input. Additional features are provided if the following
Endress+Hauser devices are connected:
Prothermo NMT
The measured level is transmitted to the Prothermo. Prothermo uses this level to calculate the
average temperature of the product.
Technical data
Transmitter power supply voltage 23.0 V - 380 Ω ⋅ I
load
Maximum load 500 Ω including signal line
Maximum current of all connected devices 24 mA
The HART Ex ia/IS active input is available by default. It needs not to be chosen explicitly when
ordering a device.
