Endress+Hauser RIA15 - Operation; Operating Functions

Operation RIA15
32 Endress+Hauser
7 Operation
1
2
3
4
5
6
7
8
A0017719

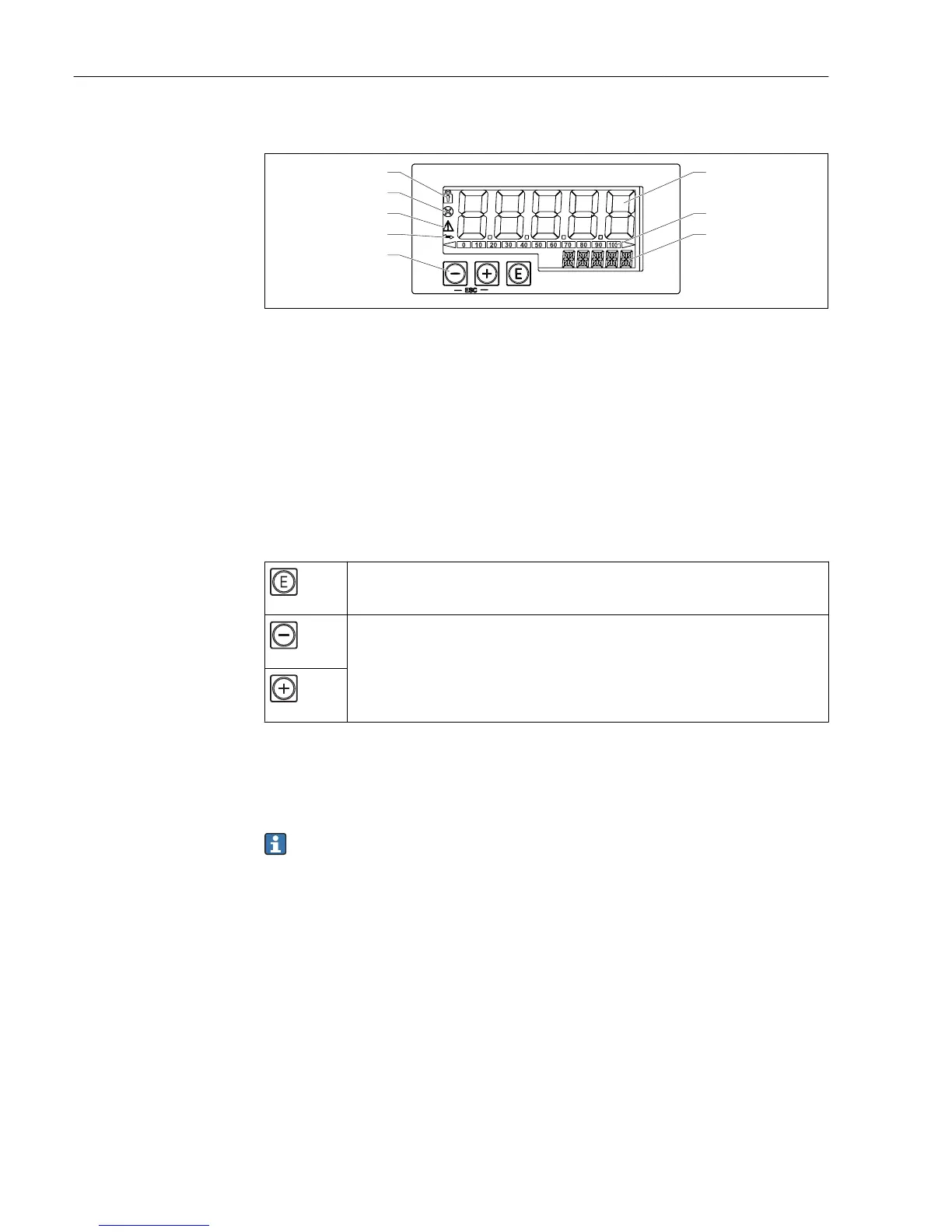

 15 Display and operating elements of the process display unit
1 Symbol: operating menu disabled
2 Symbol: error
3 Symbol: warning
4
Symbol: HART
®
communication active
5 Operating keys "-", "+", "E"
6 14-segment display for unit/TAG
7 Bar graph with indicators for under range and over range
8 5-digit 7-segment display for measured value, digit height 17 mm (0.67 in)
The device is operated using three operating keys on the front of the housing. The device
setup can be disabled with a 4-digit user code. If the setup is disabled, a padlock symbol
appears on the display when an operating parameter is selected.
A0017716
Enter key; calling up the operating menu, confirming the option/setting parameters in the
operating menu
A0017714
Selecting and setting/changing values in the operating menu; pressing the '-' and '+' keys
simultaneously takes the user back up a menu level. The configured value is not saved.
A0017715
7.1 Operating functions
The operating functions of the process display unit are divided into the following menus.
The individual parameters and settings are described in the "Commissioning" section.
If the operating menu is disabled by means of a user code, the individual menus and
parameters can be displayed but not changed. To change a parameter, the user code
must be entered. As the display unit can only display digits in the 7-segment display
and not alphanumeric characters, the procedure for number parameters is different to
that for text parameters.
If the operating position contains only numbers as parameters, the operating position
is displayed in the 14-segment display and the configured parameter is displayed in
the 7-segment display. To edit, press the 'E'-button followed by the user code.
If the operating position contains text parameters, only the operating position is
initially displayed in the 14-segment display. If the 'E' button is pressed again, the
configured parameter is displayed in the 14-segment display. To edit, press the '+'
button followed by the user code.
