Turbimax CUS71D Installation
Endress+Hauser 7
3 Installation
3.1 Incoming acceptance, transport, storage
• Make sure the packaging is undamaged!
• Inform the supplier about any damage to the packaging.
Keep the damaged packaging until the matter has been settled.
• Make sure the contents are undamaged!
• Inform the supplier about damage to the contents. Keep the damaged products until the matter
has been settled.
• Check that the order is complete and agrees with your shipping documents.
• The packaging material used to store or to transport the product must provide shock protection
and humidity protection. The original packaging offers the best protection. Also, keep to the
approved ambient conditions (see "Technical data").
• If you have any questions, please contact your supplier or your local sales center.

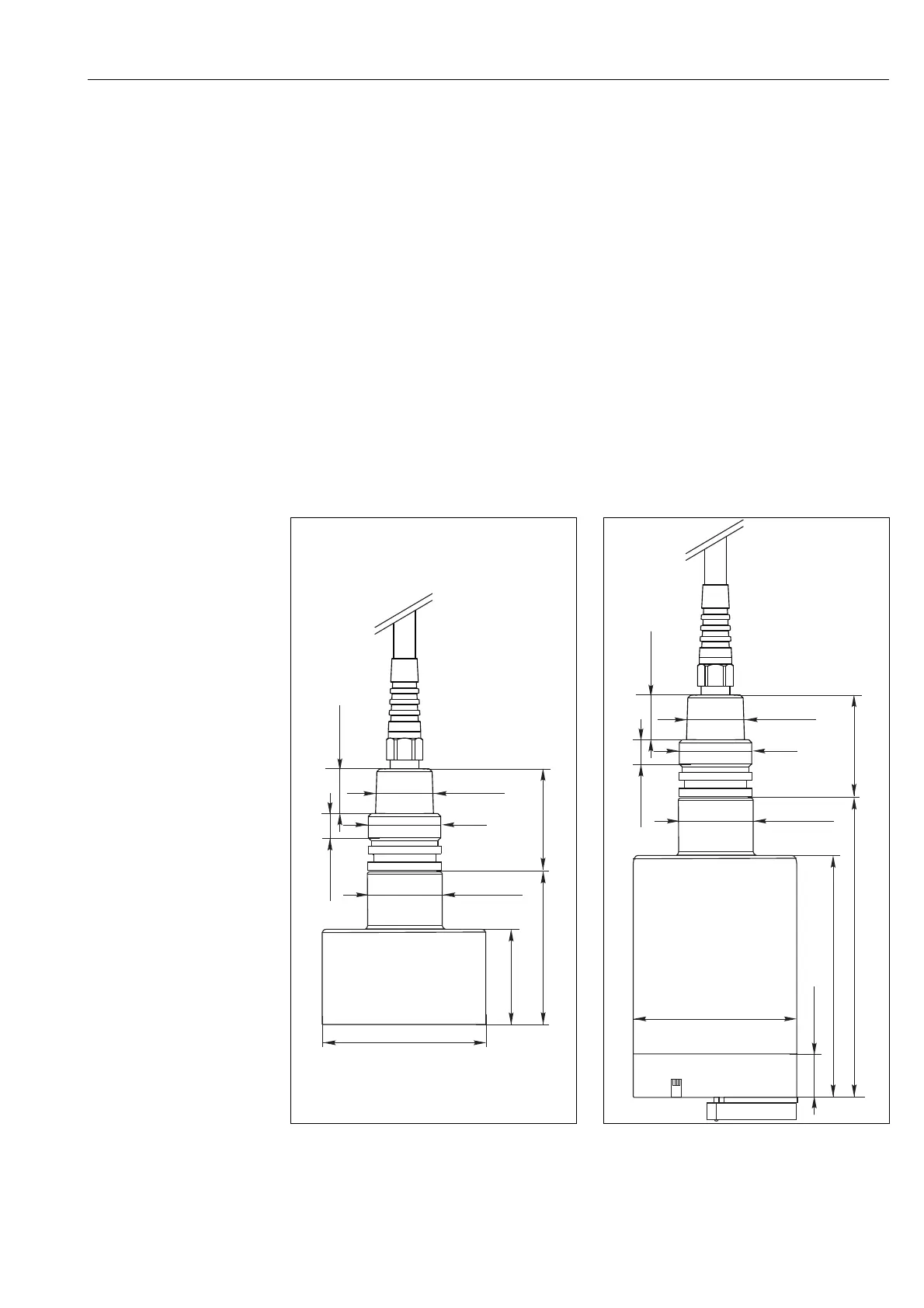

3.2 Dimensions
a0014922
Fig. 1: Dimensions of standard sensor
a0014921
Fig. 2: Dimensions of sensor with wiper
mm (inch)
20 (0.79)
12 (0.47)
NPT 3/4"
G1
74.3 (2.93)
43.3 (1.70)
68.8 (2.71)
34.7 (1.37)
46 (1.81)
mm (inch)
20 (0.79)
12 (0.47)
NPT 3/4"
G1
74.3 (2.93)
110 (4.33)
135.5 (5.33)
34.7 (1.37)
46 (1.81)
19 (0.75)
