Turbimax CUS71D Installation
Endress+Hauser 9

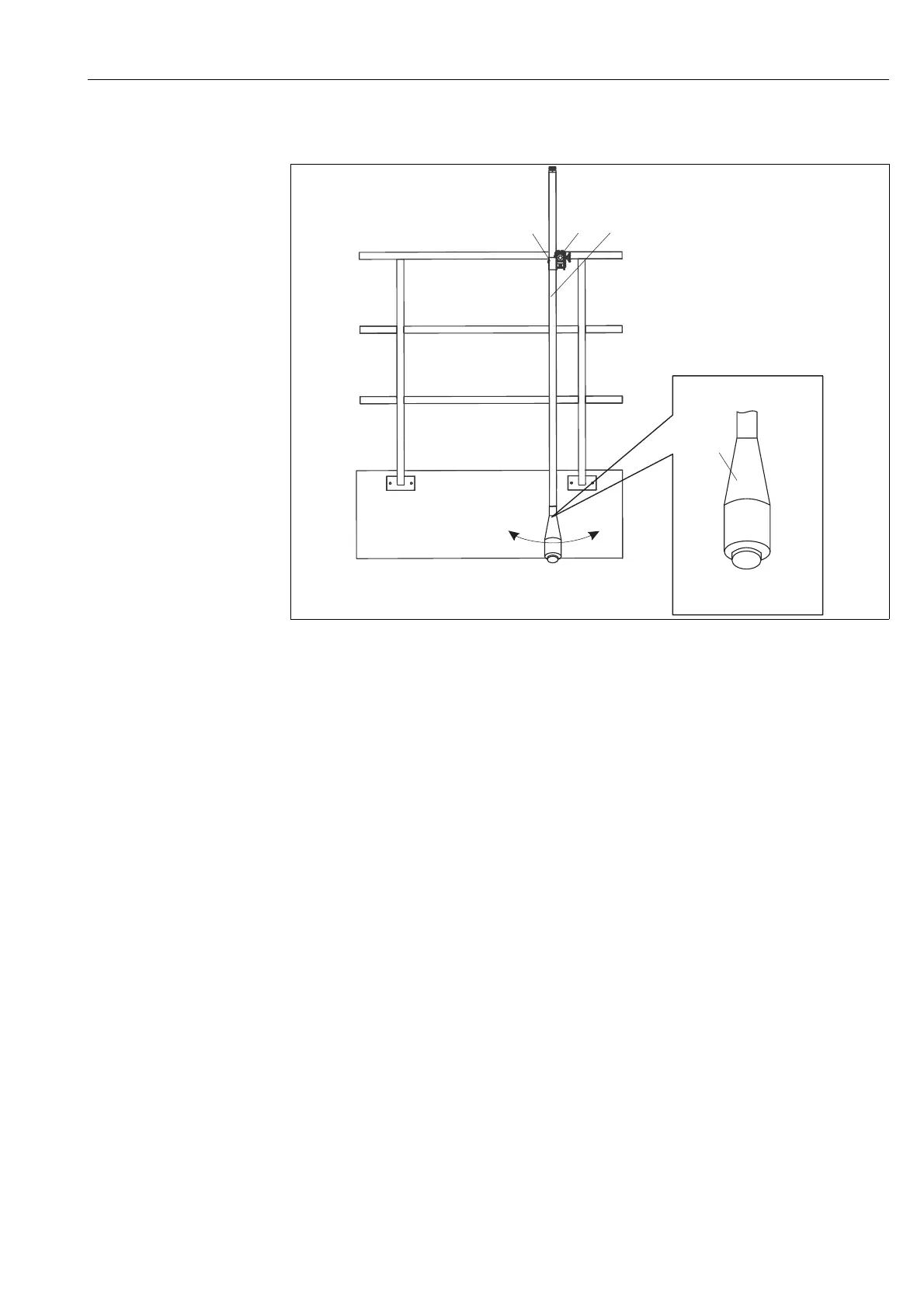

3.3.2 Measuring system with pendulum holder
a0015156
Abb. 4: Measuring system with pendulum holder
The PVC wiper (C-UA 110818-60) protects the ultrasonic sensor from getting damaged by the
surface skimmer.
1
2
3
4
1 Holder system Flexdip CYH112 (cross clamp) 3 Assembly Flexdip CYA112 with CUS71D
2 Holder system Flexdip CYH112 (pendulum holder) 4 PVC wiper (C-UA 100826-61)
