2. Installation and Configuration
2.1 Package Contents
The package contains the following:
PTZ Dome (Dome Camera)
Instruction Manual (This Document)
Modular Cable
Interface Board
Accessory Kit for installing PTZ Dome
Drilling Template

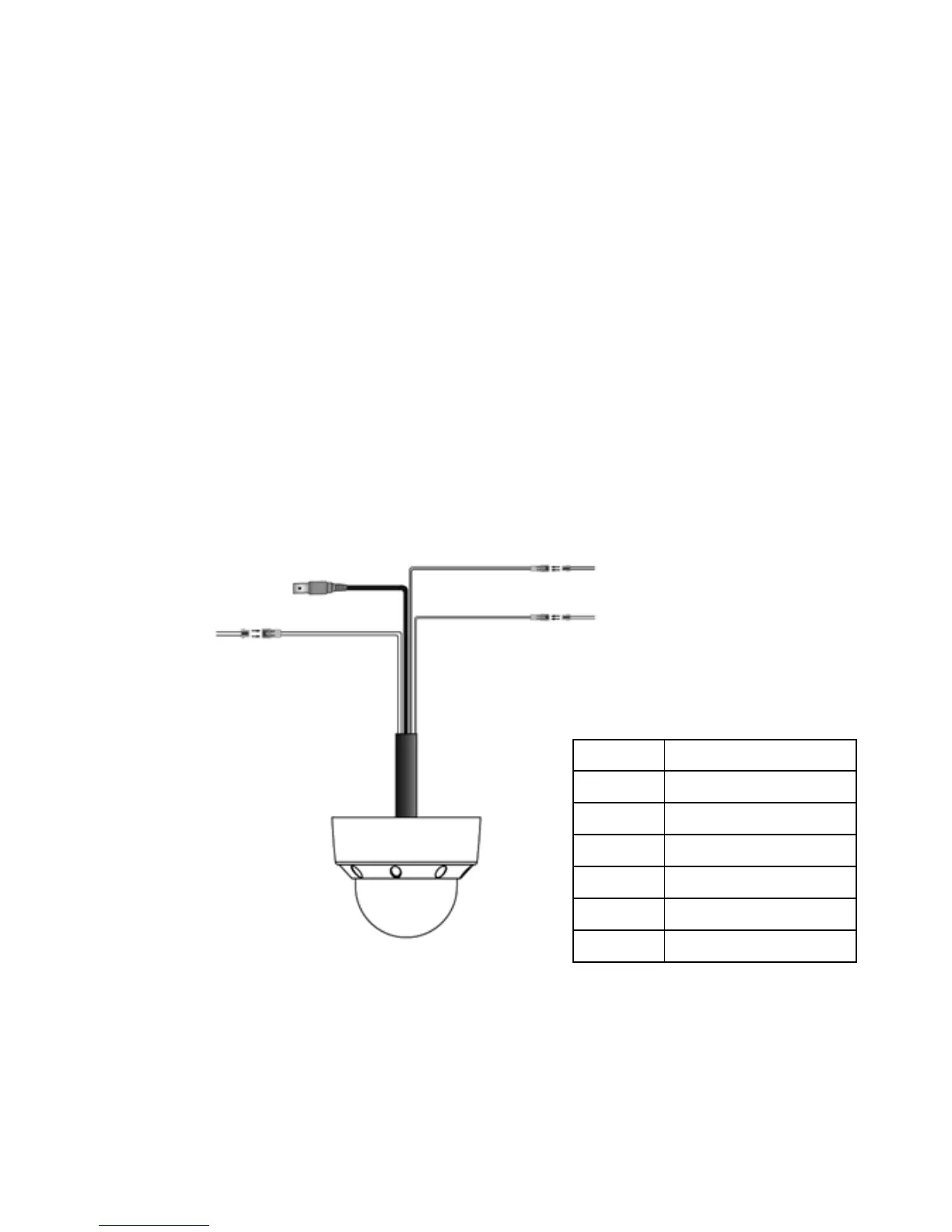

2.2 Base Installation
VIDEO OUT
POWER IN (3P-connector)
24VAC/12VDC
RS-485 (2P-connector)
to RS-485 connecting unit
to Sensor
ALARM IN (2P-connector)
COMPOSITE CABLE
Connection Cable Description
Colour Description
Black 485 (+)
Brown 485 (–)
Red 24VAC / 12VDC
Orange 24VAC / 12VDC
Blue ALARM COMMON
Violet ALARM IN
NOTE: When wiring, note the following:
• For the RS-485, ALARM IN cable, insulate the bare conductor part not to
be exposed after wiring.
• For the video cable, keep the BNC connector (metal part) away from any
other metal material.
