2.3 Heater kit Installation (optional)
• HEATER
Power Supply
24VAC or 12VDC
Power Consumption
Start: 20W; operation: approx. 10W
Heater ON
+5°C
Heater OFF
+15°C
• POWER
Use Certified/Listed Class 2 power supply transformer only.
Heater

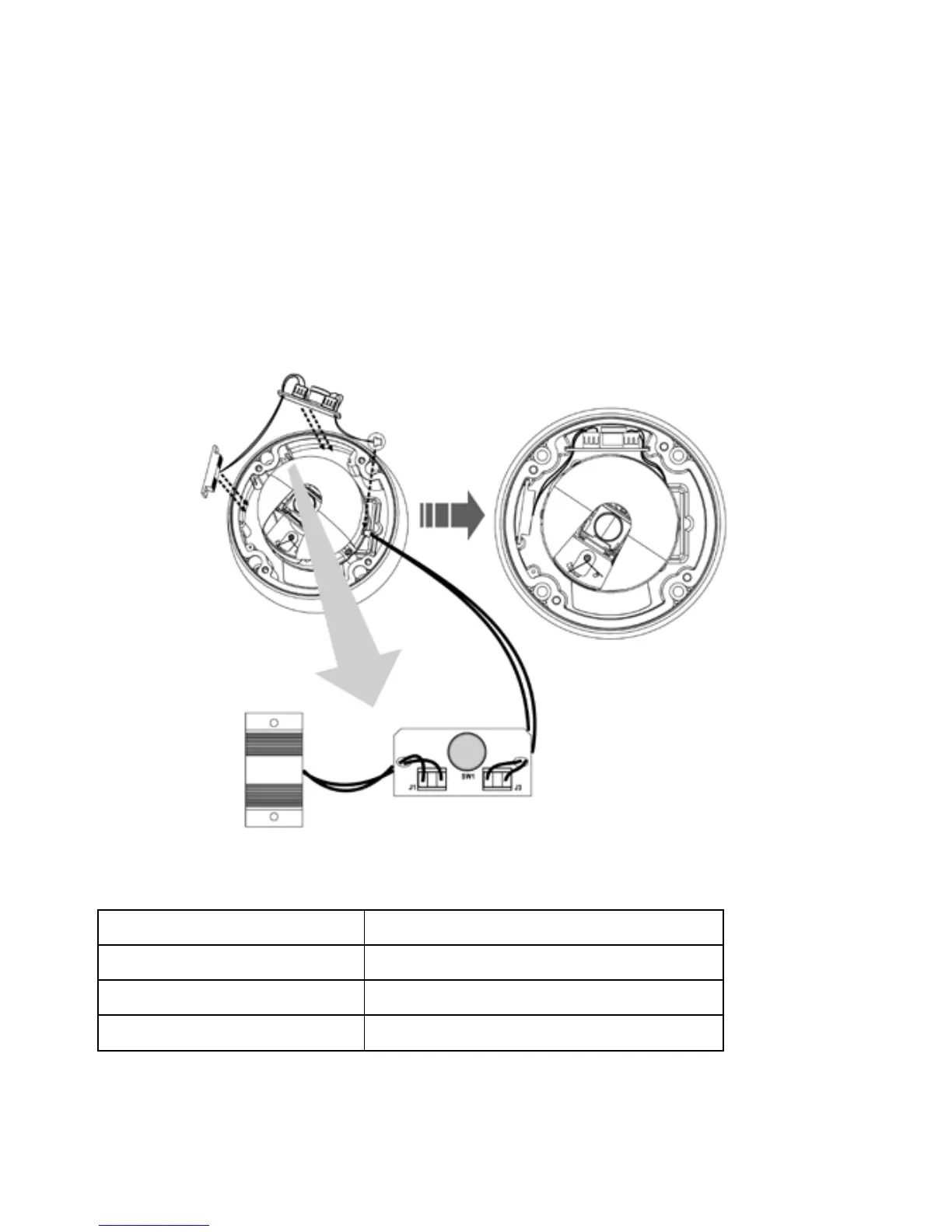

1. Place the Heater element in slot „A”. Please ensure that the cables are facing
upwards and the heater is pointing towards the Dome.
2. Place the PCB in slot „B”. Please ensure that the PCB is facing away from the
Dome with the connection blocks at the top.
3. Place the plug in the Socket „C” (J701) which is found on the main PTZ board.
To Next Page
