Enerdrive DC2DC - Battery Charger Voltage Settings

ePOWER charger algorithm

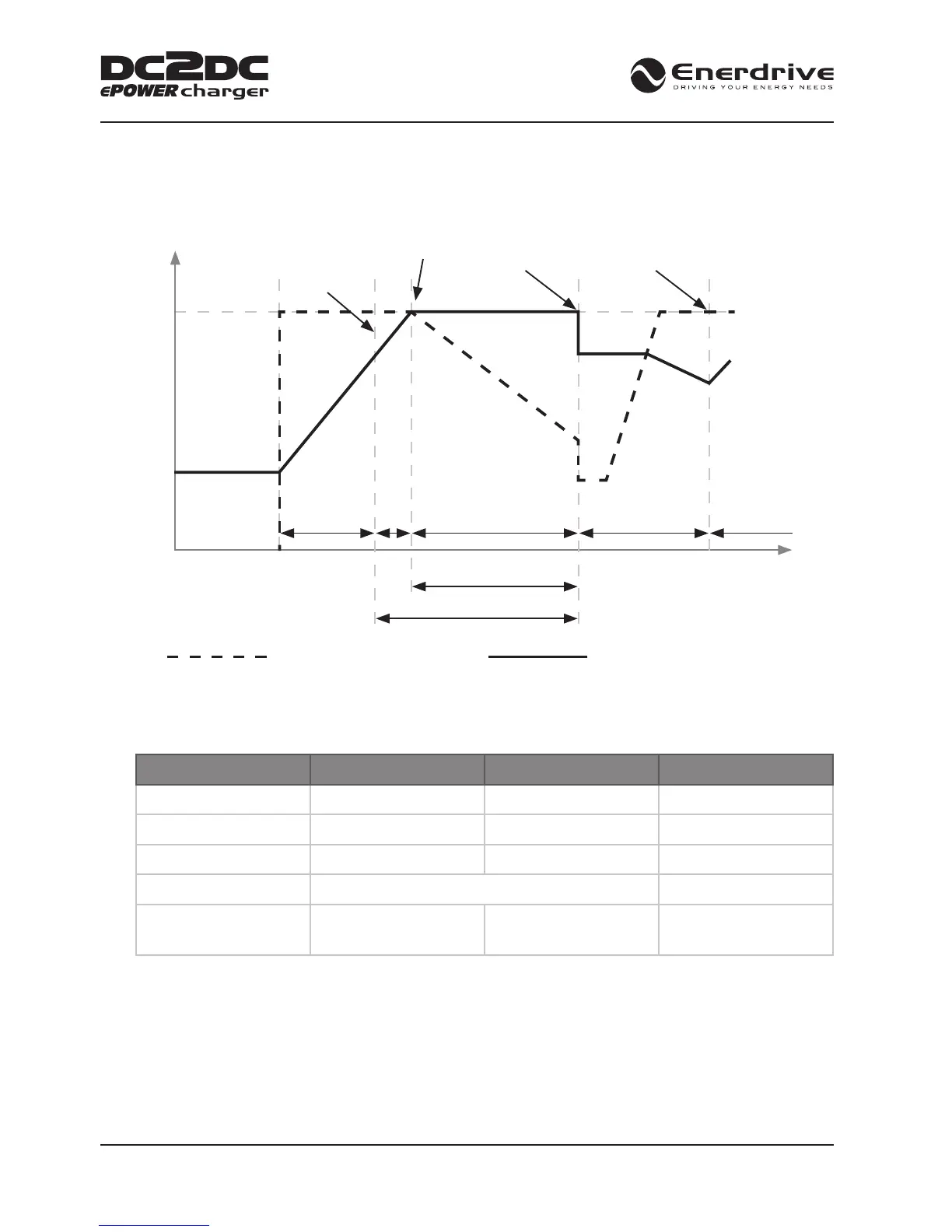

Battery Charging Curve For GEL, AGM, Flooded & Program Batteries:
CHARGE
CURRENT
V out ≥ V abs
for 1 min
V out ≥ V abs
for 1 min
I out < 10% I rating
for 1 min
If V out < 12.5 Vdc
for 15 min
BULK
CV ABS timeout 5 hr
Total ABS timeout 8 hr
FLOAT BULK
TIME
CC
ABS
CV ABS
Battery Charging Curve (Current) Battery Charging Curve (Voltage)
Note: Actual voltages depend on chosen algorithm.
Battery Charger Voltage
Battery Type Absorption Float Equalisation
GEL 14.4 V 13.7 V N.A.
AGM 14.7 V 13.6 V N.A.
Flooded 14.4 V 13.3 V 15.5 V (See Note1)
Lithium Constant 14.2 V, 14.3 V, 14.4 V (See Note2) N.A
Program (Custom
Settings)
13.8V-14.8 (0.1V Step) 13.0V-13.8 (0.1V Step) N.A
* For Concorde™ branded batteries (lifeline, sun xtender) use ooded setting and consult battery
supplier for equalisation recommendations.
Note 1: Equalisation setting can only be used on ooded battery type selection only. See
more details on Procedure to Equalise the Flooded Battery.
Note 2: Charger will terminate charging when charging current drops to below the set
charger termination value.
(Battery
recharge in Bulk
mode)
