5.0 5.0 Operation Operation (Models with SmartSwitch)(Models with SmartSwitch)
Operation instructions for models without the SmartSwitch
controller can be found in Section 6.0 “Operation (Models with
LED Display)” on Page 21.
If you are using the Ethernet based web server, see Section 5�6
“Review System Status via the Embedded Web Server" on Page 18
for setup and operation instructions� Refer to section 5�7 on Page 20
for a SmartSwitch user interface map�
5.1 5.1 User InterfaceUser Interface
To advance any item in the menu, tap the SmartSwitch screen (fully
depress the screen itself for less than one second)�
To select a value or enter a menu, press and hold the SmartSwitch for
at least 3 seconds�
5.2 5.2 Home Screen InformationHome Screen Information
The SmartSwitch home screen displays Input bus voltage, input bus
current, and alarm status� Under normal operation, the home screen
backlight will remain green�
The dual input Matrix C16 SmartSwitch home screen will
automatically cycle between the A and B bus displays� Tapping the
screen once will cycle through the home screens manually� The
available options from the home screen are Input A, Input B displays
as well VIEW BKR LOAD and SETUP menus�
The home screen also indicates the real time status of the panel
based on its backlight color� Refer to Table 2 below for status
information�
Table 5. Backlight Status
BACKLIGHT COLOR STATUS
INDICATED
ALARM TYPE
Green Normal Operation N/A
Orange Warning/Pre-Alarm Minor
Red Alarm Major
Bus B
48.0 VDC
0.0 AM

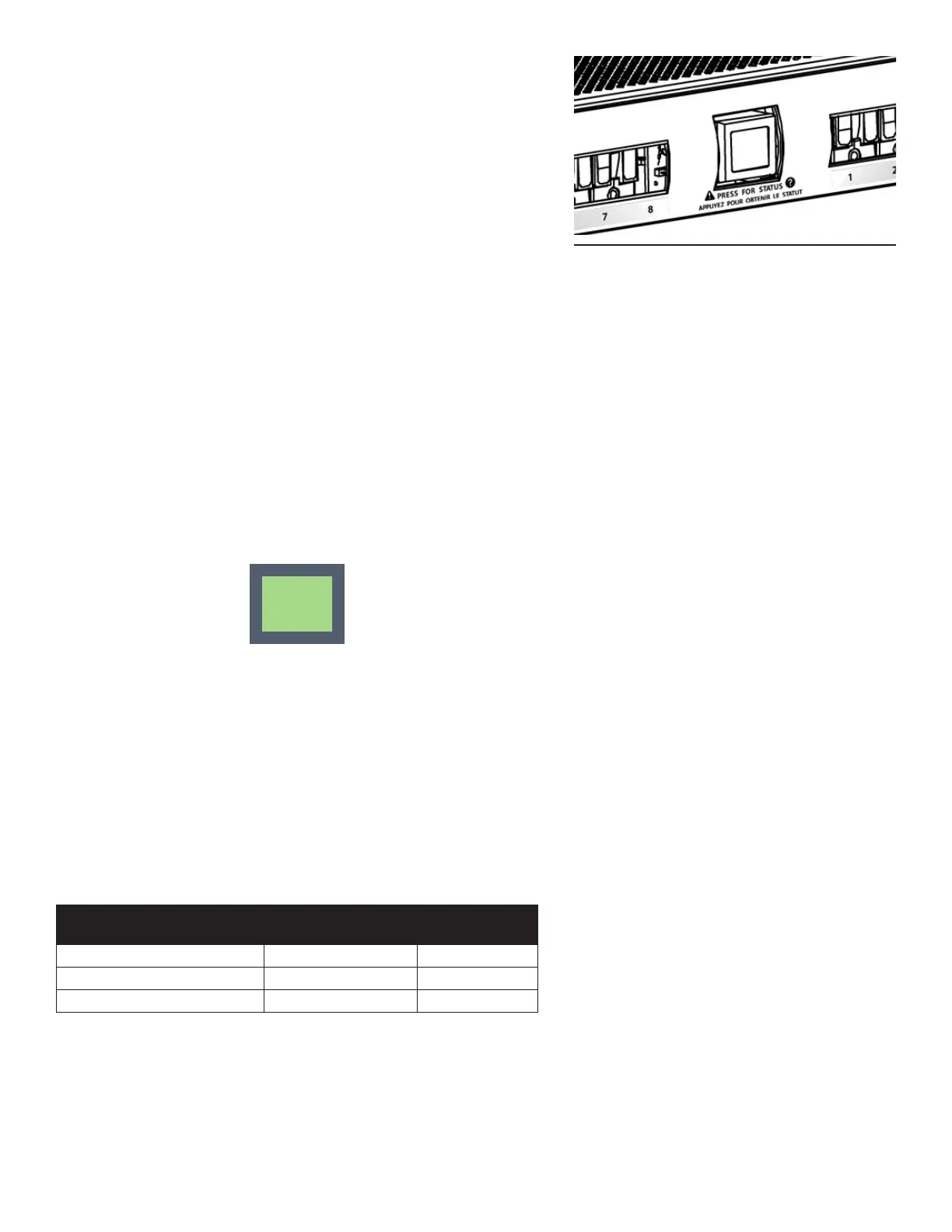

Figure 17. SmartSwitch Controller
To Next Page
