Engbo XForce Series - Thruster Dimensions

XF Rev: 7, 2008-10-14 Page 8

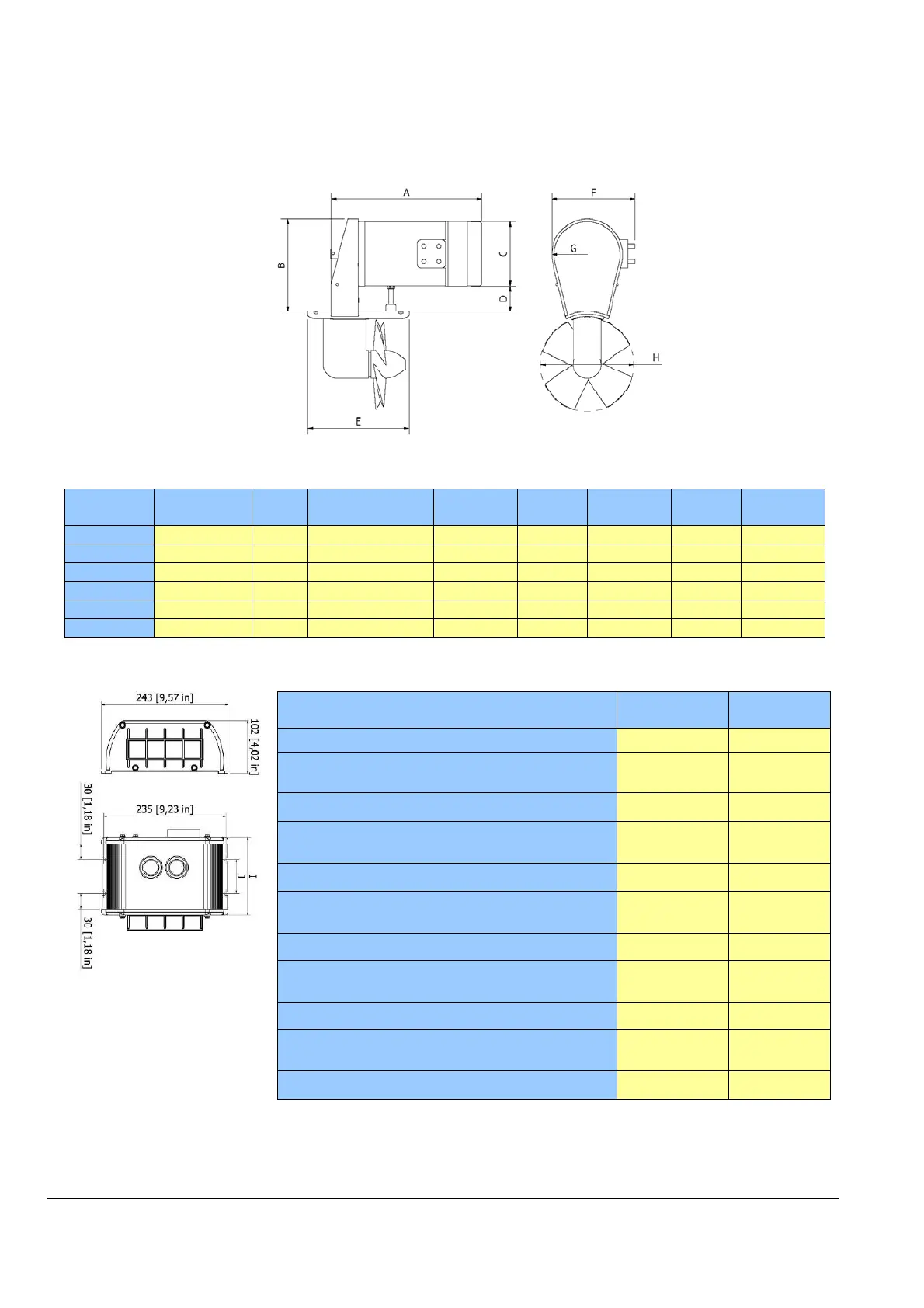

4 DIMENSIONS
Thruster A B C D E F G H
XF 20
197 158 106 29±5 180 135 67.5 110
XF 40
270 150 120 15±8 192 131 65.5 160
XF 60
310 150 130 15±8 192 170 65.5 160
XF 75
310 190 130 50±8 200 190 75 185
XF 90
310 190 130 50±8 200 190 75 185
XF 130
320 220 170 32±14 300 130 85 250
All measures in tables given in mm
XForce Thruster I J
XF 20 / Relay box
150 66
XF 20 / Transistor-controlled power
electronics with integrated radio receiver
150 66
XF 40 / Relay box
150 66
XF 40 / Transistor-controlled power
electronics with integrated radio receiver
195 111
XF 60 / Relay box
150 66
XF 60 / Transistor-controlled power
electronics with integrated radio receiver
215 131
XF 75/ Relay box
150 66
XF 75 / Transistor-controlled power
electronics with integrated radio receiver
215 131
XF 90 / Relay box
150 66
XF 90 / Transistor-controlled power
electronics with integrated radio receiver
215 131
XF 130 / Relay box
195 111
All measures in tables given in mm
