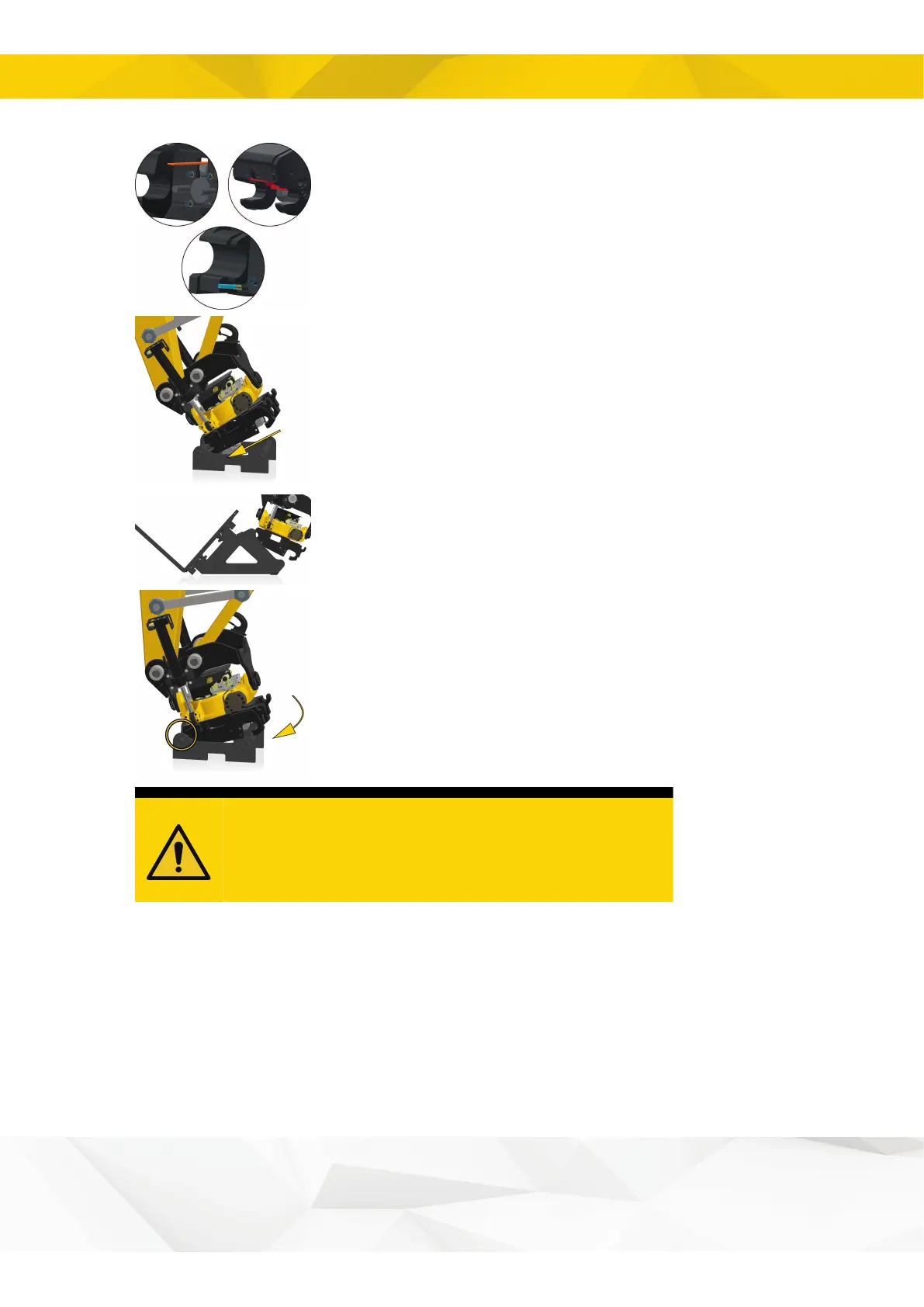

5 Operation
1. In the case of Q-Safe, check that the orange
indicator rod is out.
In the case of ECPUP, check that the red hook is in
the open position.
In the case of engcon's other quick hitches, check
that the blue indicator rod is out. Indicator rod
location may vary depending on the tiltrotator model.
2. Move the quick hitch towards the tool.
If EC-Oil is fitted, make sure the tool is located so
that the shaft with the EC-Oil block is positioned
closest to the base machine. If the tool is positioned
correctly, the block will be visible on the left side of
the shaft as seen from the cab.
To avoid overloading when connecting the pallet
forks, the quick hitch locking pins must be turned
away from the forklift tines.
3. Connect the tool by moving one axle towards the
quick hitch.
If fitted, Q-Safe activates the stick’s sound and light
signals.
CAUTION
Use hearing protection when close to or handling
the Q-Safe quick hitch when it is connected. Risk of
hearing damage.
