3 Design and function
3.4. Q-Safe electronics module QLM
QLM is used in combination with a Q-Safe quick hitch/machine hitch and alerts by
means of audible and visual signals if both bucket axles are not locked or in their proper
positions. This means QLM will alert when connecting and disconnecting tools or if a tool
is not properly connected.
REMARKS
For quick hitches other than Q-Safe, follow the manufacturer's
instructions for checking that tools are correctly connected.

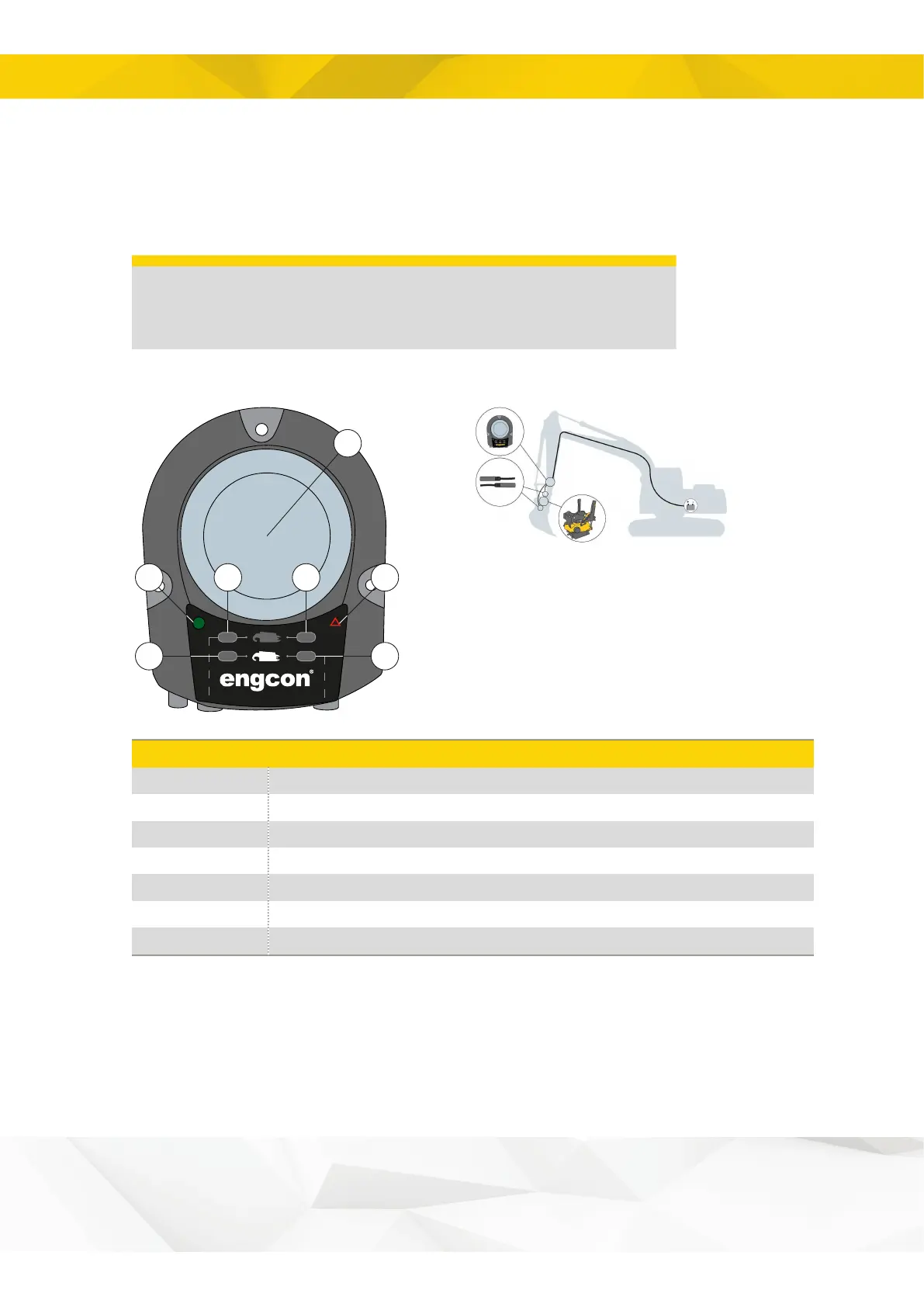

3.4.1. QLM overview
!
!
EC
!
5
1 3 4 2
6
7
Position
Description
1
Power supply
2
Alarm indication
3
Sensor, machine hitch hook
4
Sensor, machine hitch ejector
5
Sensor, quick hitch hook
6
Sensor, quick hitch ejector
7
Warning lamp
