Engcon DC2 QSC - Page 36

5 Operation
?
1.
1.
2.
2.
3.
3.
8000265
?

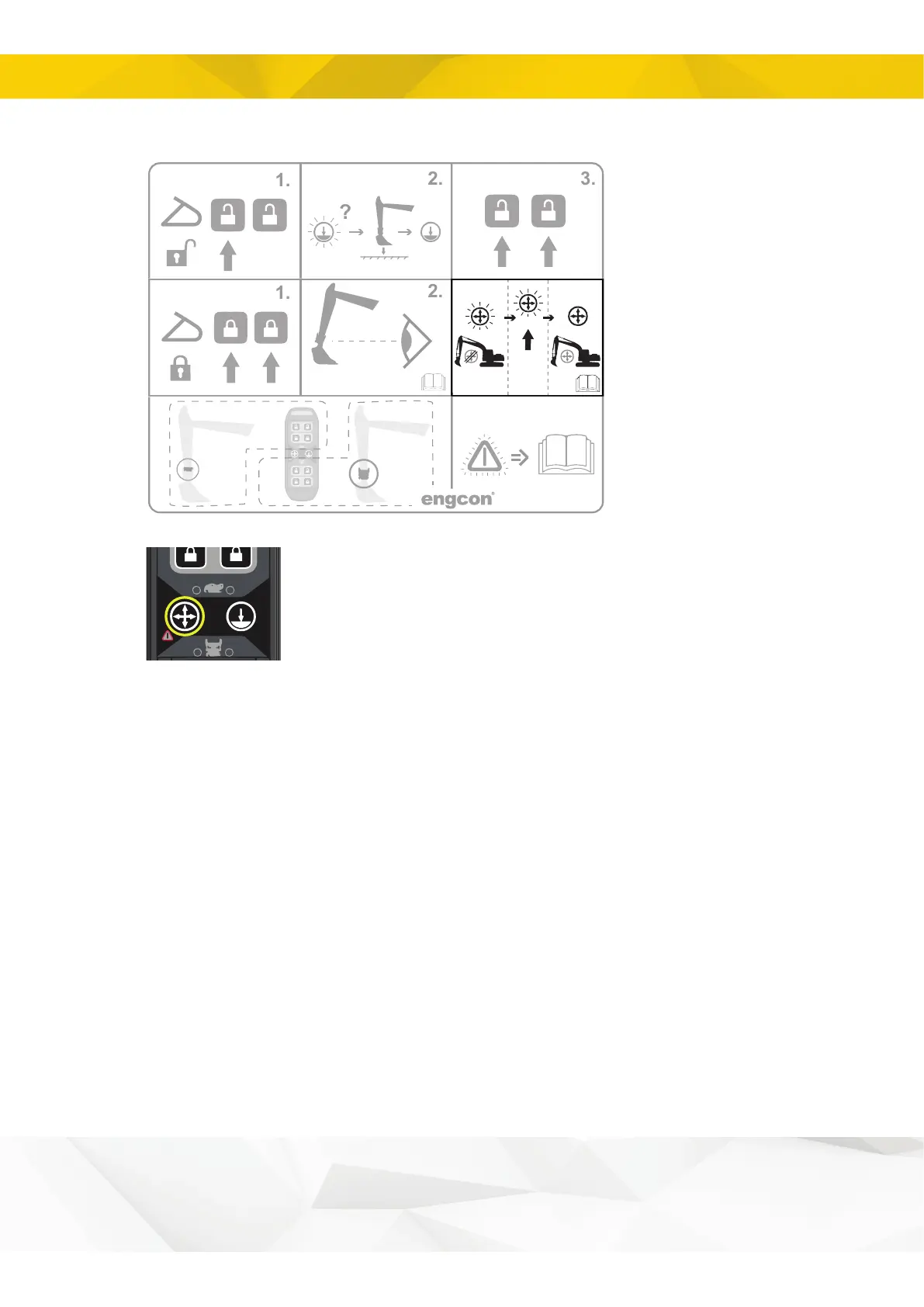

The slew/lift limitation symbol lights up during tool
connection and disconnection. If the symbol lights up
at other times, check that the quick hitch is correctly
connected, then press the pressure symbol to reset.
Slew/lift limitation can be temporarily overridden by
pressing and holding down the button. If the quick
hitch is not correctly connected, slew/lift limitation is
activated when the button is released.
36
