Engcon S60 - Installing Hydraulic Hoses

4 Installation
4.4.1. Installing hydraulic hoses
Make sure hose lengths are such that they do not hang
too much or are stretched when tilting the product.

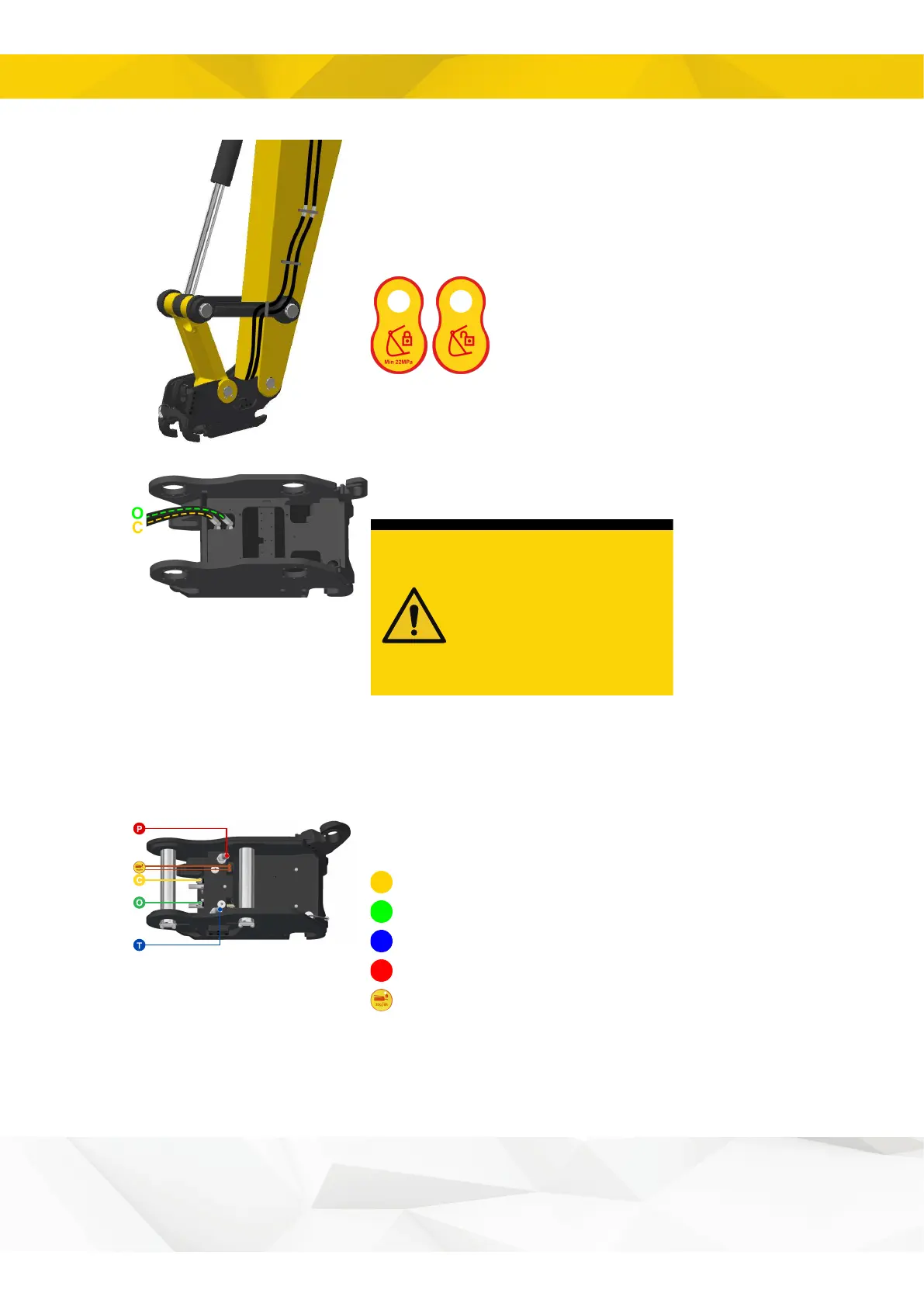

Fit the hydraulic hoses as shown in Figure 10.
Close Open indicates the locking function (the location of
the adapters may vary)
Figure 8.
Tank Pressure Rotation mark theEC-Oil block hydraulic
connections.
WARNING
The hydraulic system
must be de-pressurized
before work on the
system is begun. Risk
of personal injury and
damage to property.
Minimum supply pressure for lock hydraulics is 3,190 psi.
Observe maximum supply pressure. See Chapter 9.
Technical data.
Figure 9. Bildtext
As far as possible, use free return to tank. The back
pressure in the return line should not exceed 360 psi.
For EC-Oil S60 (DC2)
Fit the hydraulic hoses as shown in Figure 10.
Close (C)
Open (O)
Tank (T)
Pressure (P)
Figure 10. Invisible caption
Central lubrication
16
