5 Operation
5.3.1. Connecting tools

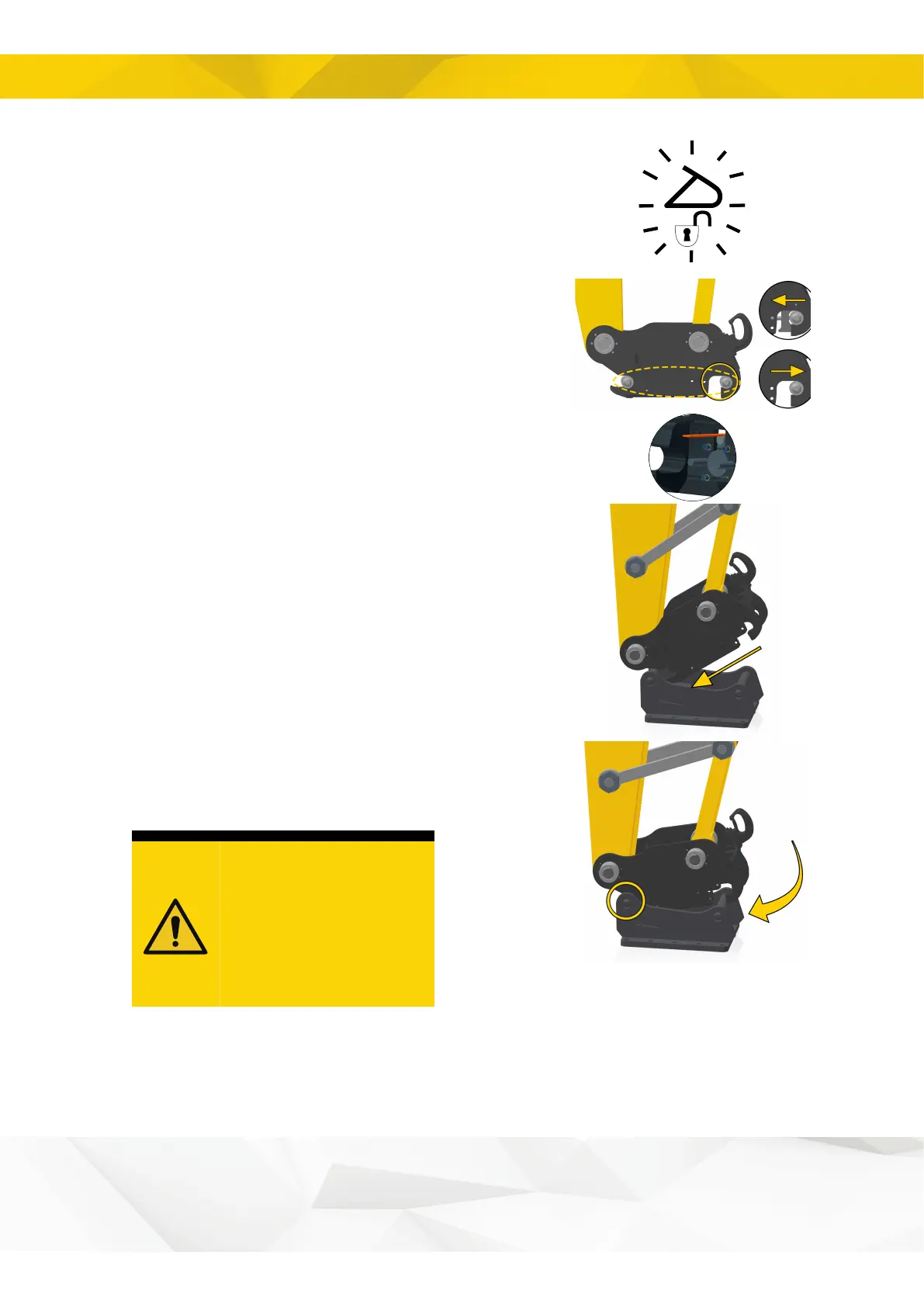

Activate the quick coupler lock function.
Activate the hydraulics to operate the locking bolts.
3. Check that the indicator rod is out.
Move the machine coupler toward the tool.
Make sure the tool is positioned such that the shaft with
the EC-Oil block is located closest to the base machine. If
the tool is positioned correctly, the block will be visible on
the left side of the shaft as seen from the cab.
Connect the tool by moving the machine coupler toward
one axle on the tool.
Q-Safe: The sound and light warning signals are
activated.
CAUTION
Use hearing protection
when in close proximity
to or operating the Q-
Safe machine coupler
when connected. Risk of
hearing loss.
