4 Installation
Option for EC-Oil S60 (DC2)

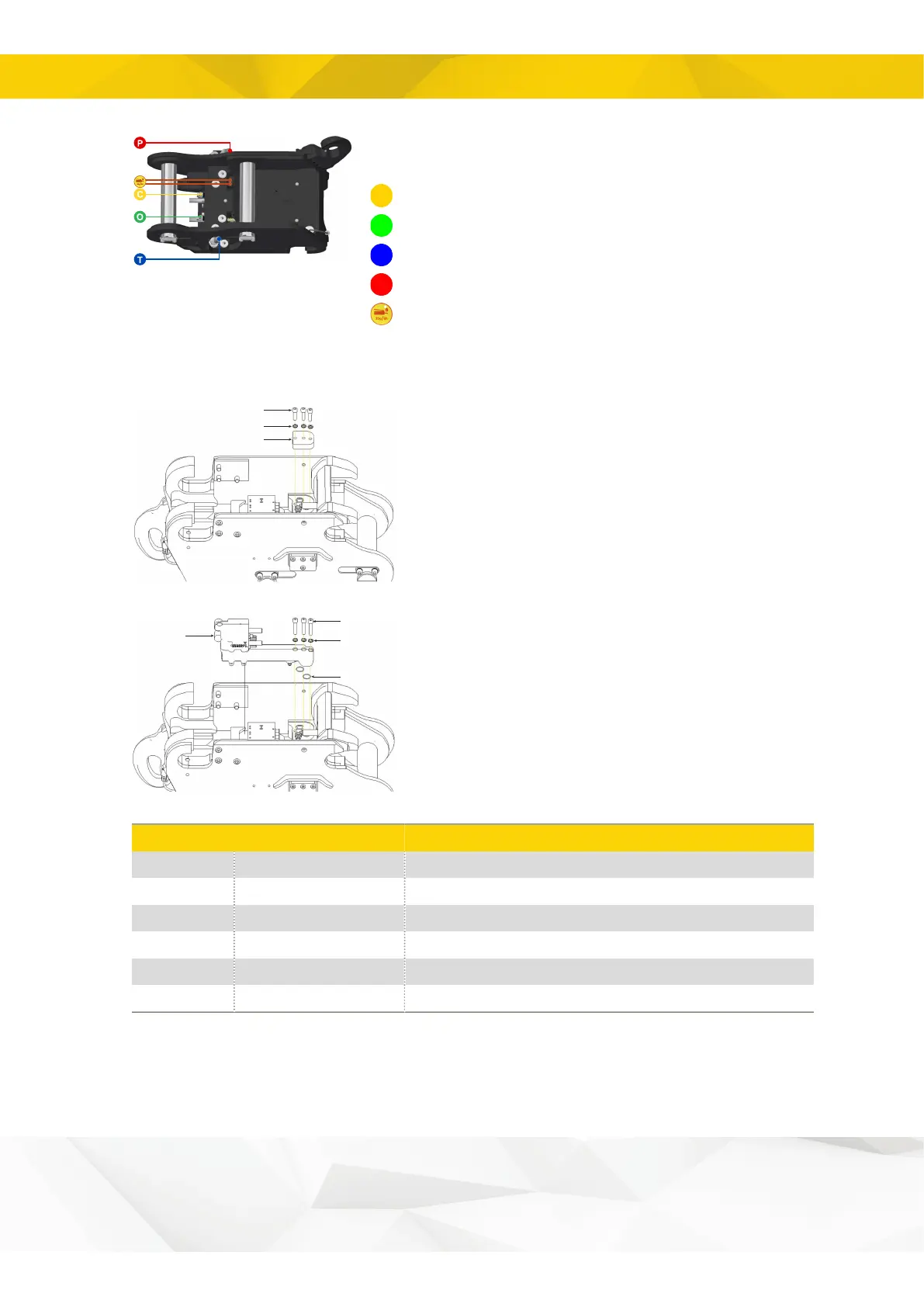

Install the hydraulic hoses according to Figure 11.
Close (C)
Open (O)
Tank (T)
Pressure (P)
Figure 11. Invisible caption
Central lubrication
4.5. EC-Oil
3
2
1
1. Remove the cover and its associated bolts and
washers.
4
5
2
6
2. Install the connection block and its associated
bolts and washers; torque tighten to 79 Nm.
Position
Part number
Description
1
1071029
Cover plate S60 - without ECO-block
2
611041
Washer NL10-DPE 10,7x16,6x2,7
3
612019
Screw MC6S 10x35 12.9 ZFSHL ISO4762
4
1069516
Connection block ECO60 W-S60-quick hitch -left
5
612022
Screw MC6S 10x55 12.9 ZFSHL ISO4762
6
7001829
O-ring 21,95x1,78 NBR 90 shore
