Engcon S60 - External Hose Connection; Direct Feed

4 Installation
4.6. External hose connection
3
2
1

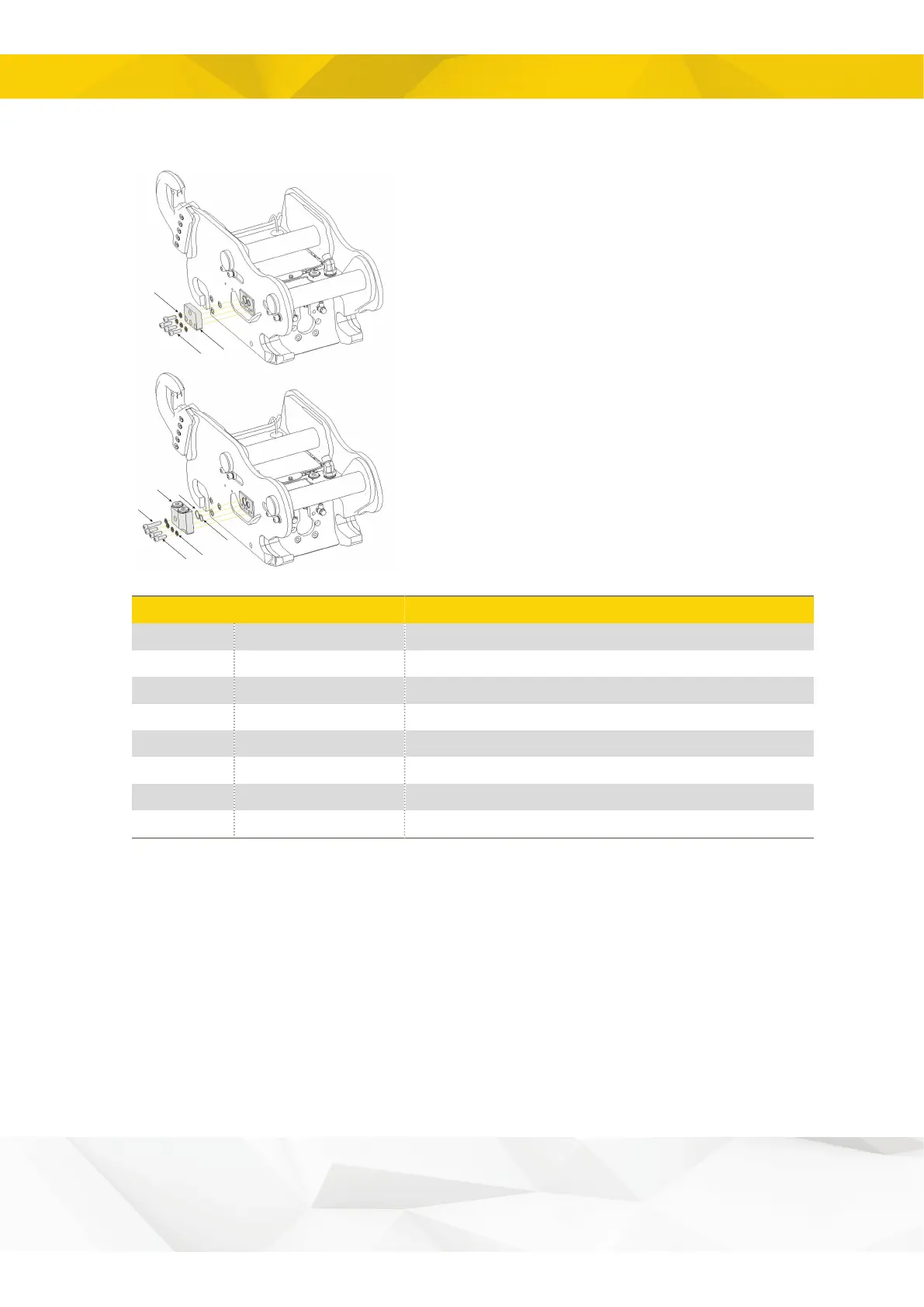

1. Remove the cover and its associated bolts and
washers.
7
2
5
4
6
8
2. Install the connection block and its associated
bolts and washers; torque tighten to 79 Nm.
Position
Part number
Description
1
1070776
Cover plate S60 - without side-block
2
611041
Washer NL10-DPE 10,7x16,6x2,7
3
612018
Screw MC6S 10x30 12.9 ZFSHL ISO4762
4
1071473
Side block S60 - for hose connection
5
612019
Screw MC6S 10x35 12.9 ZFSHL ISO4762
6
611515
Screw MC6S 10x50 12.9 ZFSHL ISO4762
7
7001838
O-ring 18,77x1,78 NBR 70 shore
8
710979
O-ring 25,12x1,78 NBR 70 shore
4.7. Direct feed
In the case of direct feed to a separate function via the right EC oil block, the connection
block must be plugged.
