Engcon S60 - Tightening Torque

6 Maintenance
Replacing face seals
Applies to hydraulic connectors on quick
couplers.
1. Remove the existing face seal with the
aid of a sharp tool.
2. Carefully install the new face seal by
hand.
REMARKS
Install the tapered
face seal with a
narrow edge outward.

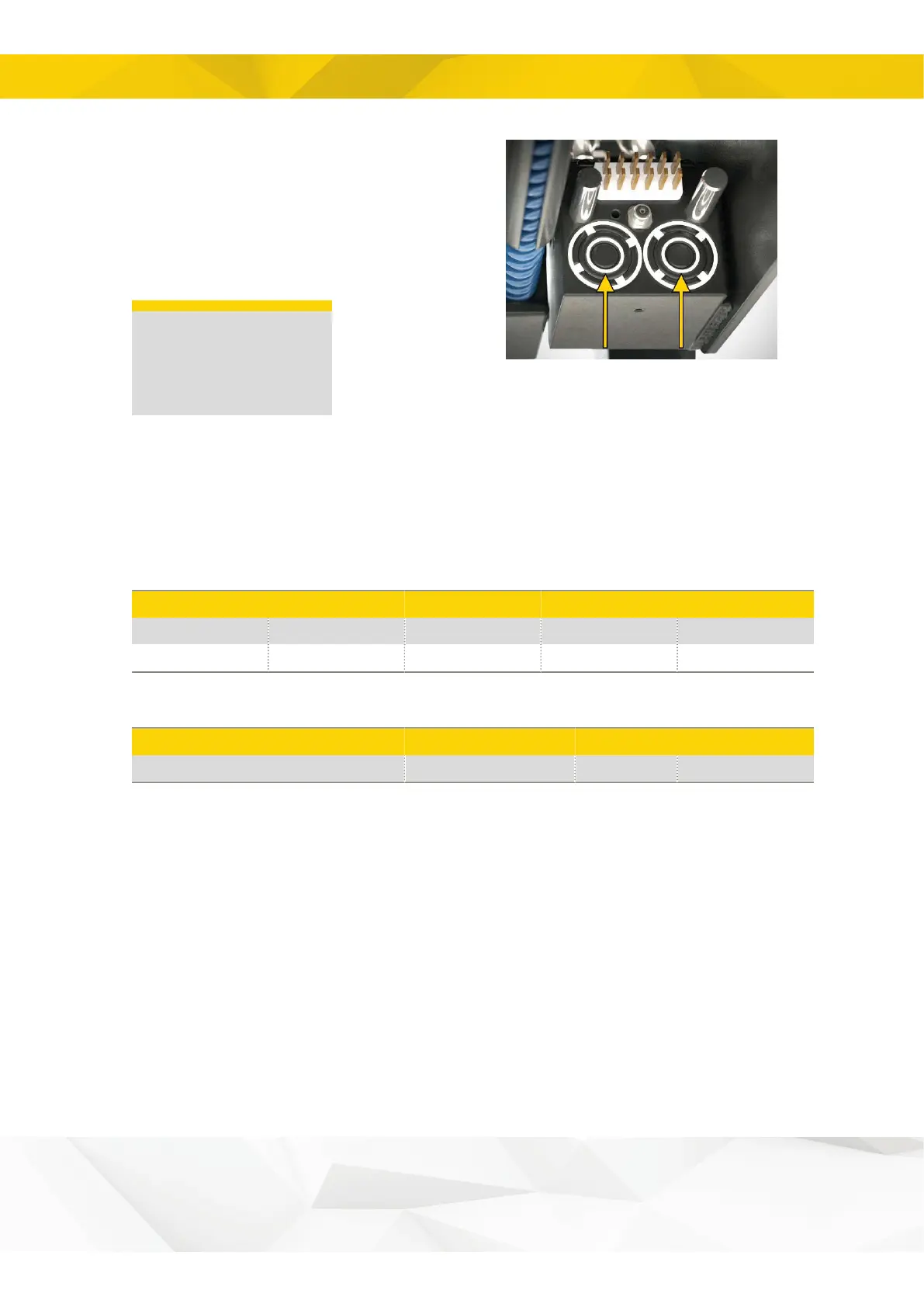

Figure 14.
6.4. Tightening torque
Torque tightening is essential for the strength of some bolted joints.
Bolts and threaded holes must be thoroughly clean.
S60
Fastener
Dimension
Quality
Quantity
Torque
axle lock
M12
12.9
8
100 lb-ft
Jacking point
M10
12.9
5
58 lb-ft
EC-Oil hydraulic connectors
Fastener
Dimension
Quantity
Torque
Hydraulic connector ECO
ECO40-80
2
44 lb-ft
Table 2.
29
