EnGenius ENH1350EXT - Page 23

23

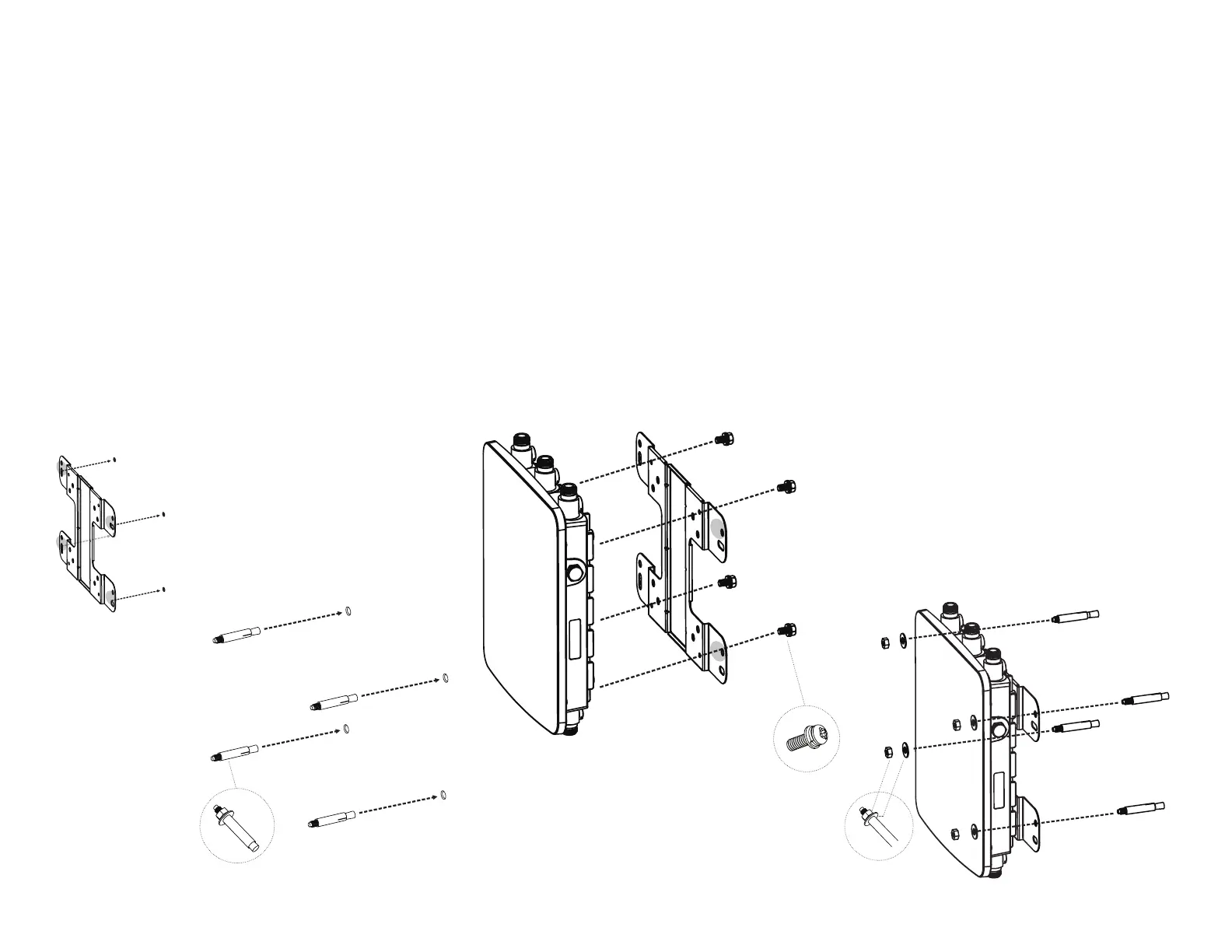

To attach the ENH1750EXT to a wall using wall
mounting kit.
1. Mark the four locations of the mounting holes on the
at mounting surface.
2.
Drill a 37 mm deep 8 mm hole in the markings and
hammer the bolts into the openings.
3.
Place the lock and at washers on the four hex cap screws
and drive the screws to attach the bracket to the back of
the Access Point.
4.
Tighten the at washers to secure the bracket to the
mounting surface.
2.
3.
4.
1.
