EnGenius ENH1350EXT - WDS AP Mode Operation

33

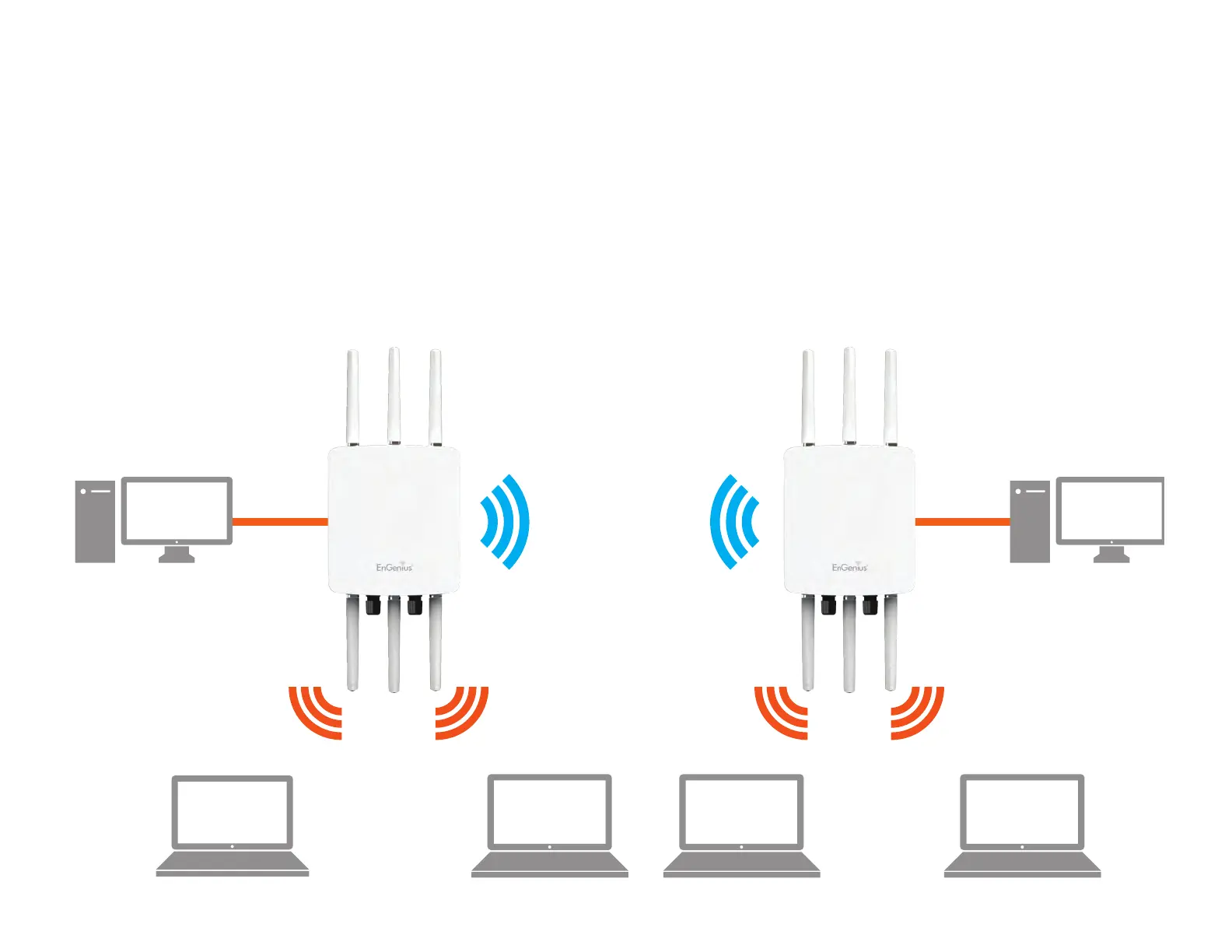

WDS AP Mode
The AP also supports WDS AP mode. This operating mode allows wireless stations to connect with Access Point via using
WDS technology. In this mode, congure the MAC addresses or SSIDs in both Access Points to enlarge the wireless area
by enabling WDS Link settings. WDS supports up to four (4) AP MAC addresses and four (4) SSIDs at the same time.
AP
WDS AP-
AP
WDS AP-
2.4 GHz 2.4 GHz
5 GHz 5 GHz
Client Client Client Client
Client
Computer
Client
Computer
