AP Mesh Mode
Under the AP Mesh mode, the ENH900EXT can be used as the central connection hub for station or clients that
supportIEEE802.11b/g/nnetwork.Underthismode,theENH900EXTcanbeconguredwiththesameMeshSSIDand
security password in order to associate with other ENH900EXTs, as well as connect with clients under the same SSID
and encryption signatures. For example, you would use one band to connect Access Points in range with Mesh mode
andtheotherbandtobroadcasttrafconthenetwork.

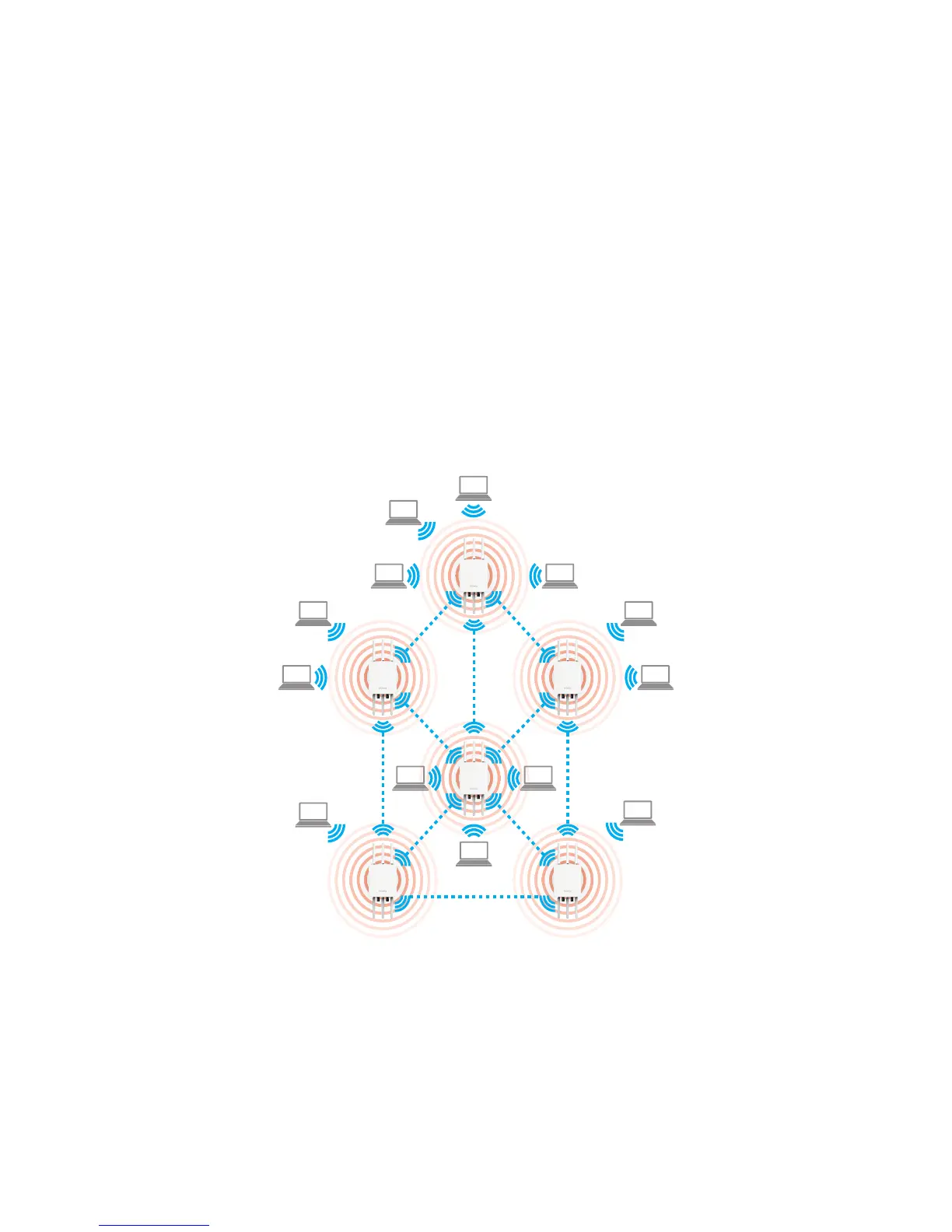

Client Computer
