IQ System Controller 3 INT Quick Install Guide
Close dead front and
install breaker ller plate
WARNING! Before energizing, make sure that all IQ System
Controller 3 INT connections are properly installed and
conductors terminated.

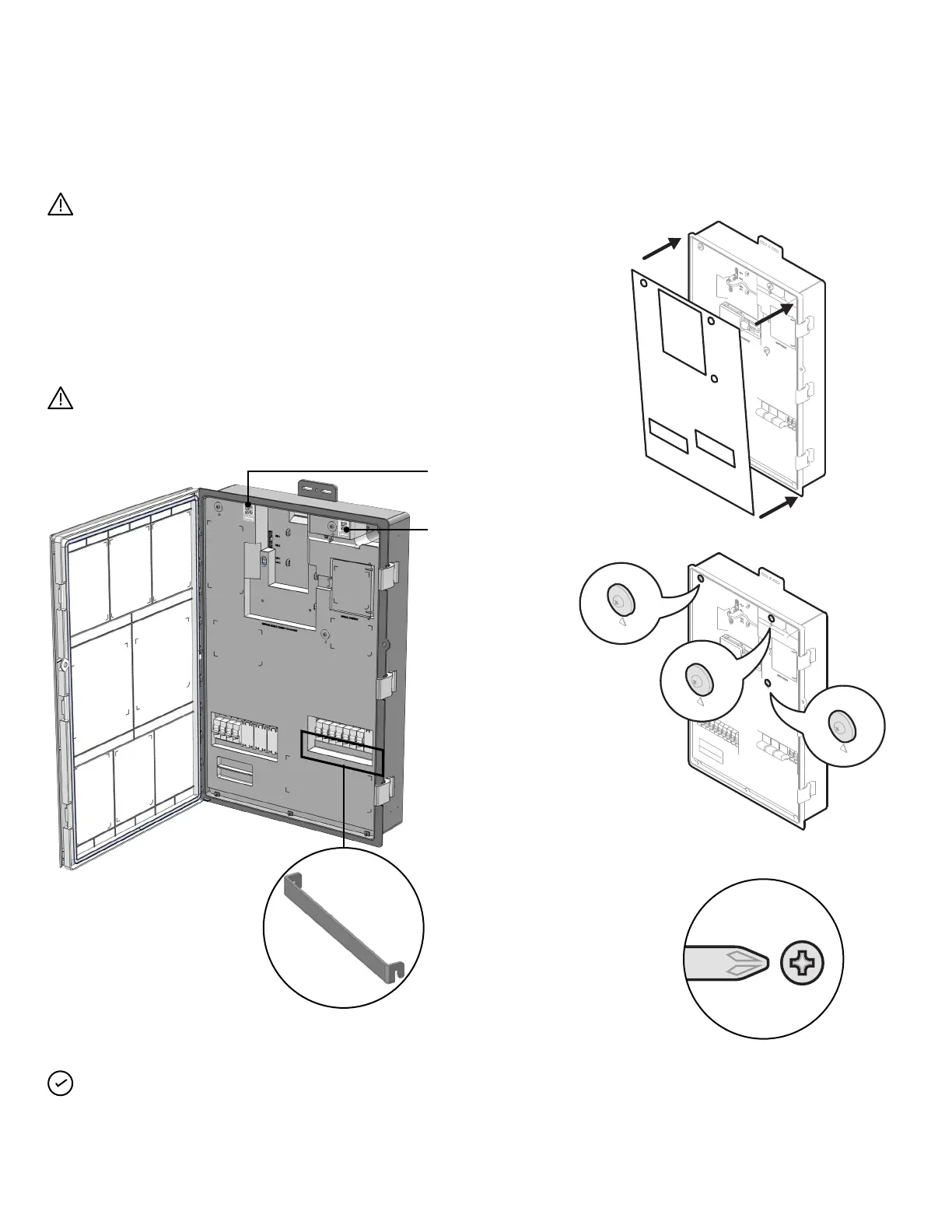

• Reattach the dead front using the three screws and tighten
them using a Phillips screwdriver number two.
• Attach the breaker ller plate to the bottom part of the mains
breaker cutout as shown in the image below.
WARNING! Risk of equipment damage. Ensure that no
conductors are pinched before replacing the cover.
Breaker
ller plate
IQ Gateway
QR code
IQ System
Controller
QR code
Philips screw #2
Torque: 1.4 N m
NOTE: Breakers for solar, IQ Battery, mains, and non-backup/
backup loads are not supplied with IQ System Controller 3 INT
and must be purchased separately. Breaker congurations
shown in the above images are indicative.
