IQ7/IQ7+/IQ7X/IQ7A Microinverters Installation and Operation Manual
29 © 2023 Enphase Energy Inc. All rights reserved. September 2023
IOM-00028-1.0
you need to enable device scanning on the IQ Gateway, contact Enphase
Support at enphase.com/en-us/support/contact.
b. Method 2: Use an IQ Gateway

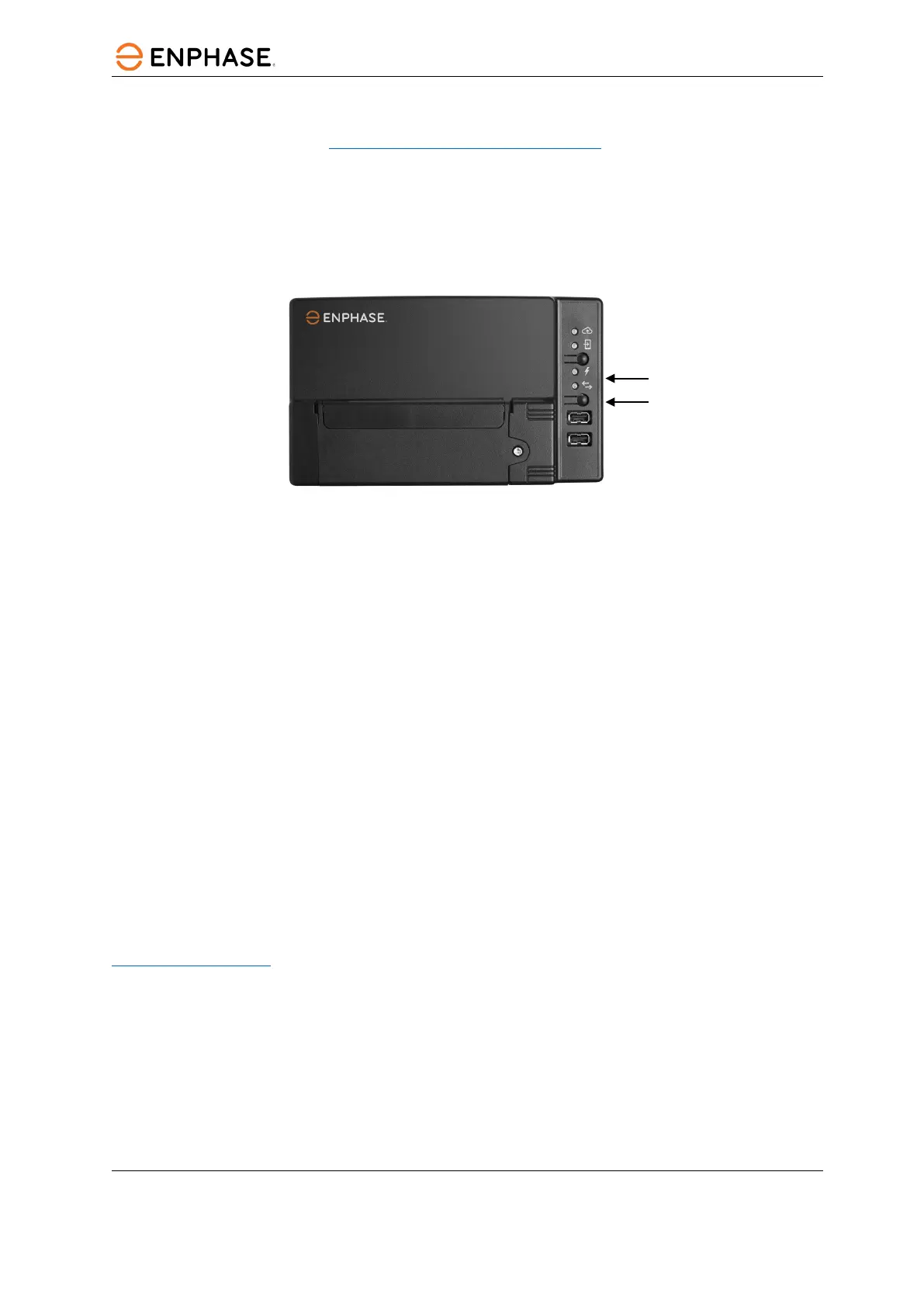

• Press the Device Scan button on the IQ Gateway. The IQ Gateway begins a 15-
minute scan to identify all the microinverters deployed at the site. The
Microinverter Communications LED flashes green during the scan.
K. Log in to Enphase App to use Enphase App’s Array Builder to add the newly detected
microinverter to the virtual array.
L. Ship the old microinverter to Enphase using the supplied return shipping label.
4.5 Ordering replacement parts
Replacement adaptors for Microinverters with MC-4 DC connectors include:
• Q-DCC-2: Cable assembly, DC adaptor to MC-4
• Q-DCC-5: Cable assembly, DC adaptor to Amphenol UTX
These parts are available with your Enphase distributor.
4.6 IQ Cable planning and ordering
The IQ Cable is a continuous length of 12 AWG, double insulated, outdoor-rated cable with integrated
connectors for microinverters. These connectors are preinstalled along the IQ Cable at intervals to
accommodate varying PV module widths. The microinverters plug directly into the cable connectors.
The cabling is compatible with a variety of PV racking systems. For a list of approved PV racking
systems, refer to the PV Racking Compatibility document on the Enphase website at
enphase.com/support.
4.7 Connector spacing options
IQ Cable is available in three connector spacing options. The gap between connectors on the cable
can be 1.3 meters, 2.0 meters, or 2.3 meters. The 1.3-meter spacing is best suited for connecting PV
modules installed in portrait orientation, while the 2.0-meter and 2.3-meter spacing allows you to
install 60-cell and 72-cell PV modules in landscape orientation, respectively.
Microinverter Communications LED
Device Scan button
