RPS Overview
1-2 Introduction
C2RPS-CHAS8 Chassis
ThechassisisaaneightslotframewithoutACpowerconnectionsorelectronics.The
chassiscanbeinstalledinastandard19inchrackandpopulatedwithuptoeightPSMs.
EachPSMoperatesindependently.
Figure 11showsthefrontviewofthechassiswithcoversonly;Figure 12shows
therear
viewifthechassiswasfullypopulatedwithPSMs.

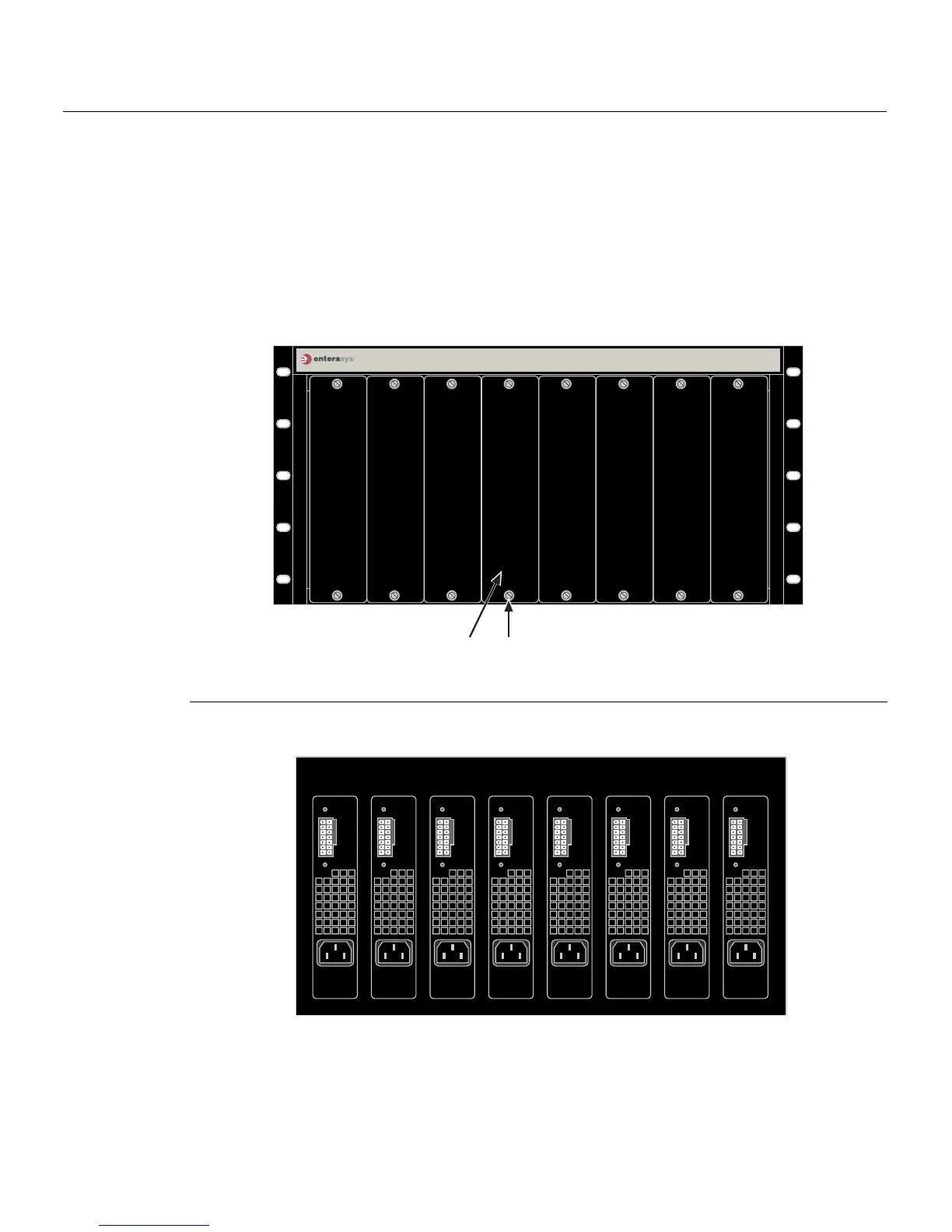

Figure 1-1 SecureStack C2RPS-CHAS8 (front view without PSMs)
Figure 1-2 SecureStack C2RPS-CHAS8 (rear view with eight PSMs)
___________________________ ____________________________________________________
1 Power supply slot cover (8) 2 Captive screw (2 per cover)
C2RPS-CHAS8
ÁÀ
AC LINE
100-240 VAC
50-60 Hz
2A MAX
Redundant Power Supply
AC LINE
100-240 VAC
50-60 Hz
2A MAX
Redundant Power Supply
AC LINE
100-240 VAC
50-60 Hz
2A MAX
Redundant Power Supply
AC LINE
100-240 VAC
50-60 Hz
2A MAX
Redundant Power Supply
AC LINE
100-240 VAC
50-60 Hz
2A MAX
Redundant Power Supply
AC LINE
100-240 VAC
50-60 Hz
2A MAX
Redundant Power Supply
AC LINE
100-240 VAC
50-60 Hz
2A MAX
Redundant Power Supply
AC LINE
100-240 VAC
50-60 Hz
2A MAX
Redundant Power Supply
