Connecting the PSM Cables and AC Power Cords
2-8 Installation

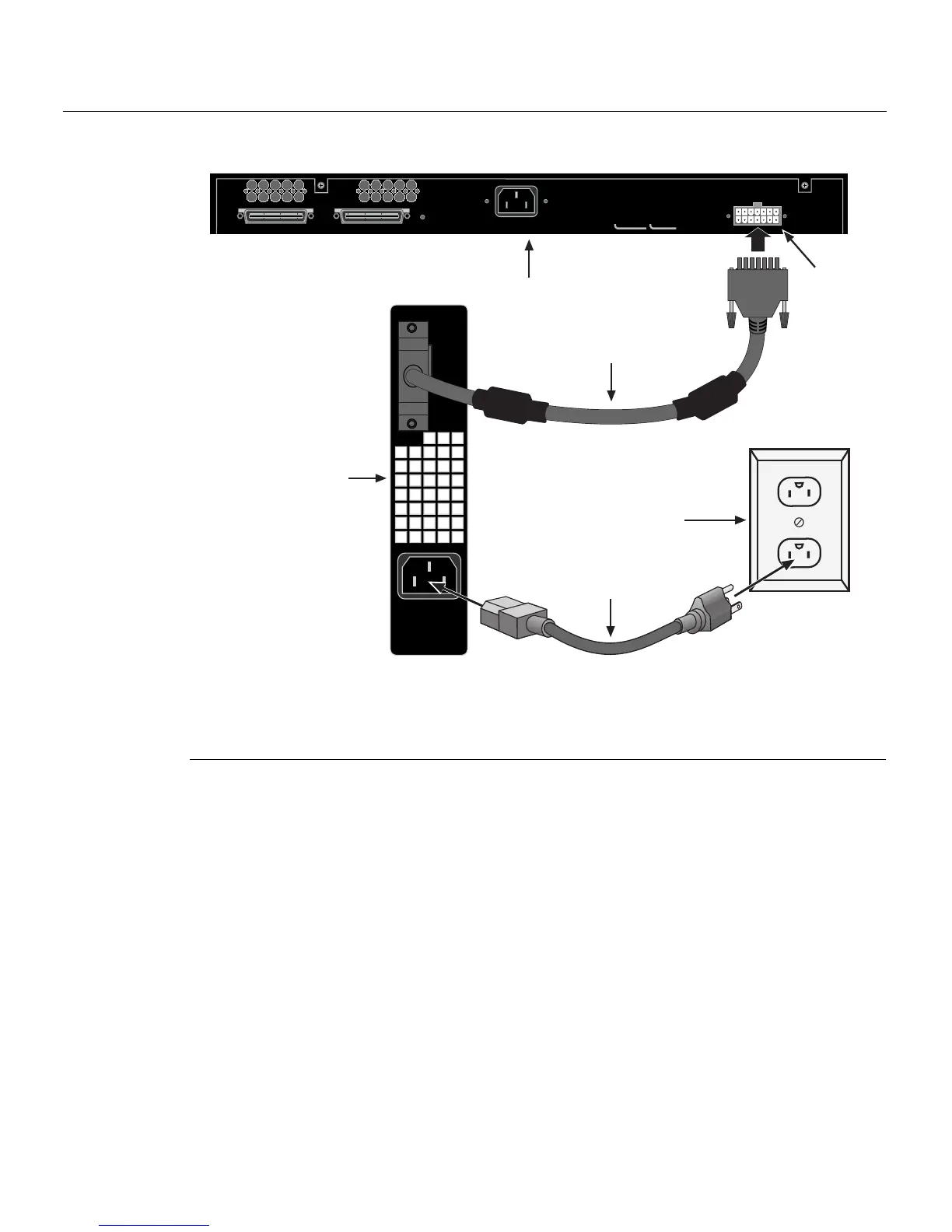

Figure 2-5 C2RPS-PSM Cable and AC Power Cord Connections
1 Switch device 4 Switch device Redundant Power Supply connector
2 PSM cable 5 AC power cord (type varies depending on country)
3 PSM Redundant Power Supply
connector
6 AC power outlet with ground connection (type
varies depending on country)
Redundant Power Supply
AC LINE
100-240 VAC
50-60 Hz
0.8 A MAX
MAC ADDRESS SERIAL NO.
STACK UP STACK DOWN
AC LINE
100-240 VAC
50-60 Hz
2A MAX
