C2RPS-PSM Specifications

A-2 Specifications

C2RPS-PSM Specifications

RefertoTable A‐2fortheinput/outputportspecifications.

C2RPS-PSM Redundant Power Supply Output Connector

Forpinlocationandfunction,refertoFigure A ‐1andTable A‐3,respectively.

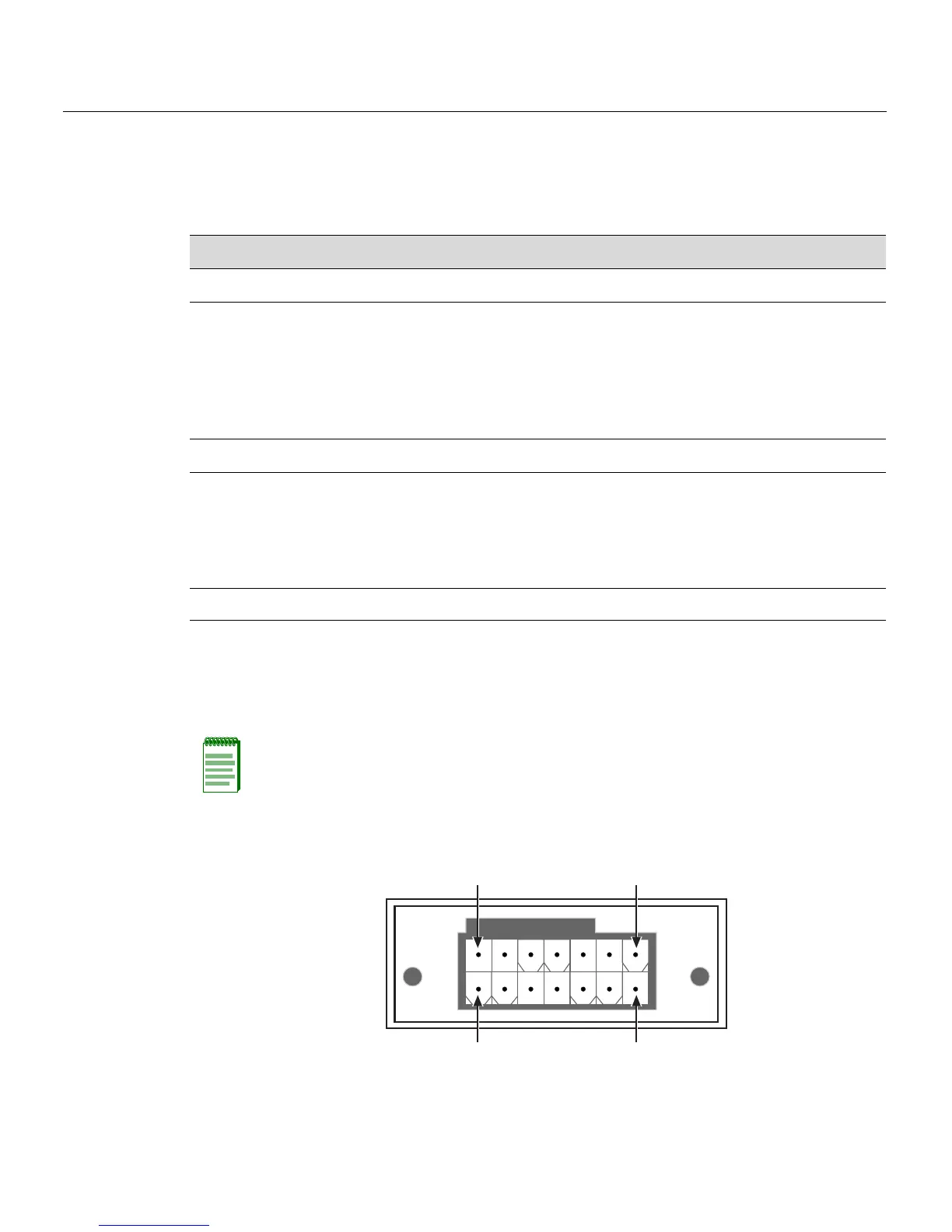

Figure A-1 C2RPS-PSM Redundant Power Supply Connector Pin Locations

Table A-2 C2RPS-PSM

Specifications

Item Specification

Electrical

AC Input Frequency Range

AC Input Voltage Range

Output Voltage

Output Current

Maximum Output Power

47 - 63 Hz

85 - 264 Vac

12 Vdc

1.0 A min., 8.5 A or 13.0 A max.

102 W or 156 W continuous

Physical

Dimensions 19.6 H x 5.2 W x 25.7 D (cm)

7.7 H x 2.04 W x 10.1 D (in.)

Net Weight (Unit Only)

Gross Weight (Packaged Unit)

1.75 kg (3.85 lb)

3.20 kg (7.04 lb)

MTBF 300,000 Hours

Note: The following information is for troubleshooting purposes only. For proper operation,

do not use any other cable except the C2RPS-PSM Cable. This cable is specially

designed for this application and meets all necessary Regulatory and Safety standards.

The use of non-approved cables will void your warranty.
