RPS Overview
SecureStack C2 Installation Guide 1-3
C2RPS-PSM Power Supply Module
ThePSMprovidesthefollowing:
•Hotswapcapability.
•One12Vdc,150Wattsofmaximum‐continuouspoweroutputtoaconnected
SecureStackC2switchdevice.
• FrontpanelStatusLEDthatindicatesifthePSMisoperatingcorrectly.
Figures1‐3and1‐4showthefrontandrearviewoftheC2RPS‐
PSM.

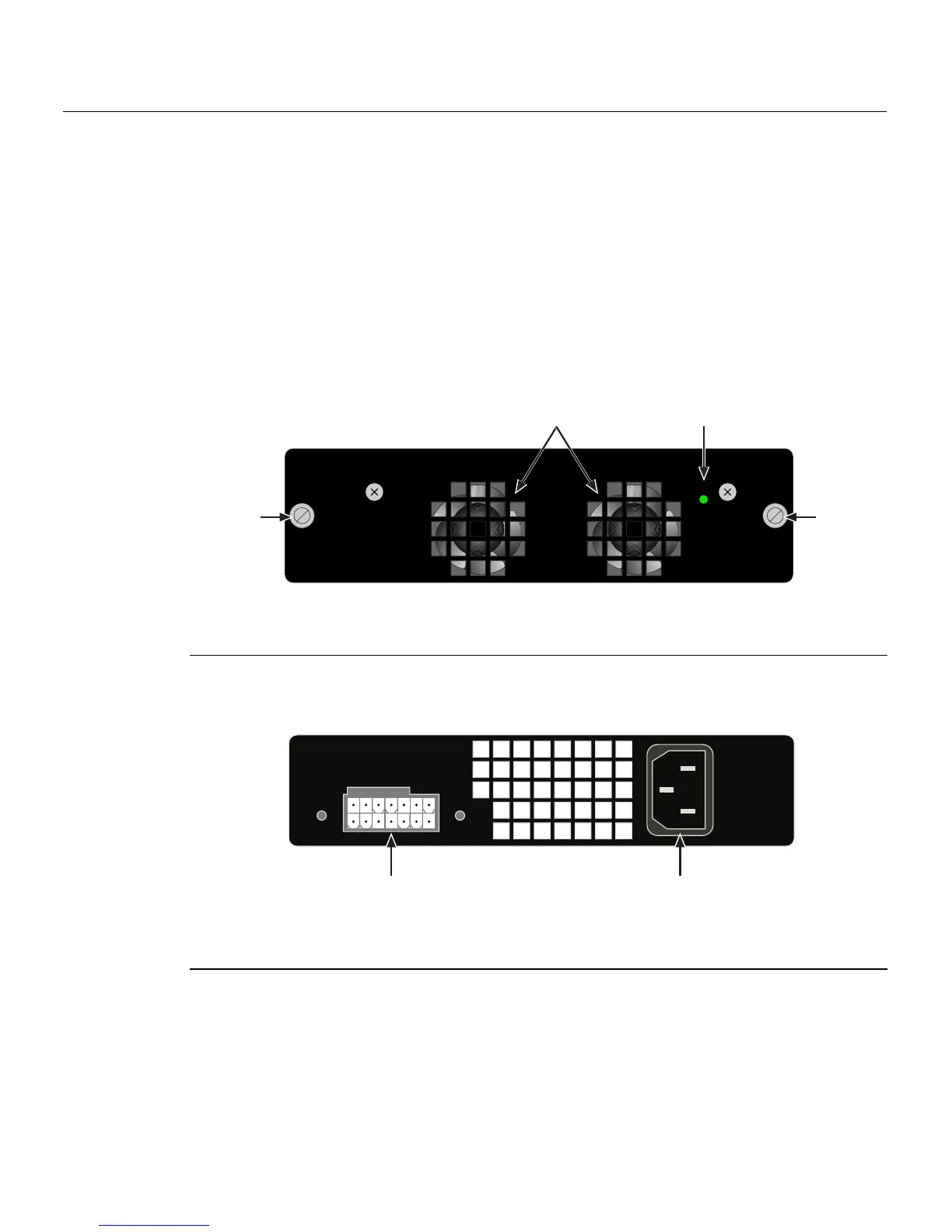

Figure 1-3 C2RPS-PSM (front view)
Figure 1-4 C2RPS-PSM (rear view)
1 Intake cooling fans 3 Captive screws (2)
2 AC power LED
1 Redundant Power Supply connector
(12 Vdc and PSM status outputs)
2 AC input connector
À
C2RPS-PSM
Power
 Â
Á
AC LINE
100-240 VAC
50-60 Hz
2A MAX
Redundant Power Supply
À Á
