Enterasys WS-AP3710i User Manual

1-6 WS-AP3710 Overview
WS-AP3710 LED Indicators
Both models of the WS-AP3710 have four LED indicators, shown in Figure 1-4 below. The LEDs
provide status information, described in Table 1-2, on the current state of the WS-AP3710. For
more information, see the Enterasys Wireless Convergence Software User Guide.

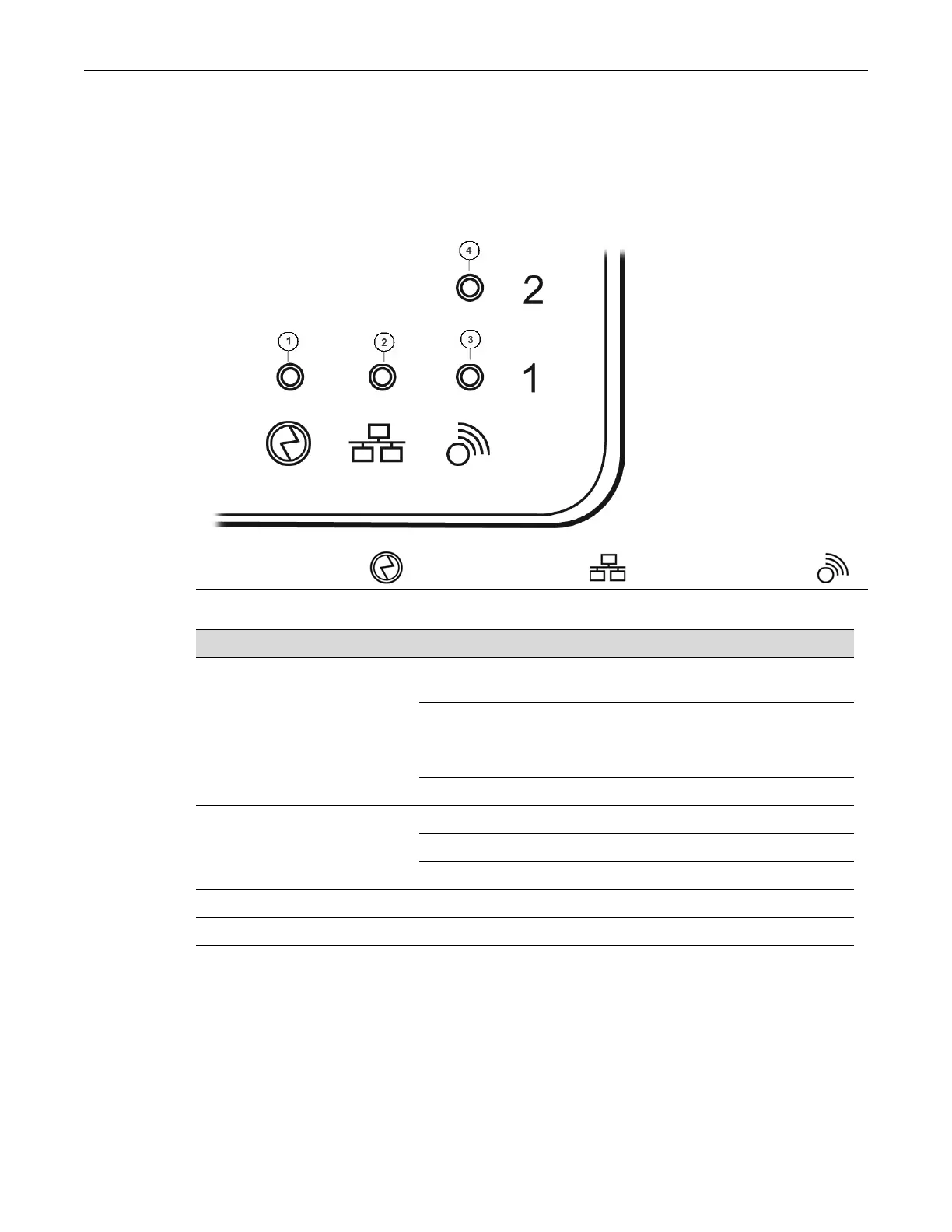

Figure 1-4 WS-AP3710 LEDs (Front, lower right)
Identifies Power
Indicator LED
Identifes LAN
Indicator LED
Identifies Radio
Indicator LEDs
Table 1-2 WS-AP3710 LED Indications
LED Status Description
1 (AP status) On Green Indicates the WS-AP3710 is working
normally.
Flashing Green Indicates:
• running a self test
• loading software program
On Red Indicates a CPU/system failure.
2 (Ethernet link state) On Green Indicates a valid 100Mbps Ethernet link.
On Blue Indicates a valid 1Gbps Ethernet link.
Off Indicates the link is down.
3 (Radio 1 status) On Green Indicates Radio 1 is enabled.
4 (Radio 2 status) On Green Indicates Radio 2 is enabled.
