Enterasys Wireless AP3710/AP3725 Installation Guide 1-7
WS-AP3725 Overview
The WS-AP3725 is available in two models:
WS-AP3725i contains eight internal single-band antennas, with six single-band antennas as in
the WS-AP3710i, and two additional dual band 2.4/5GHz antennas for radio 3.
WS-AP3725e contains six external RSMA connectors: three are shared using a diplexer
between radio 1 and radio 2; three are directly connected (no diplexer) to radio 3
Radio 3 is used for concurrent dual band interference detection, wireless intrusion
detection/prevention and wireless capture.
Figure 1-5 on page 1-7 shows the front view of the WS-AP3725i and Figure 1-6 on page 1-8 shows
the front view of the WS-AP3725e. Both figures also show the location of the LAN port, console
port, and external power supply connector.
Figure 1-7 on page 1-9 shows the back view of the WS-AP3725. Although the figure shows the
WS-AP3725e model, the back panel is the same for both models.
Figure 1-8 on page 1-10 illustrates the WS-AP3725 LEDs.

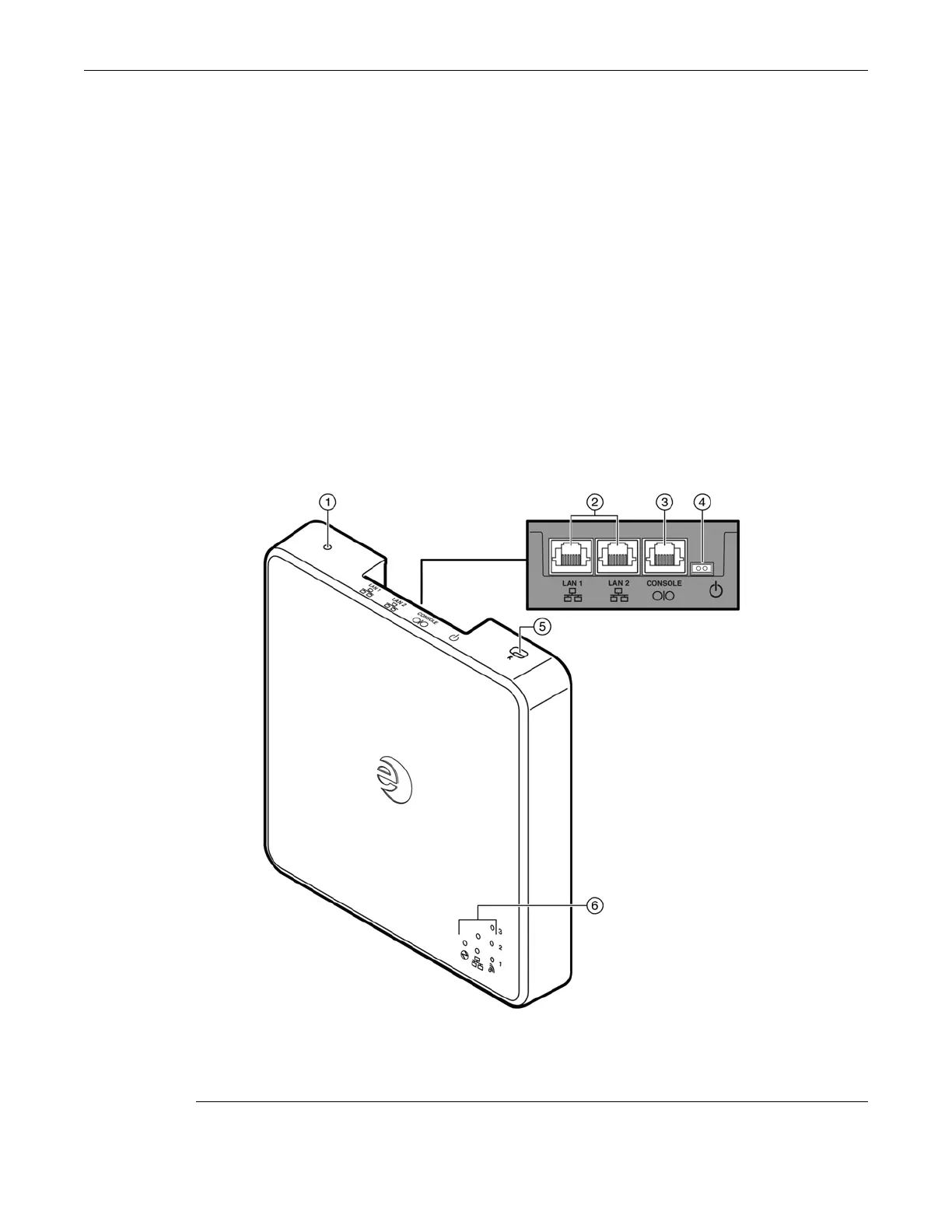

Figure 1-5 Enterasys Wireless AP3725i Front View
1 Reset switch 4 External power supply port
2 LAN ports 5 Slot for Kensington lock
3 Console port 6 LEDs (See Figure 1-8 on page 1-10 for details)
