Enterasys WS-AP3710i User Manual

1-10 WS-AP3725 Overview
WS-AP3725 LED Indicators
Both models of the WS-AP3725 have six LED indicators, as shown in Figure 1-8 below. The LEDs
provide status information, described in Table 1-3, on the current state of the WS-AP3725. For
more information, see the Enterasys Wireless Convergence Software User Guide.

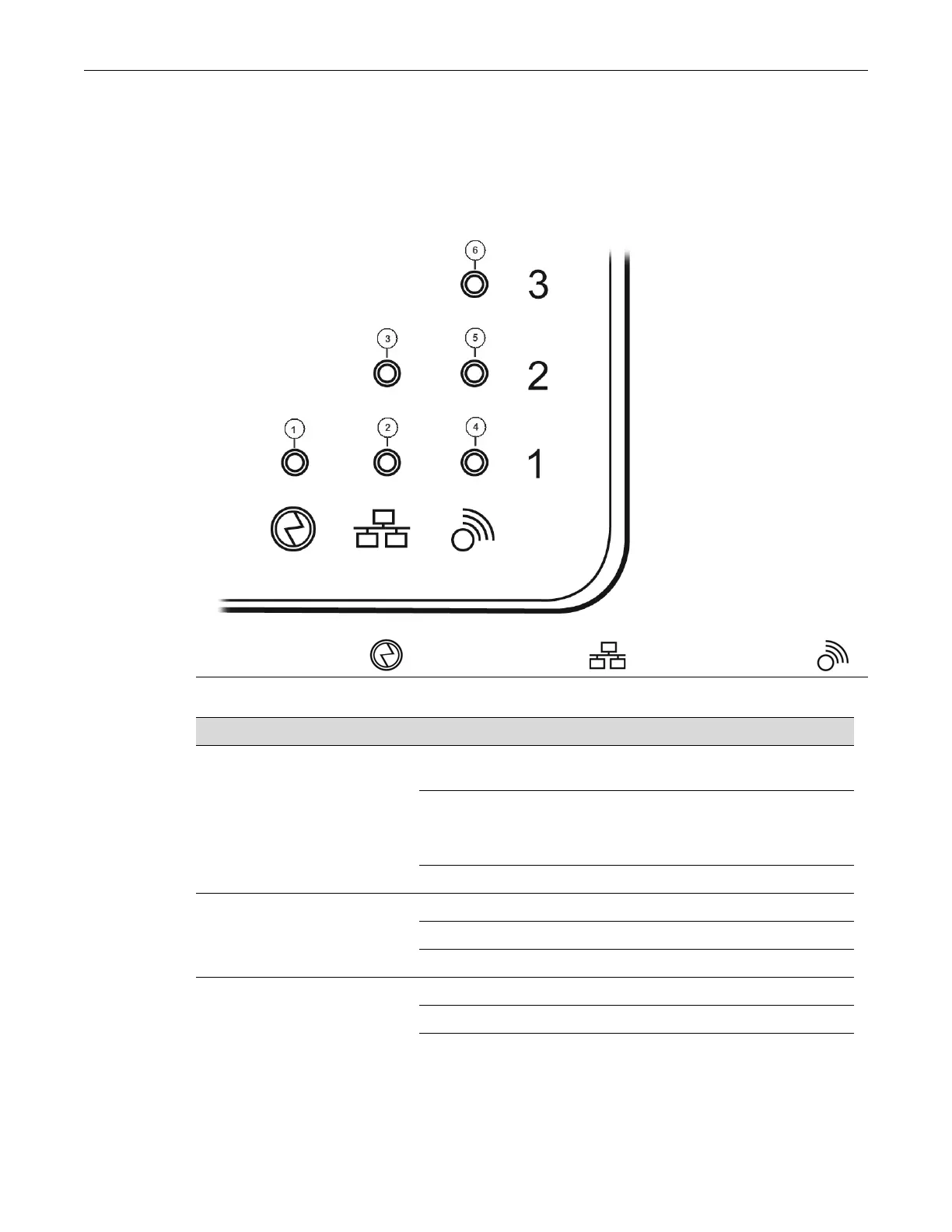

Figure 1-8 WS-AP3725 LEDs (Front, lower right)
Identifies power
Indicator LED
Identifies LAN
Indicator LEDs
Identifies Radio
Indicator LEDs
Table 1-3 WS-AP3725 LED Indications
LED Status Description
1 (AP status) On Green Indicates the WS-AP3710 is working
normally.
Flashing Green Indicates:
• running a self test
• loading software program
On Red Indicates a CPU/system failure.
2 (Ethernet 1 link state) On Green Indicates a valid 100Mbps Ethernet link.
On Blue Indicates a valid 1Gbps Ethernet link.
Off Indicates the link is down.
3 (Ethernet 2 link state) On Green Indicates a valid 100Mbps Ethernet link.
On Blue Indicates a valid 1Gbps Ethernet link.
Off Indicates the link is down.
