Access Point Installation Procedures
2-2 Installation
Access Point Installation Procedures
These procedures describe how to attach the AP3710/AP3725 to a drop ceiling (flat or protruded),
how to mount the AP to a wall, and how to mount the AP on an existing AP mount plate or a
junction box.
Mounting the AP3710/AP3725 to a Drop Ceiling
To mount the AP to a drop ceiling, you need the separately orderable T-bar rail mount kit
(WS-MB3700-01). T-bar rail clamps can be used to mount APs on flat or protruded drop ceilings.
To attach the AP3710/AP3725 to a drop ceiling:
1. Attach the first of the two T-bar rail clamps (it doesn’t matter which) to the universal mount
bracket that ships with the access point. Place the clamp against the top of the plate so that its
two screw holes match up to the topmost pair of countersink holes, and screw in the provided
screws from underneath the mounting bracket as shown in Figure 2-1.

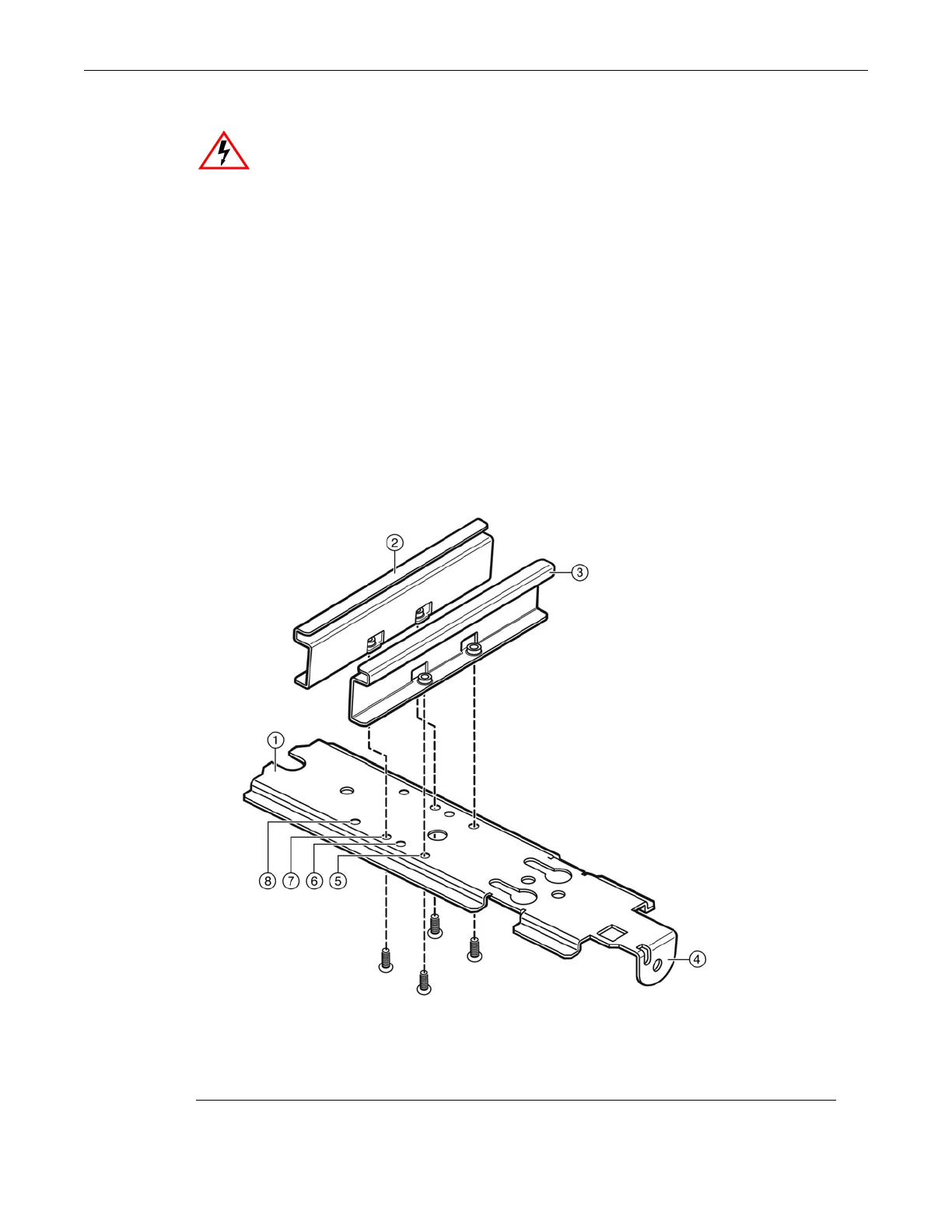

Figure 2-1 Mounting Bracket and T-bar Rail Clamp
Electrical Hazard: This product should be installed and serviced by a qualified licensed technician,
electrician, or electrical maintenance person familiar with its operation and the hazards involved.
1 Mounting Bracket 5 Top Pair Countersink Holes
2 T-bar Rail Clamp 2 6 Countersink Hole Pair for 9/16” Rail
3 T-bar Rail Clamp 1 7 Countersink Hole Pair for 15/16” Rail
4 Locking Tab 8 Countersink Hole Pair for 1.5” Rail
