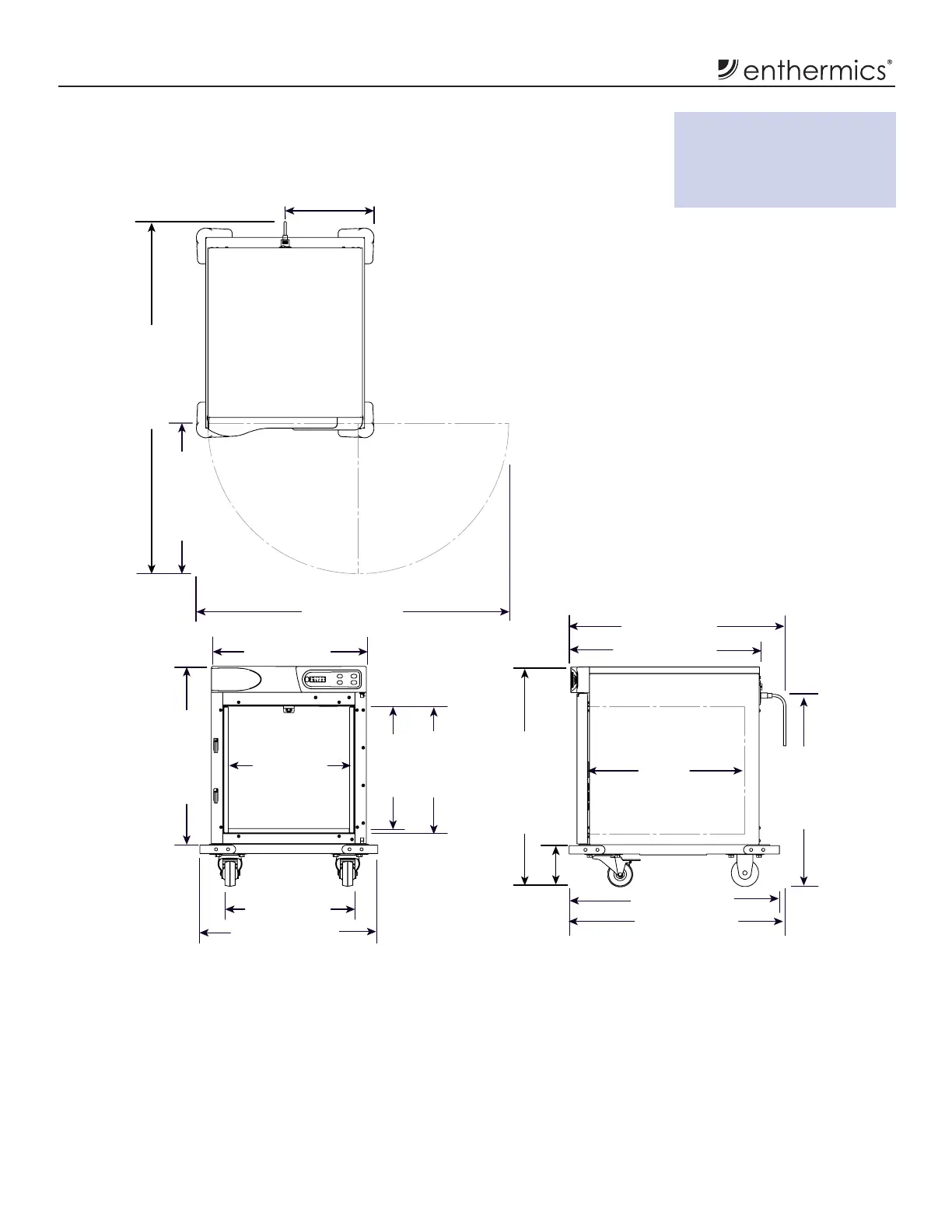

Dimension Drawings
DC250 with optional bumpers and casters
18.5" (470mm)
21.2" (539mm)
15.5" (394mm)
CAVITY
14.5" (369mm)
INSERT
15.1" (385mm)
CAVITY
14.6" (372mm)
INSERT
18.6" (472mm)
CAVITY
22.8" (580mm)
26.3" (667mm)
5.0" (128mm)
CASTER HEIGHT
10.6" (270mm)
IEC Cord Inlet
18.0" (457mm)
42.2" (1071mm)
37.4" (949mm)
21.3" (540mm)
25.1" (631mm)
CORD LENGTH: 6 ft (1.83m) (est.)
22.8
" (579mm)
IEC Cord Inlet
25.7" (653mm)
25.9" (657mm)
#5017546 (white epoxy coated) – 3" (76mm) casters (2 rigid, 2 swivel with brake)
#5017548 (stainless steel) – 3" (76mm) casters (2 rigid, 2 swivel with brake)
Clearance requirements:
3" (76mm) from rear
1" (25mm) from top and sides
3/4" (19mm) from bottom
