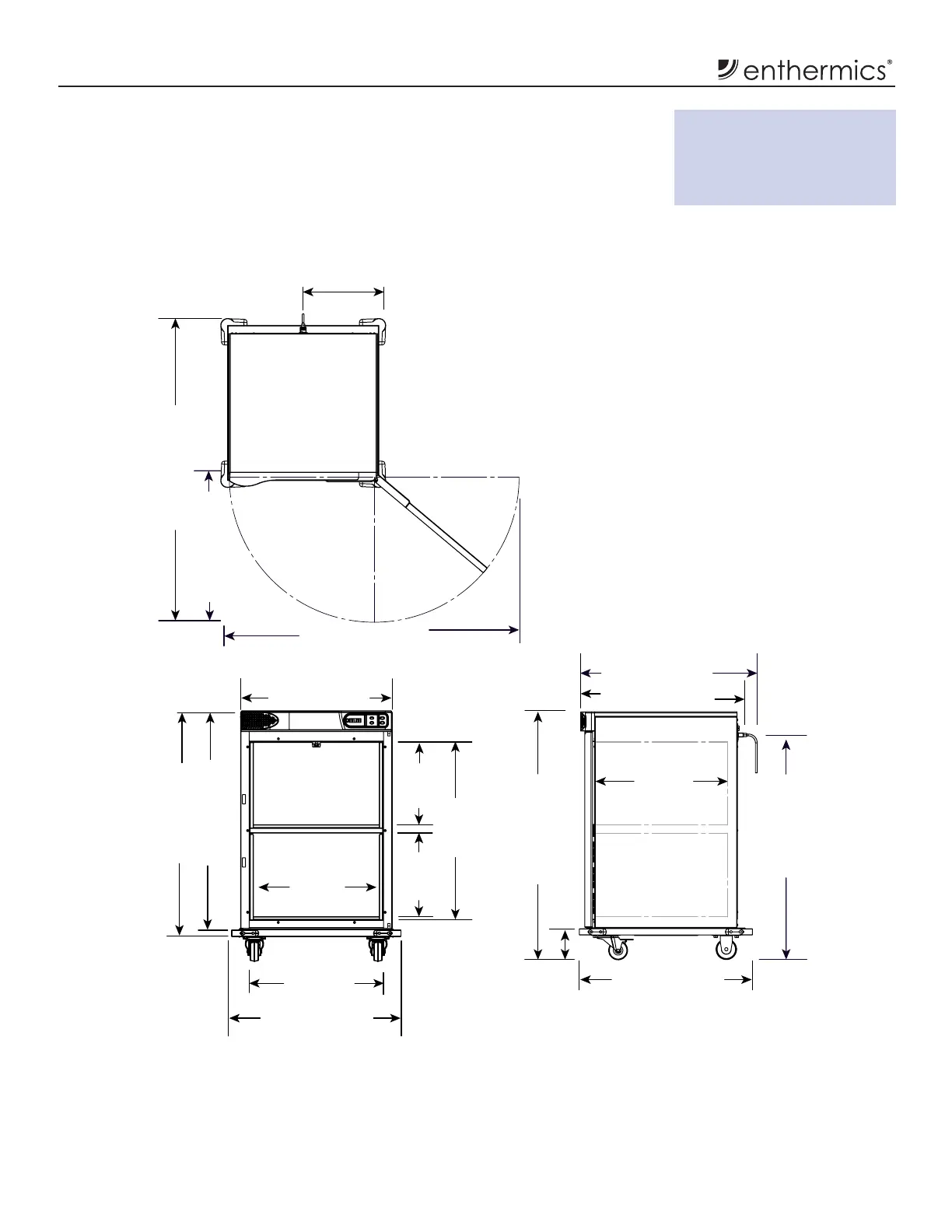

Dimension Drawings
DC750 with optional bumpers and casters
13.4" (340mm)
IEC Cord Inlet
27.4" (695mm)
39.3" (997mm)
34.3" (871mm)
35.5" (901mm)
21.0" (533mm)
CAVITY
19.9" (506mm)
INSERT
24.0" (610mm)
28.1" (715mm)
CAVITY
13.1" (333mm)
INSERT
13.2" (336mm)
INSERT
5.0" (127mm)
26.8" (679mm)
23.5" (596mm)
49.2" (1251mm)
48.3" (1228mm)
Cord length: 6 ft (1.83m) (est.)
35.6
" (903mm)
IEC Cord Inlet
25.1" (637mm)
28.0" (712mm)
21.0" (533mm)
CAVITY
3" (76mm) from rear
1" (25mm) from top and sides
3/4" (19mm) from bottom
#5017547 (white epoxy coated) – 3" (76mm) casters (2 rigid, 2 swivel with brake)
#5017549 (stainless steel) – 3" (76mm) casters (2 rigid, 2 swivel with brake)
