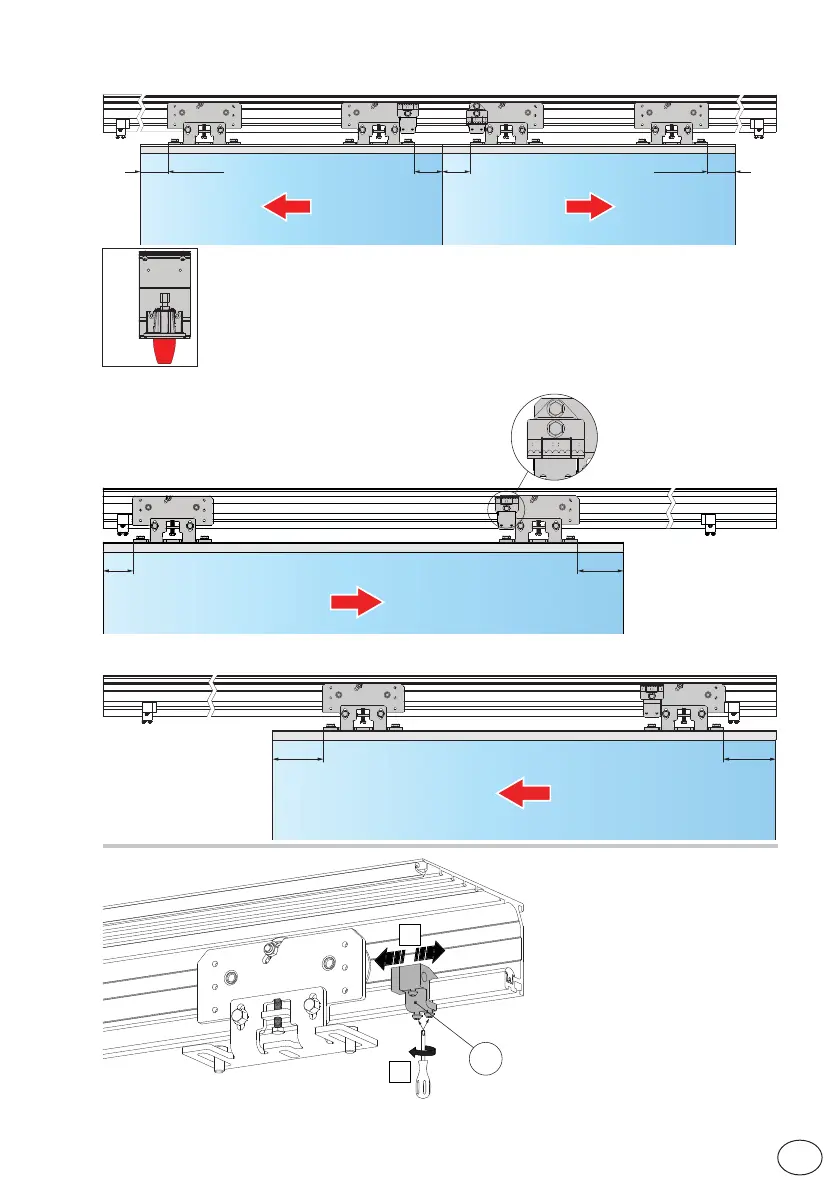

Place the end stops (16) on the
opening and closing positions.
For the 2 wing automations, a
third end stop is provided which
must be placed near the end of
the box which is used as a stop for
the cover support.
*se
*if
*si
*ob
*si
*se
Automation with one door wing with right-hand
opening
Automation with one door wing with left-hand opening
Automation with two door wings
60 (100*)
60 (100*)
60 60
100100
16
1
2
