Entrematic Ditec DAS200HD - Main Components

7
IP2266EN
EN

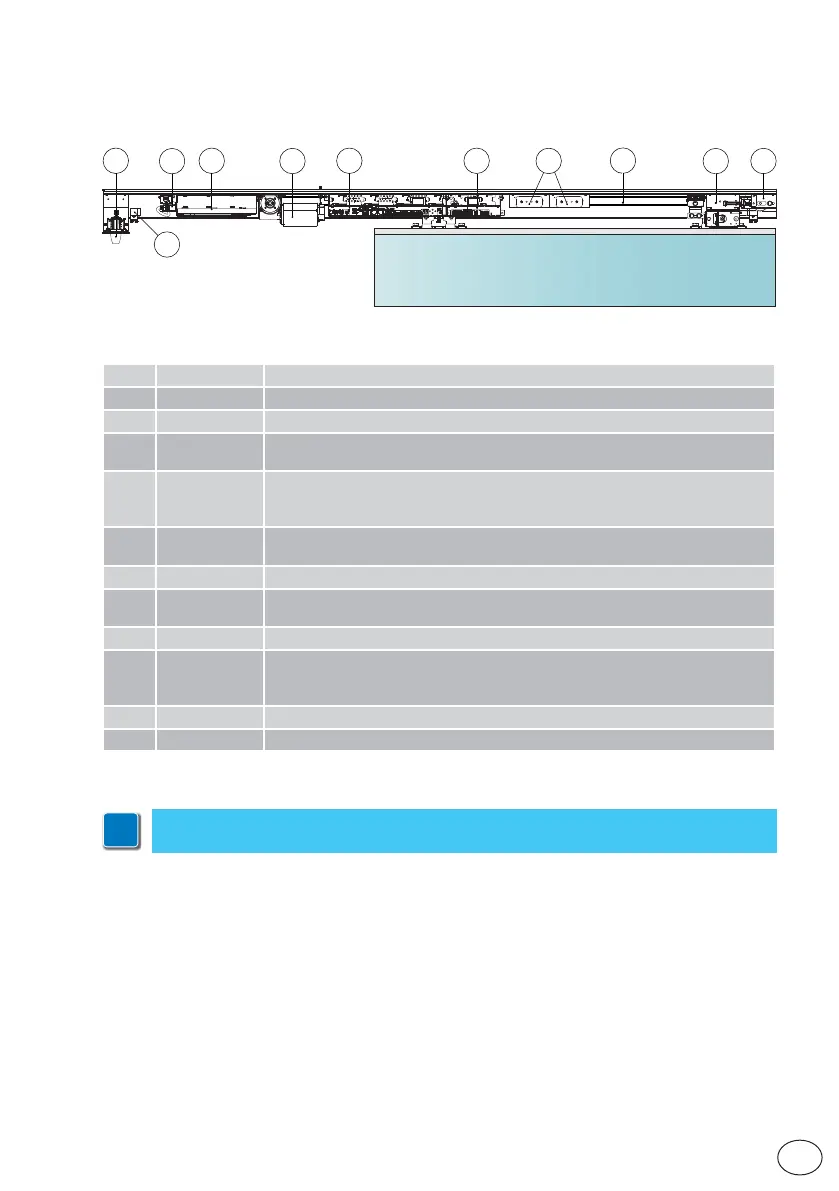

4. Main components
i
NB: the given operating and performance features can only be guaranteed with the
use of DITEC Entrematic accessories and safety devices.
Ref. Code Description
6 DASLOKSB Built-in manual release device (optional)
7- Mains power supply
8
1DAS20AL
1DAS20HAL
75W power supply unit (PS)
150W power supply unit (PS)
9
1DAS20MR
1DAS20HMR
1DAS20RGMR
DAS200 gearmotor
DAS200HD gearmotor
DAS200RG gearmotor
10
1DAS20QE
1DAS20RGQE
DAS200-DAS200HD-DAS200RF (MCU) control panel
DAS200RG control panel (MCU-ER)
11 DAS902MP DAS902MP plus module
12
DAS901BAT1
DAS902BAT2
12V batteries
24V batteries
13 DAS802B50 Drive belt
14
DAS802LOK
DAS802LOKA
DAS802LOKB
Standard lock. Locked with power - LD
Anti-panic lock. Locked without power - LDP
Bi-stable lock-LDB
15 - Belt transmission
16 - Mechanical stops
7
8
9
12
10 11
13
14
16
6
15
