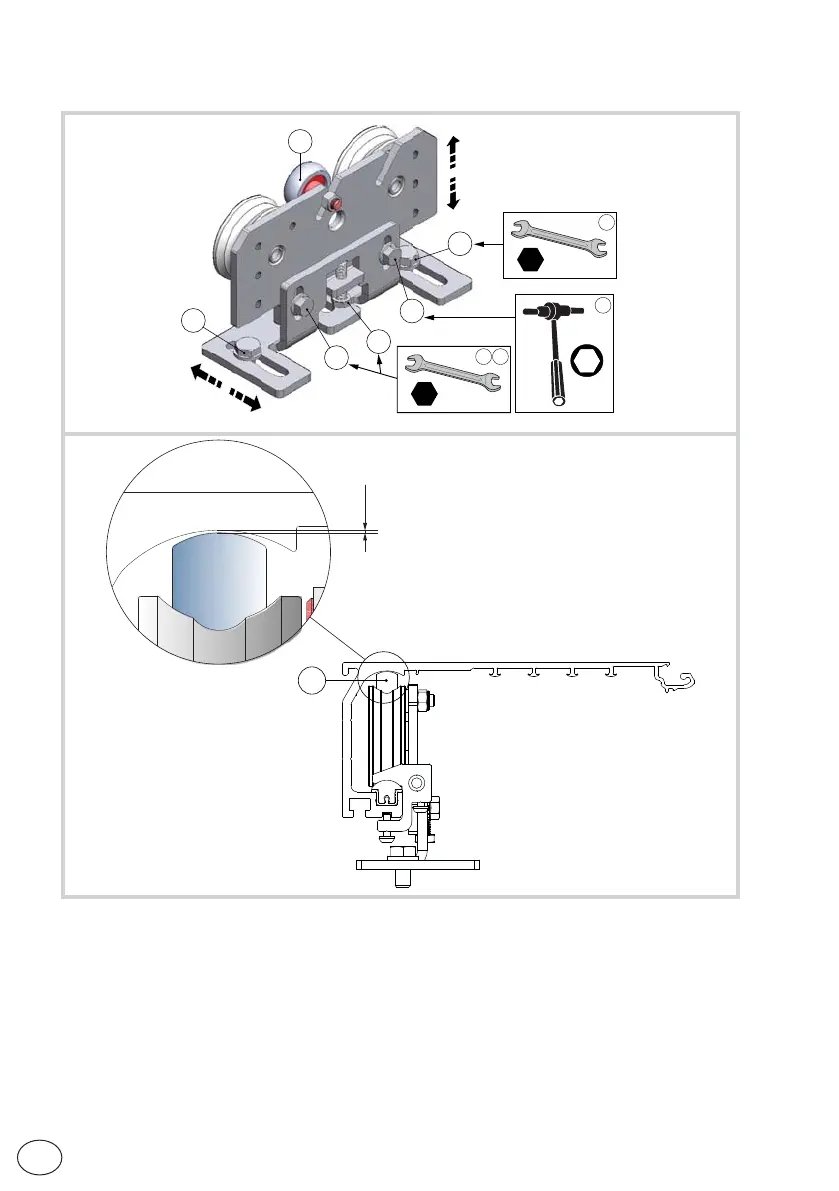

Make sure that the central wheel [D] is adjusted as illustrated in the picture.
Fix the door wing to the carriage with screws (A).
The door wing can be adjusted as shown in the figure.
• Loosen the screws [B] and adjust the height by turning the screws [C];
• Adjust the side position of the door wing by turning the screws [A];
• Move the door wings manually and make sure they move smoothly and freely and that all
the wheels rest on the guide.
WARNING: for all-glass door wings without seals, leave a gap of at least 10 mm in the closed position
to avoid contact between the glass sheets.
7.1 Installing and adjusting the door wings
D
C
B
B
A
B
A
A
+/- 8
+/- 19
10
13
CB
10
D
0,5
