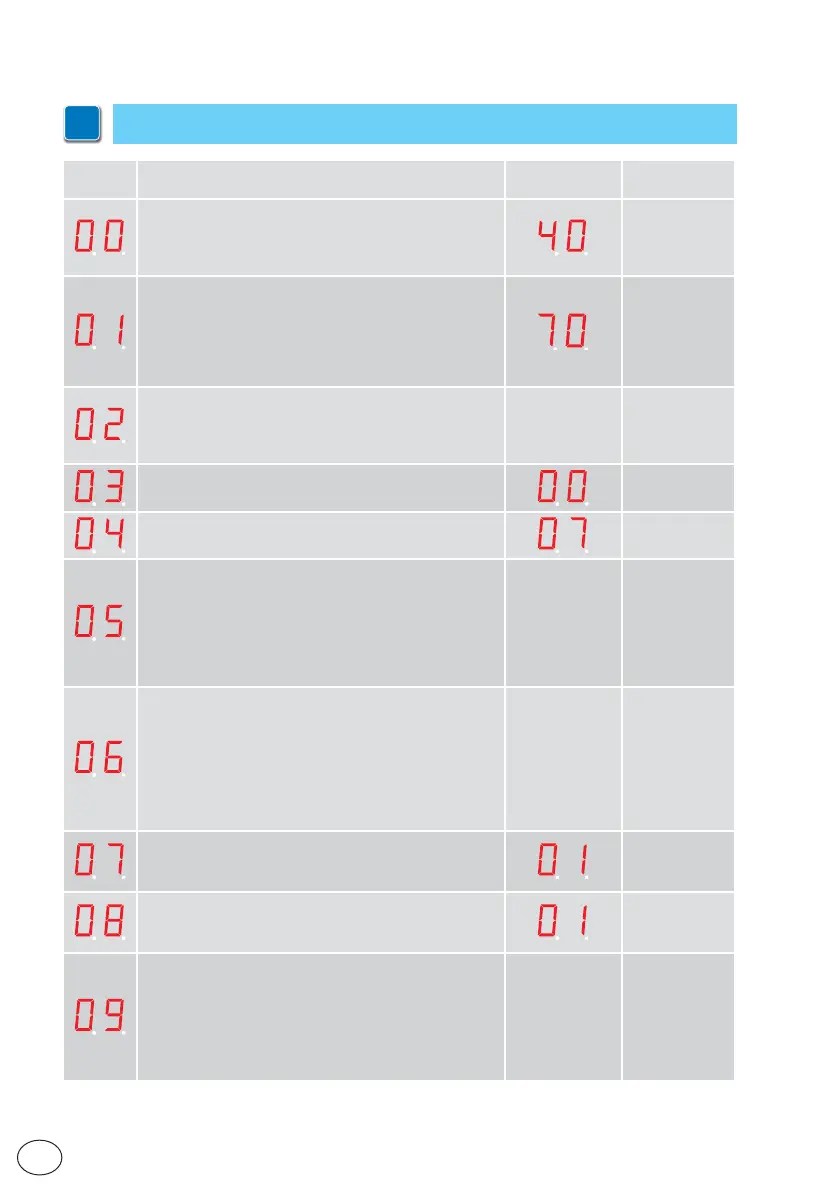

11.2 Main control board parameters
i
In the “INSTALLATION SETTINGS” column you can note the modified setting values.
Parameter Description
Factory
setting
Installation
setting
High Speed Opening (cm/s)
Sets the maximum opening speed.
DAS200 (10÷70, 10= 10cm/s; 70= 65cm/s).
DAS200HD/RF/RG (10÷70cm/s).
Low speed
(05÷70, 05= 5cm/s; 69= 69cm/s; 70= automatic)
The low speed is self adjusting to optimal operation if this
parameter is set to max. Depending on authority or instal-
lation requirements the low speed, distance opening and/
or closing can be further reduced.
High Speed Closing (cm/s)
Sets the maximum closing speed.
DAS200 (10÷70, 10= 10cm/s; 70= 65cm/s).
DAS200HD/RF/RG (10÷70cm/s).
AUTOMATIC
Hold Open Time (00÷60s)
The general hold open time for inner and outer impulses.
Key Hold Open Time (00÷60s)
Hold open time for key impulse.
Lock Configuration (main control) (10÷12)
10= No lock.
11= Antipanic lock (locked with power – LDP).
12= Standard lock (locked without power – LD) and bi-stable
lock (LDB).
*NOTE: the bistable block is not automatically learned and
must be selected 12.
AUTOMATIC*
Lock release (00÷01)
00= Off
01= On
If“LockRelease”is On the door will apply force in the closing
direction when the lock is un locking.This is made to prevent
a lock from being stuck in locked position when opening.
*NOTE: set 01 if using bistable lock.
*NOTE: on DAS200RG this parameter is set to 01.
AUTOMATIC*
Presence Impulse 1 Configuration (00÷01)
00 = N.O.
01= N.C.
Presence Impulse 2 Configuration (00÷01)
00= N.O.
01= N.C.
Presence Impulse Monitoring (00÷02)
00= No monitoring of precense impulse.
01= Set to “01” if one Presence impulse sensor shall be
monitored (if only one sensor is used this sensor has
to be connected to terminal 9, Presence impulse 1).
02= Set to“02” if two Presence impulse sensors shall be
monitored.
TO BE SET
