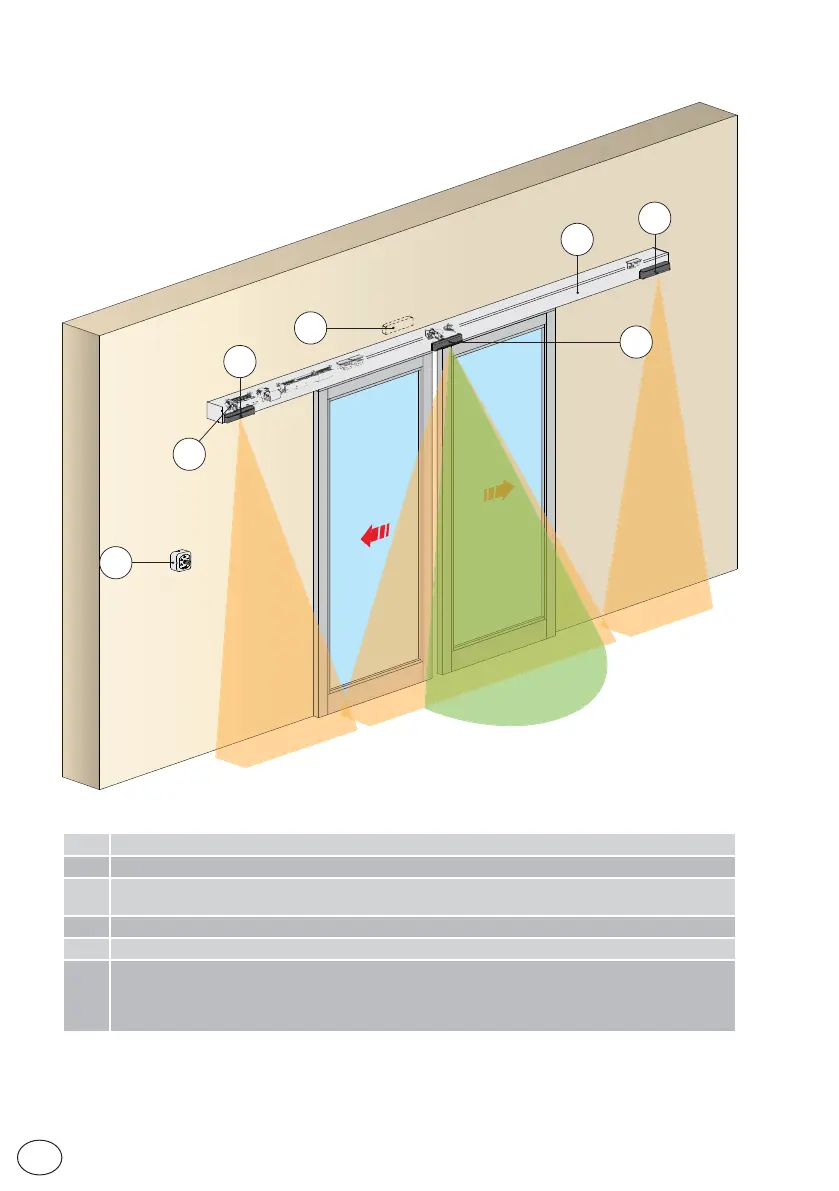

3. Standard installation
Ref. Description
1 Automation for sliding doors
2
3
Combined opening and safe closing sensor
4 Safe opening sensor
5 Safety photocell
A Connect the power supply cable to a type-approved omnipolar switch with category III insulation and
a contact opening distance of at least 3 mm.
The connections to the mains and low voltage wires must be made on an independent channel se-
parated from the connections to the command and safety devices (SELV = Safety Extra Low Voltage).
1
3
2
A
5
4
4
