Hardware Feature
◼ Pluggable screw terminal output connectors.
◼ Robust USB type-B connector.
◼ Wide (5-48VDC) operating voltage - power from the same source as your pixels.
◼ All ports feature ESD surge protection and resettable fuses to block external faults & electrical
noise propagation through control infrastructure.
◼ Forward-facing RGB LED status indicator.
◼ Surface mount or TS35 DIN mount (using provided DIN Clip accessory)

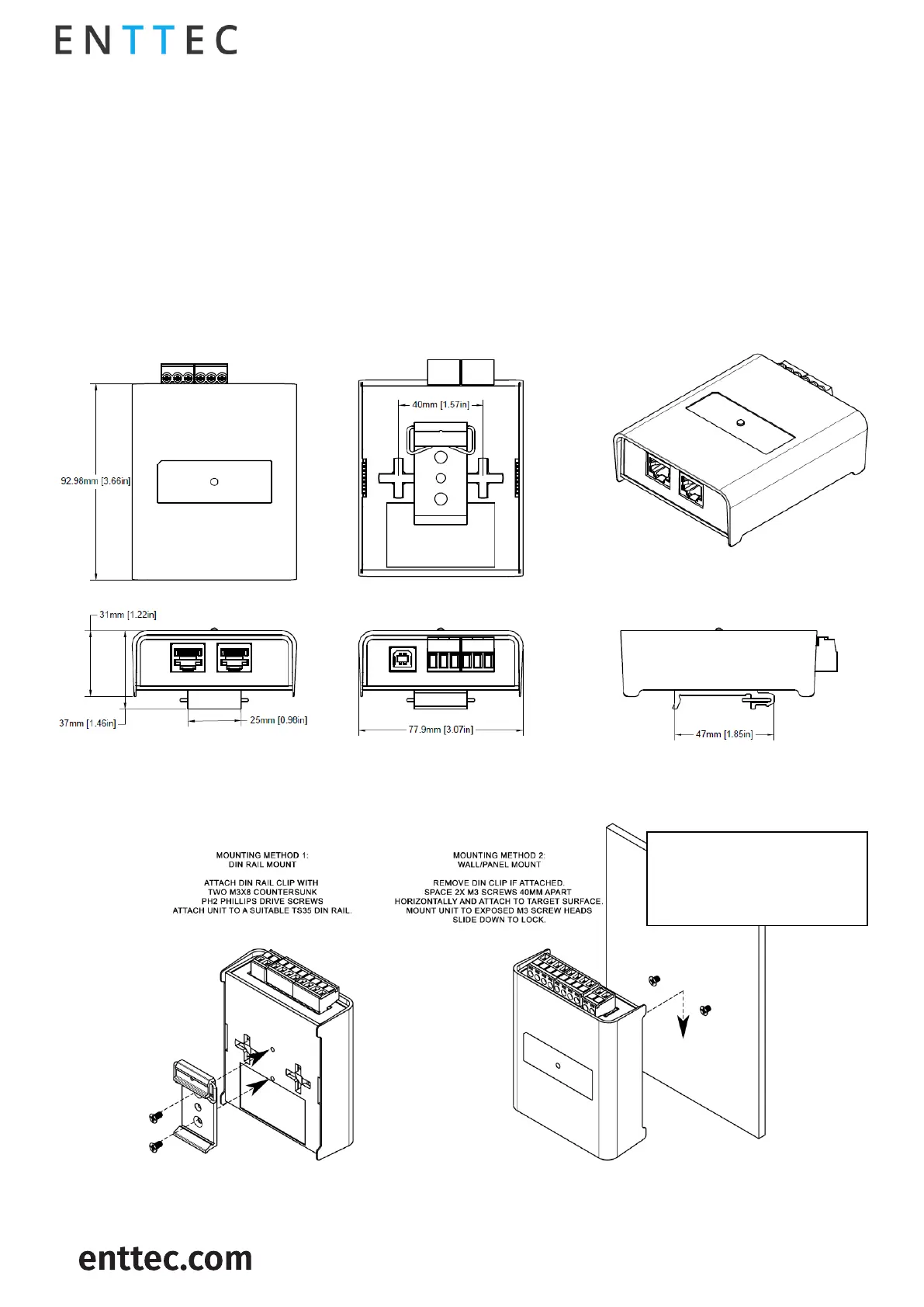

Physical Dimensions
Mounting Methods
The surface mount tabs have been designed to hold the weight of the DIN PIXIE only, excess force caused by cable strain can
cause damage.
Diagram for illustration purpose
only.
Please refer to render or physical
dimension within this document for
Din Pixie overview.
