Enttec Din Pixie - Wiring Diagrams; USB Mode Wiring; DMX Mode Wiring; Standalone Mode Wiring

DIN PIXIE (73539)
Visit the ENTTEC website for the latest version.
..

USER MANUAL
5 |
ID: 5935565
Document Updated: Nov 2023

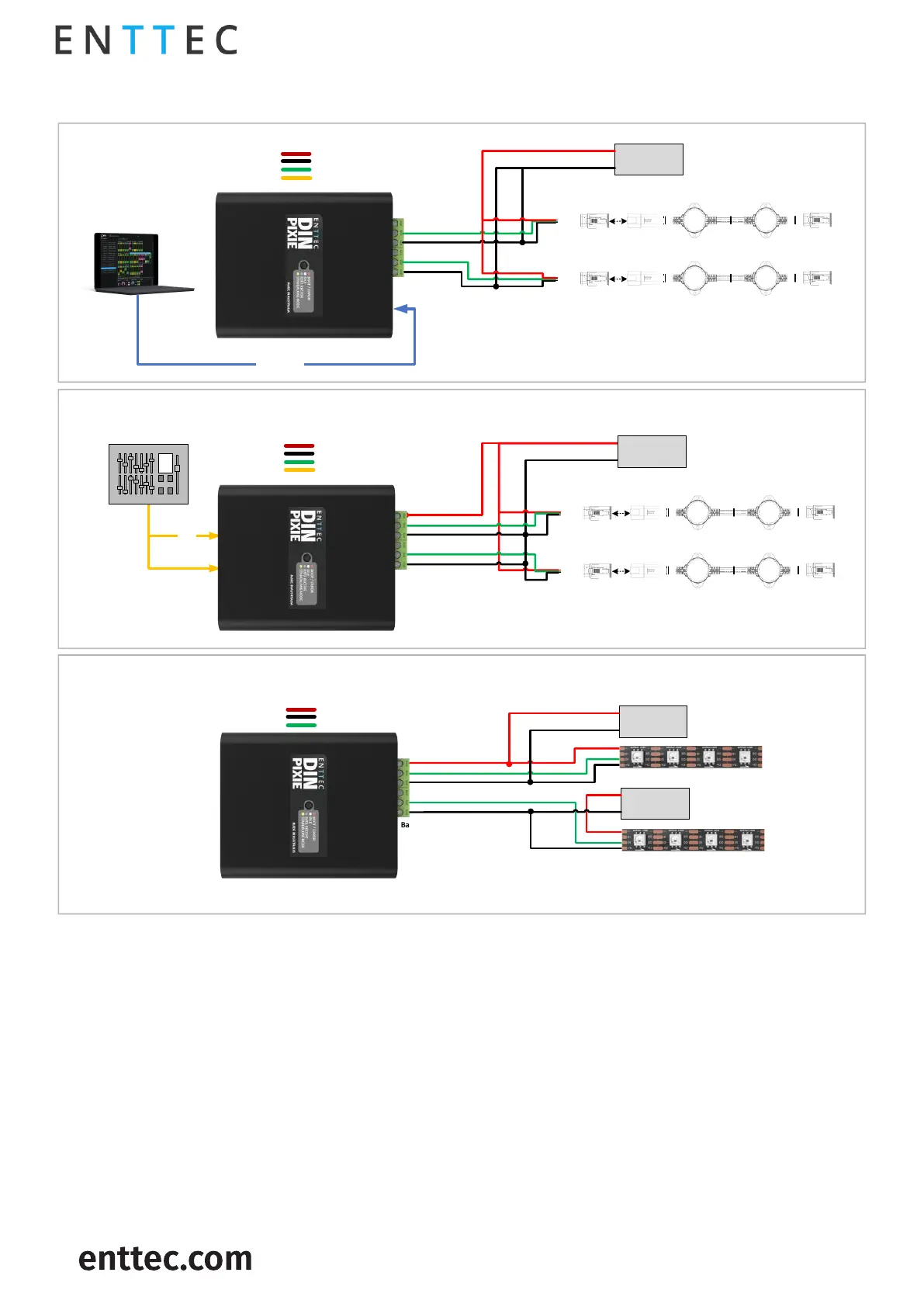

Wiring Diagrams
12V DC PSU &
Protection
Pixel strip
12V DC PSU &
Protection
Pixel strip
Din Pixie (SKU:73539)
Standalone Mode
Backward powered via Output 2
VCC
0V
Data
DMX source
RJ45
Din Pixie (SKU:73539)
DMX Mode
Smart PXL dot
Smart PXL dot
12V DC PSU &
Protection
Backward powered via Output 2
VCC
0V
Data
DMX
USB Type-B
EMU Software
(Art-Net Source)
Din Pixie (SKU:73539)
USB Mode
Smart PXL dot
Smart PXL dot
12V DC PSU &
Protection
VCC
0V
Data
DMX
Powered via USB
Note: Connection via USB port will only power DIN PIXIE.
